Johnson E8000 User Manual

• HR Handgirps
1). Plug in the heart rate wires to the wires from the Console Mast.
2). Attach the heart rate handgrips to the Console Mast by using four screws (Z25) and
washers (Z24).
• Accessory Tray
Attach the Accessory Tray to the positioned base of the accessory tray by using two
screws (Z22).
1110
JOHNSON ELLIPTICAL E8000JOHNSON ELLIPTICAL E8000
STEP 3 STEP 4

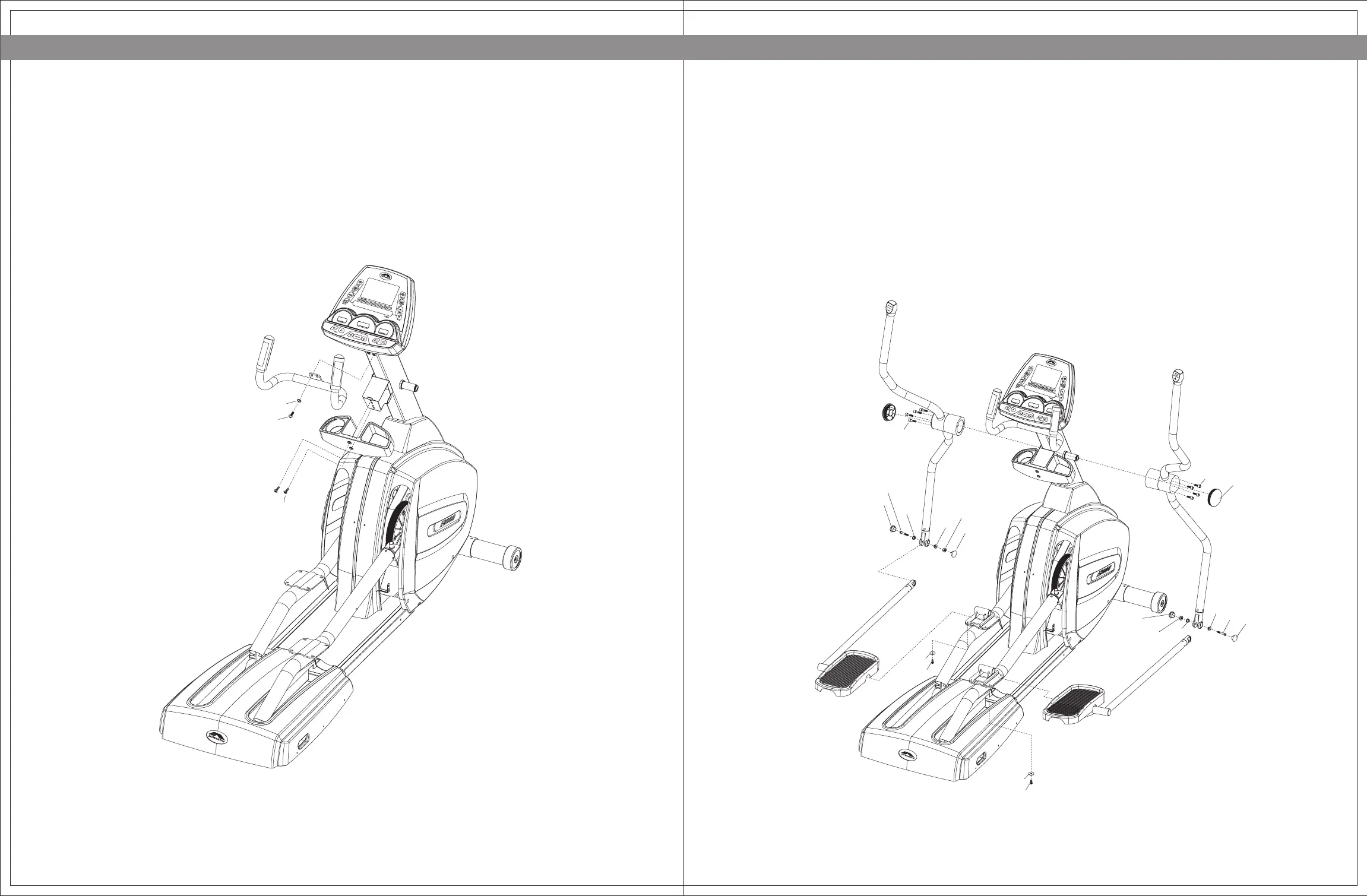

1). Attach the Dual-Action handrail (R) and (L) to the Console Mast using screws (Z18),
and place the handlebar caps around the handlebars.
2). Fasten the link arm(R) and (L) to the pedal arms using screws (Z01) and washers
(Z02).
3). Attach the Dual-Action handrails to the link arms using bolts (Z06), bushings (Z05),
and nylon nuts (Z07).
4). Align the cut-out inside the link arm caps (Z08) with the link arm mounting hole.
Apply pressure to the cap until it snaps into place.
Z22
Z25
Z24
Z18
Z18
G24
Z06
Z08
Z05
Z05
Z07
Z08
Z01
Z02
Z01
Z02
Z05
Z07
Z08
Z08
Z06
Z05
