COMPONENTS
1- Control panel
2- Air outlet
3- Wheels
4- Air intake
5- Filter
6- Connection for air discharge
7- Air intake
8- Handle
9- Plug housing
10- Power cable cover
11- Upper water drain with closing cap
12- Power supply
13- Lower water drain with closing cap
14- Remote control
15- Connector
16- Exhaust pipe
17- Air exhaust adapter
18- Window kit
19- Window kit locking screw
INSTALLATION
Choice of a place for installation

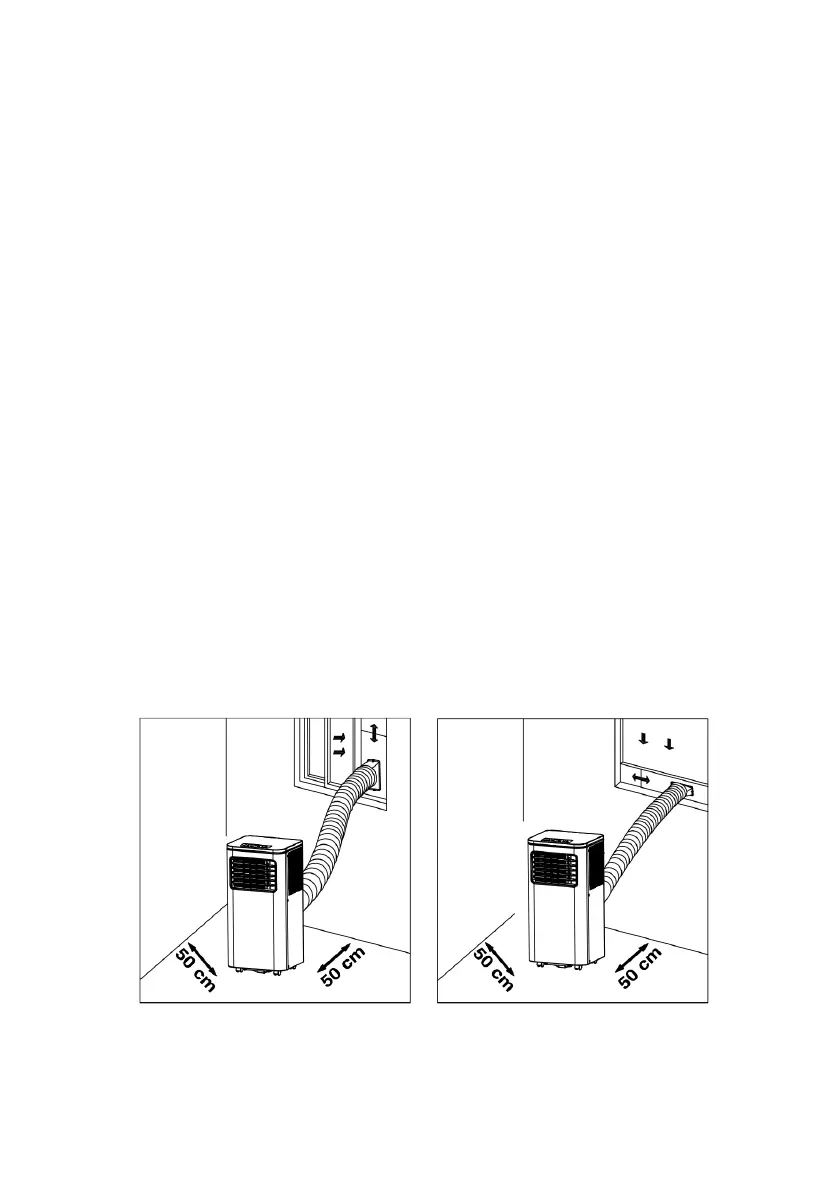

Place the portable air conditioner near a window, on an even and perfectly horizontal
floor.
Make sure that the air inlet (rear) and outlet openings are not obstructed.
Leave at least 50 cm of space on each side between the air conditioner and any obsta-
cles.
Installing the hot air expulsion hose
NOTE: the hot air expulsion pipe must lead to the outside for proper operation in coo-
ling.
However, it is not necessary in ventilation mode.
When operating in dehumidification mode it can be avoided, knowing that in this way,
