2.7 DOOR RIGHT-LEFT CHANGE
List of tools to be provided by the user
Cross screwdriver
Putty knife thin-blade screwdriver
5 / 16 socket and ratchet
Masking tape
Parts to be used for door reverse
SN Part Quantity Notes
1 Upper hinge 1
Pre-installed on
refrigerator, removed
and retained it when
changing the door
2
Upper hinge
cover
1
3
Decorative
cover
1
4
Door
self-locking
2
5 Middle hinge 1
Pre-installed on the
refrigerator and to be
used when changing
the door
6
Decorative
cover
1
7 Lower hinge 1
8 Levelling feet 1
9
Left upper
hinge
1
In the attached plastic
bag, take them out
for use when door is
reversed
10
Left upper
hinge cover
1
11
Left door
self-locking
2
12
Right plastic
cover
1

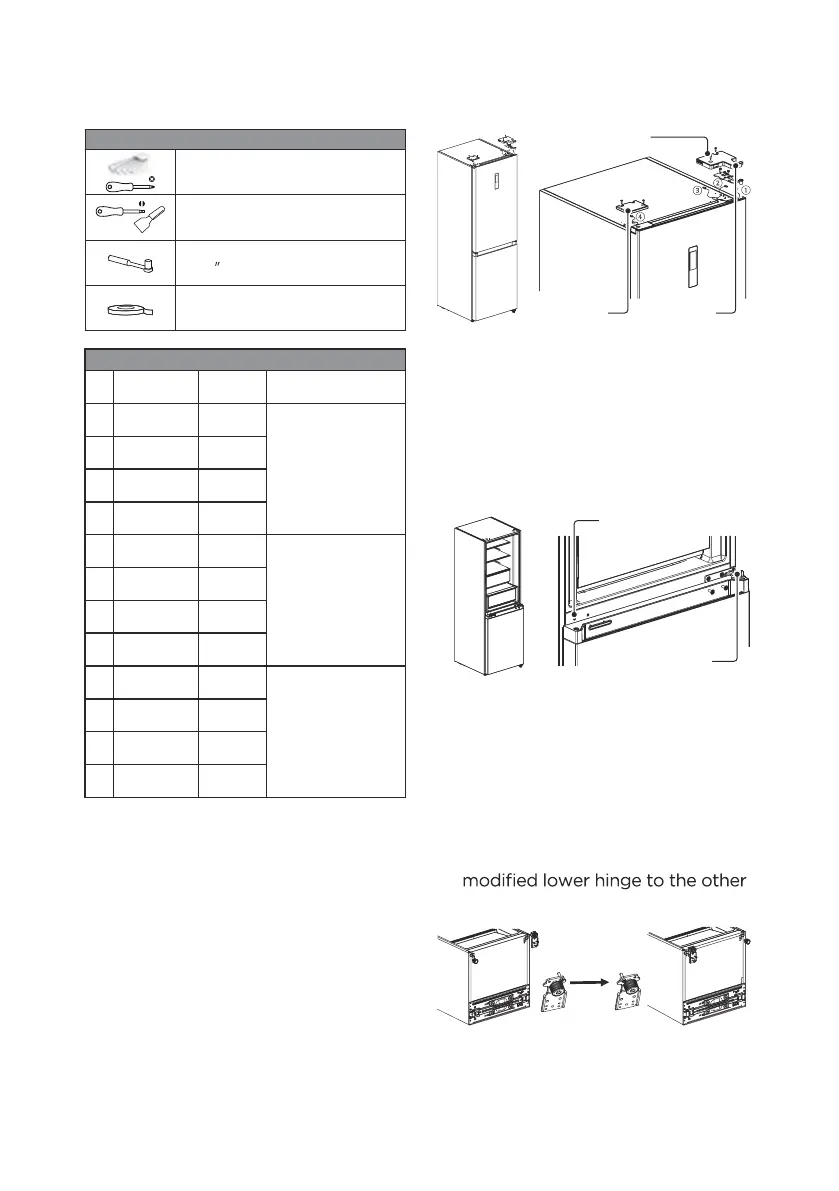

• Please power off this appliance
before conduct this operation
.
Remove all food from door
shelves.
• Remove the upper left hinge
cover decorative cover, upper
right hinge cover and upper right
hinge, and disconnect the right
signal line (signal line terminal 1, 2)
at the top of the box body
upper hinge cover
upper hinge
decorative
cover
• Remove the refrigerated door
body (be careful not to lose small
parts such as the shaft sleeve and
stop on the door);
Remove the middle hinge and
remove the decorative cover of
hinge hole on the other side.
decorative cover
middle hinge
• Remove the freezing door body
(be careful not to lose small parts
such as the shaft sleeve and stop
on the door).
Remove the hinge and adjust the
angle. Remove and install the
lower hinge shaft to the other
side of the hinge, and install the
side of the box.
