30
3
Electrical system
0.3 mm

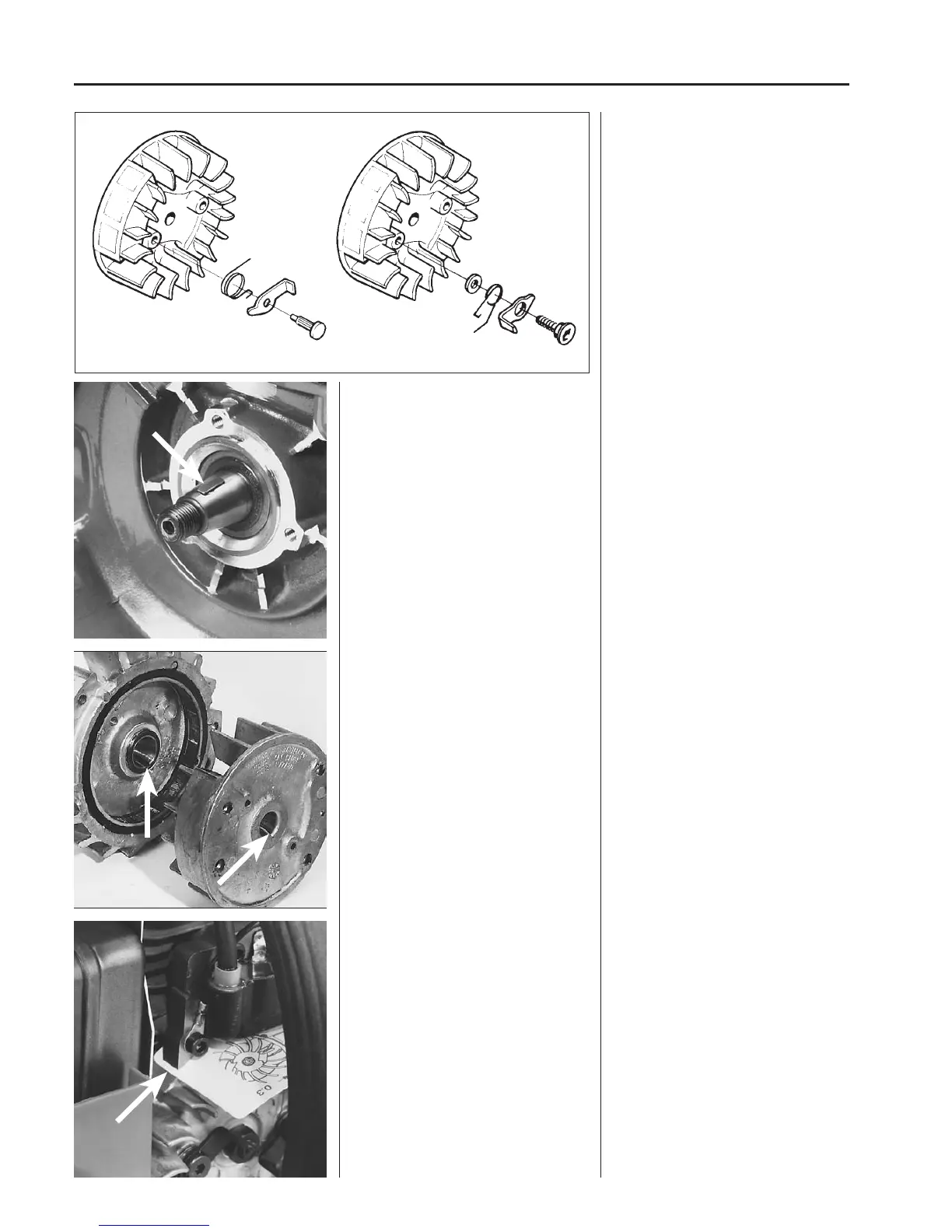

Assembly
Check that the keyway and key in the
crankshaft are undamaged.
Assembly
Check that the keyway and key in the
crankshaft are undamaged.
Fit a new key and make sure that it fits
correctly in the keyway.
Check that the keyway and the cast key
respectively in the flywheel are undam-
aged.
Fit the flywheel.
Check that the keyway and cast key
respectively in the flywheel are undam-
aged.
Fit the flywheel on the crankshaft and
check that the key and keyway are
correctly positioned before the flywheel
nut is tightened.
Tighten the nut to a torque of 25–35 Nm
Fit the ignition module.
Adjust the air gap (0.3 mm, .012")
Fit the other cables.
Fit the other parts in the reverse order to
dismantling.
Fit the ignition module
Adjust the air gap to the correct size
(0.3 mm, .012").
See also page 26.
Fit the other cables and make sure that
they are correctly positioned in cable
grooves etc. so that they cannot be
damaged.
Fit the other parts in the reverse order to
dismantling.
When fitting the starter pawls check the
following:
● Washer between flywheel and starter
pawls.
● The spring is not clenched.
● The starter pawls move freely.
● Use Locktite on the screw.
