100
8
504 90 00-02
A
B

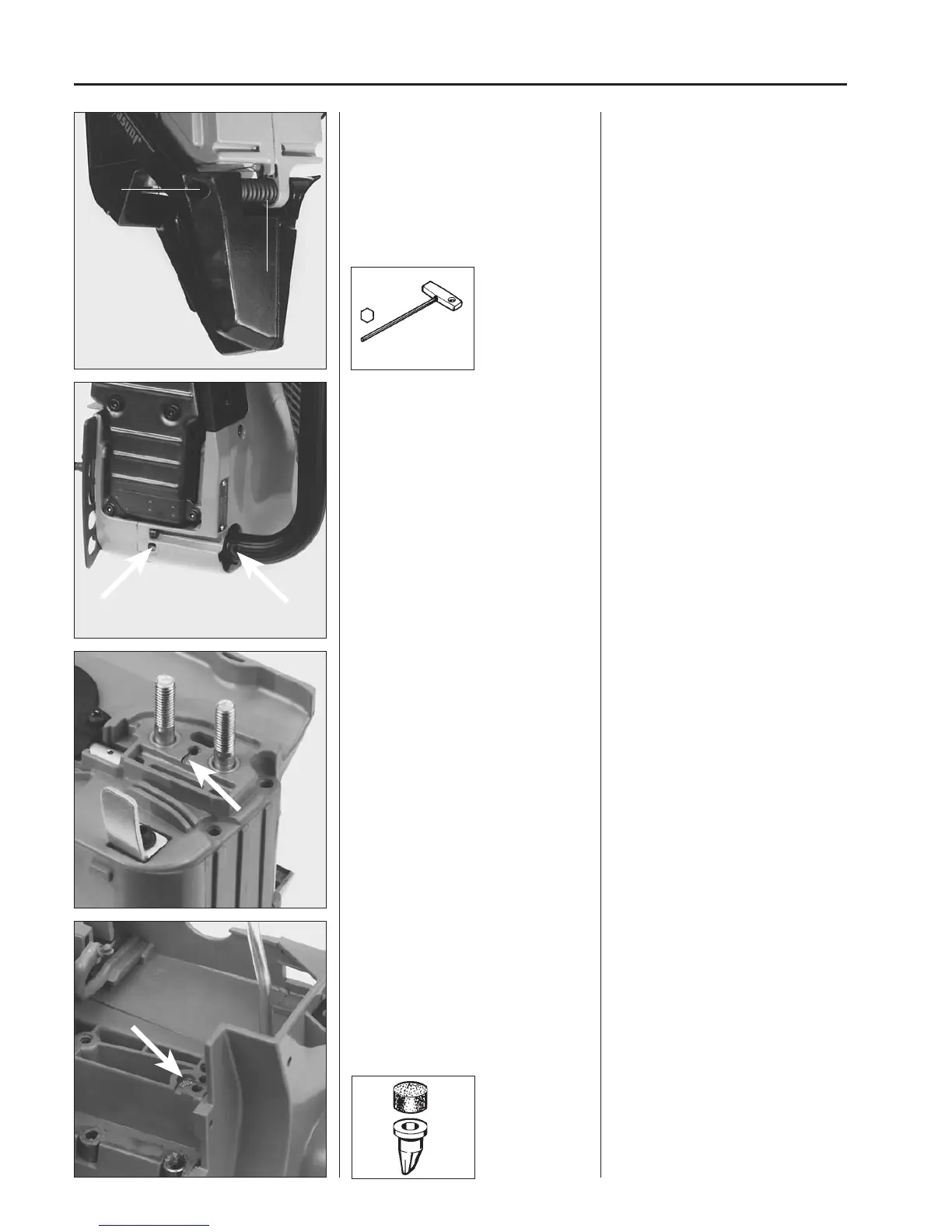

Remove the screw (A) and then release
the inner screw (B).
Release both stop screws, bend away the
handlebar, and pull out the vibration dam-
per.
Mod. 2036/2040
Tank unit (crankcase)
Check that the oil tank vent is not blocked.
This is designed via the thread for the
screw which holds the chain guide plate,
and a notch in the bar attachment.
Replace the fuel tank vent if it does not
function.
Drill a hole in the metal filter and pull it out
of the crankcase.
Replace the filter and non return valve at
the same time.
Dismantle the rear vibration damper by
means of first removing the outer screw
(A) and then enter the tool through the
spring and release the inner screw (B).
Hold tight the nut with a 10 mm U-key.
Use tool 504 90 00-02.
Fit a new vibration damper in the reverse
order to dismantling.
Crankshaft and crankcase
Dismantle the front vibration damper for
replacement by releasing both stop
screws.
Bend away the handlebar and pull out the
vibration damper.
Make sure when fitting the new damper
that it goes well down in the crankcase.
Mod. 2036/2040
Tank unit (crankcase)
Dismantle all parts of the chain saw so
that only the tank unit (crankcase)
remains.
Check with compressed air that the oil
tank vent is not blocked. (The oil pump
must be fitted.)
Pressure equalisation in the tank takes
place via the thread on the screw which
holds the chain guide plate. Make also
sure that the notch under the screw hole
is not filled with dirt.
The fuel tank vent consists of a sintered
filter and of a rubber non return valve.
In order to replace these parts it is
necessary to drill a hole (approx. 3 mm)
in the filter, after which it can be pulled out
by using a steel wire hook. Press in a new
filter in the tank unit.
Replace also the non return valve.
