Jonsered 2149 User Manual

24 – English

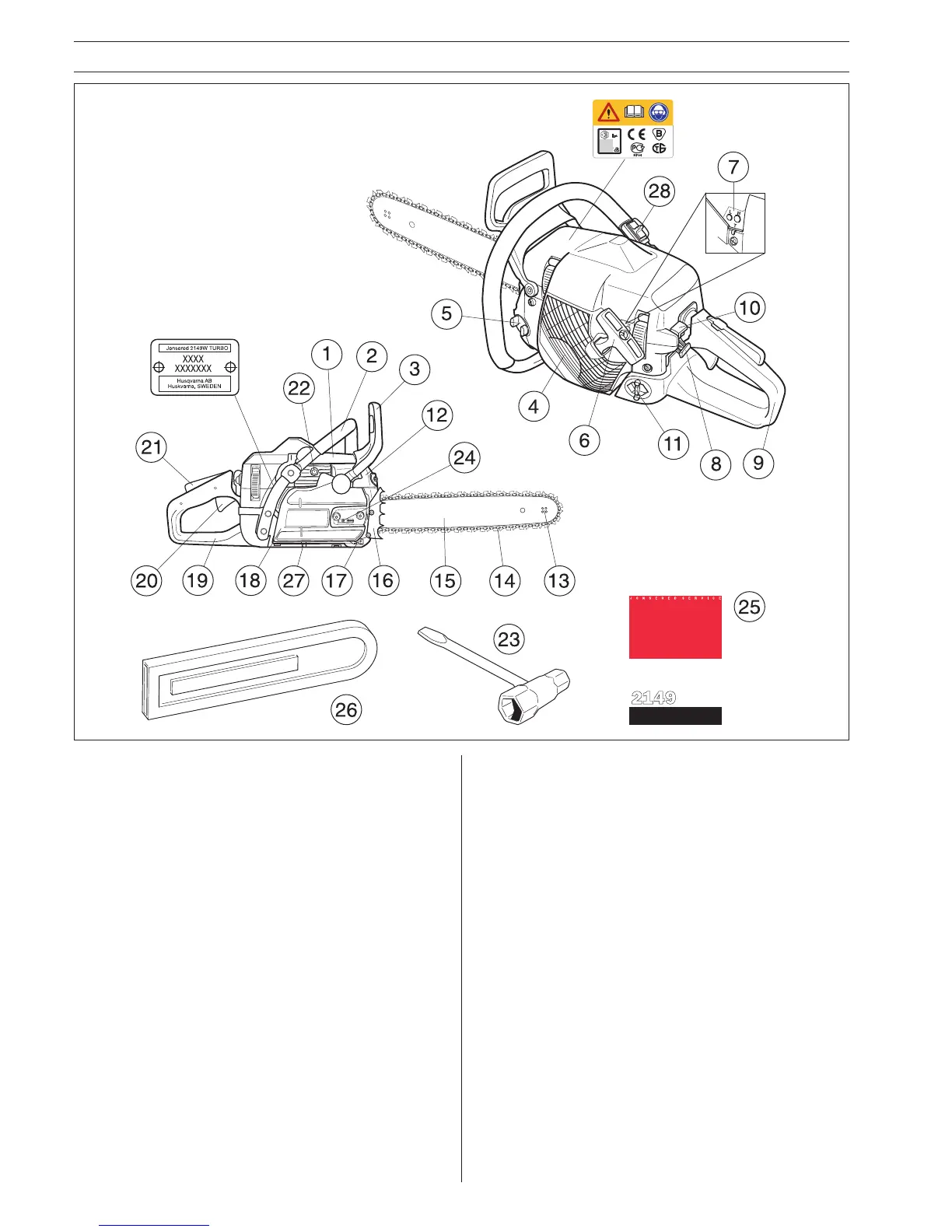

WHAT IS WHAT?
1. Cylinder cover.
2. Front handle.
3. Front hand guard.
4. Starter cover.
5. Chain oil tank.
6. Starter handle.
7. Adjuster screw, carburettor.
8. Choke control/Start throttle lock.
9. Rear handle.
10. Stop switch. Ignition on/off switch.
11. Fuel tank.
12. Muffler.
13. Bar tip sprocket.
14. Saw chain.
15. Saw bar.
What is what?
16. Bumper.
17. Chain catcher. Catches chain if it jumps or breaks.
18. Clutch cover.
19. Right hand guard. Protects right hand if chain breaks or
jumps.
20. Throttle control.
21. Throttle lock. Prevents accidental operation of throttle
control.
22. Decompression valve.
23. Combination spanner.
24. Chain tensioning screw.
25. Operator´s manual.
26. Bar guard.
27. Oil pump adjustment screw.
28. Switch for heated handles (2149W).

Jonsered 2149 Specifications

General

Engine displacement	49.4 cm³
Weight	5.1 kg
Bar length	40 cm (16 in)
Fuel tank volume	0.5 liters
Chain gauge	0.050"
Power output	2.4 kW
Chain pitch	0.325 inches
