Jonsered 2149 User Manual

English – 35

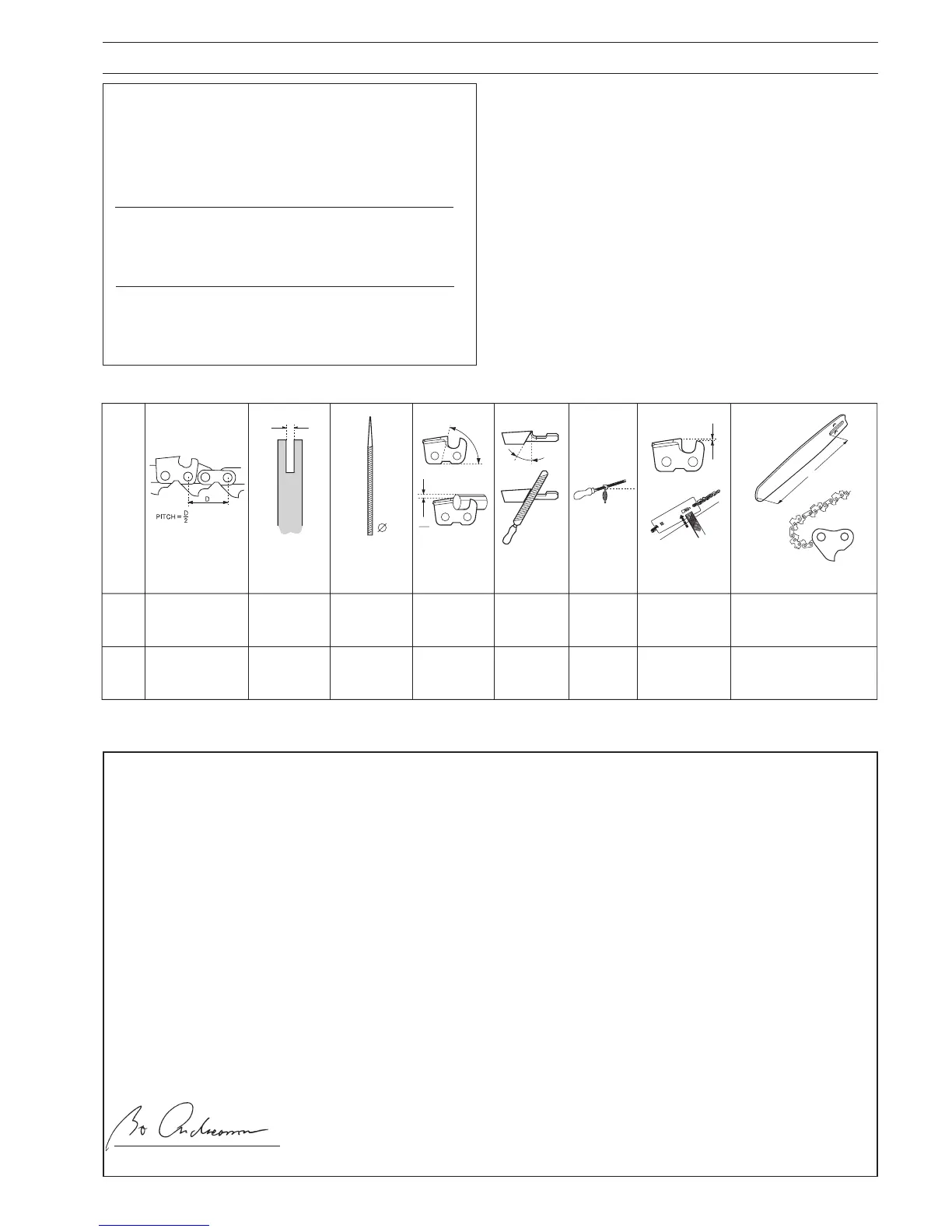

TECHNICAL DATA
Bar and chain combinations
The following combinations are CE approved.
Bar Chain
Length, Pitch, Max.
inches inches tip radius
13 0,325 10T Jonsered S30
15 0,325 10T Jonsered S30
16 0,325 10T Jonsered S30
18 0,325 10T Jonsered S30
20 0,325 10T Jonsered S30
13 0,325 10T Jonsered S25
15 0,325 10T Jonsered S25
16 0,325 10T Jonsered S25
18 0,325 10T Jonsered S25
20 0,325 12T Jonsered S25
1
5
L
Type Inch Inch/mm Inch/mm Degree Degree Degree Inch/mm Inch/cm: dl
S30 0,325" 0,050"/1,3 3/16" /4,8 85° 30° 10° 0,025"/0,65 13"/33:56 15"/38:64
16"/40:66 18"/45:72
20"/50:78
S25 0,325" 0,058"/1,5 3/16" /4,8 85° 30° 10° 0,025"/0,65 13"/33:56 15"/38:64
16"/40:66 18"/45:72
20"/50:78
EC-declaration of conformity (Applies to Europe only)
Jonsered, SE-561 82 Huskvarna, Sweden, tel: +46-36-146500, declares under sole responsibility that the chain saws Jonsered
2149 Turbo, 2149W Turbo, 2149 Turbo CAT, 2149W Turbo CAT from 2002's serial numbers and onwards (the year is clearly
stated in plain text on the type plate with subsequent serial number), are in conformity with the requirements of the COUNCIL'S
DIRECTIVES:
- of June 22, 1998 ”relating to machinery” 98/37/EC, annex IIA.
- of May 3, 1989 ”relating to electromagnetic compatibility” 89/336/EEC, and applicable supplements.
- of May 8, 2000 ”relating to the noise emissions in the environment” 2000/14/EC.
For information relating to noise emissions, see the chapter Technical data.
The following standards have been applied: EN292-2, CISPR 12:1997, EN608.
Notified body: 0404, SMP Svensk Maskinprovning AB, Fyrisborgsgatan 3, SE-754 50 Uppsala, Sweden, has carried out EC type
examination in accordance with the machinery directive's (98/37/EC) article 8, point 2c. The certificates for EC type examination in
accordance with annex VI, have the number: 404/99/653 - 2149 Turbo/2149W Turbo, 404/00/742 - 2149 Turbo CAT/2149W Turbo
CAT.
In addition, SMP, Svensk Maskinprovning AB, Fyrisborgsgatan 3, SE-754 50 Uppsala, Sweden, has certified conformity with
annex V of the Council's Directive of May 8, 2000 ”relating to the noise emissions in the environment” 2000/14/EC. The certificate
has the number: 01/161/023 - 2149 Turbo/2149W Turbo, 01/161/024 - 2149 Turbo CAT/2149W Turbo CAT.
The supplied chain saw conforms to the example that underwent EC type examination.
Huskvarna January 3, 2002
Bo Andréasson, Development manager

Jonsered 2149 Specifications

General

Engine displacement	49.4 cm³
Weight	5.1 kg
Bar length	40 cm (16 in)
Fuel tank volume	0.5 liters
Chain gauge	0.050"
Power output	2.4 kW
Chain pitch	0.325 inches
