Jonsered BC2126 Spare Parts

545103404
9/15/09
Replaces
545103404 - 9/11/08
Page:

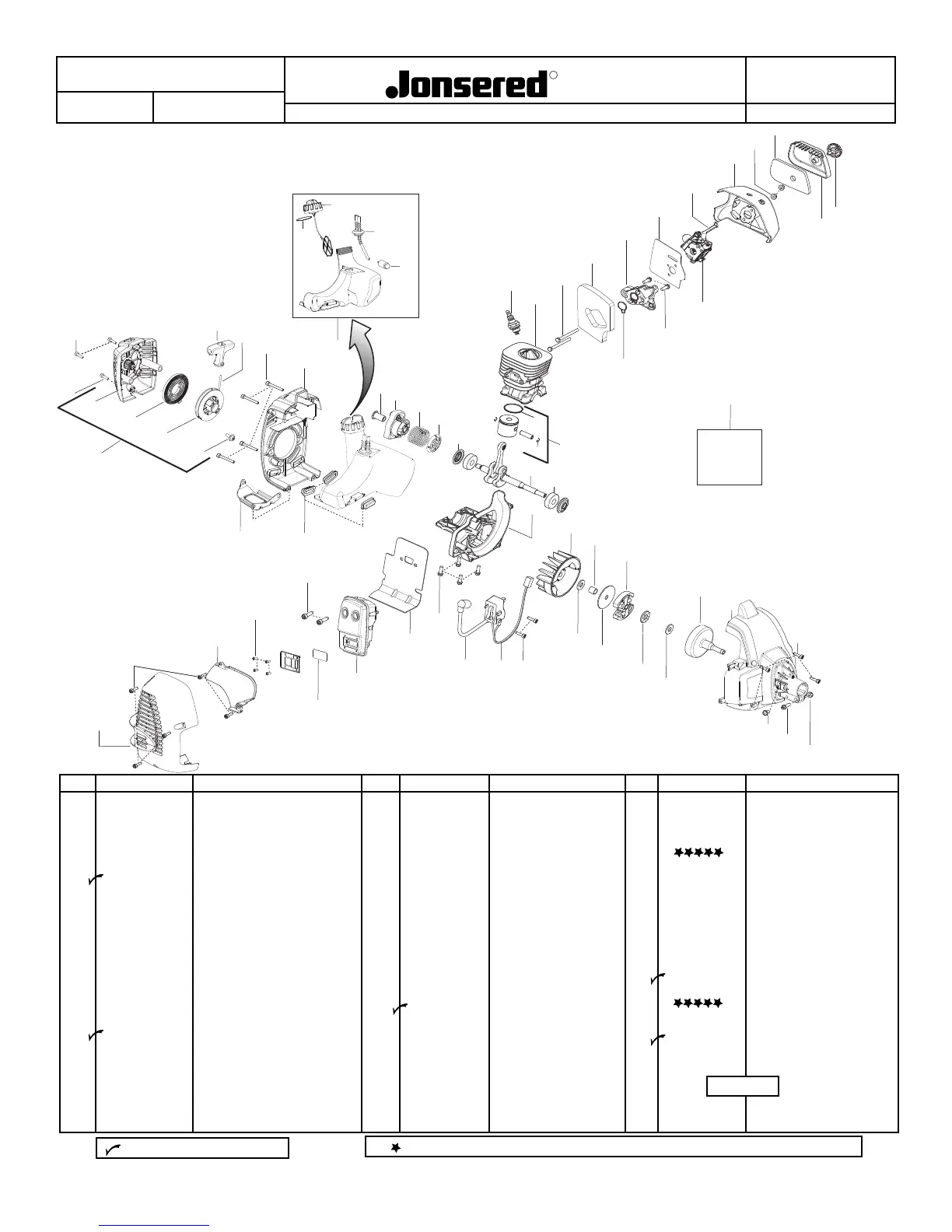

PARTS LIST
R
BC 2126 (ROW)
2
Parts List No.
Date
MODEL
NOTE : Illustration may differ from actual model due to design changes.
Ref. Part No. Description
Ref. Part No. Description
Ref. Part No. Description
1. 530150253 Filter
2. 530016101 Nut-Carb. Screw
3. 545071701 Air Box
4. 530057844 Lever - Choke
5. 545050402 Kit-Carb. Gasket (Incl 7,65)
6. 530035596 Adaptor-Carb.
7. 545008084 Kit-Gasket (foam)
8. 530016400 Bolt
9. 545001001 Cylinder
10. 952030201 Plug-Spark (RCJ-8Y)
11. 545050403 Kit-Crankshaft seal
12. 530016475 Washer-Starter
13. 545160301 Spring-Starter Cup
14. 545102303 Assy-Starter Cup
15. 530059800 Coupling-Starter
16. 530095646 Assy-Fuel Filter
17. 545081897 Kit-Fuel Line
18. 545073101 Assy-Cap w/ret.(Incl. 19)
19. 545008084 Kit-Gasket O-ring - Fuel Cap
20. 545105106 Assy-Fuel Tank
(Incl. 16,17,18,19)
21. 545065201 Shroud-Rear
22. 530016448 Screw
23. 545029901 Kit-Rope
24. 545043201 Handle-Starter
25. 530016426 Screw
51. 530016470 Screw
52. 530403094 Nut
53. 530016456 Screw
54. 545072901 Assy-Fan Housing
55. Assy-Clutch Drum
56. 545050405 Kit-Clutch Assy.
57. 530057852 Spacer
58. 530039242 Flywheel
59. 545054601 Crankcase
60. 545013401 Bearing
61. 545030001 Kit-Crankshaft
62. 530015162 Retainer-Piston Pin
63. 530019283 Ring-Piston
64. 545030301 Kit-Piston (Incl. 62,63)
65. 545008084 Kit-Gasket (adaptor seal)
66. 530015897 Screw
67. Kit-Carb. (Incl. 4,5)
68. 545071901 Cover-Air Box
69.
545072201 Assy-Knob
70. 545008084 Kit-Gasket
(Incl. 5,7,11,19,41,65)
530058709 Bulb-Purge
= New Part Number For This IPL
= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)
26. 530016449 Screw
27. 545104401 Starter Hsg. w/eyelet
28. 545029801 Kit-Starter Spring
29. 545029701 Kit-Starter Pulley
30. 530016468 Screw
31. 545102701 Assy-Starter Hsg.(Incl.
23,24,27,28,29,30)
32. 545071601 Plate-Wear
33. 530059780 Isolator-Tank
34. 530058982 Bolt-Muffler
35. 530015496 Screw
36. 530150440 Shield-Heat
37. 530016449 Screw
38. 545065401 Guard-Muffler
39. 545030501 Kit-Spark (Incl. 35)
40. 545057502 Assy-Muffler
41. 545008084 Kit-Gasket-Paper Met.
42. 530015897 Screw
43. 545046702 Module
44. 530039227 Assy-Leadwire
45. 530016456 Screw
46. 530016463 Washer
47. 530094189 Washer-Clutch
48. 545173401 Bearing - Thrust
49. 530016420 Washer - Thrust
50. 530016469 Screw
Not Shown
1
2
3
18
17
16
15
14
13
11
61
60
64
65
66
67
68
69
62
63
10
9
8
7
6
5
4
20
19
21
22
24
23
25
27
26
32
28
29
30
33
34
35
39
40
41
43
46
47
50
51
53
55
70
Gasket
Kit
56
57
58
59
52
54
44
45
42
36
37
38
12
31
48
49
