English – 11
Construction and function

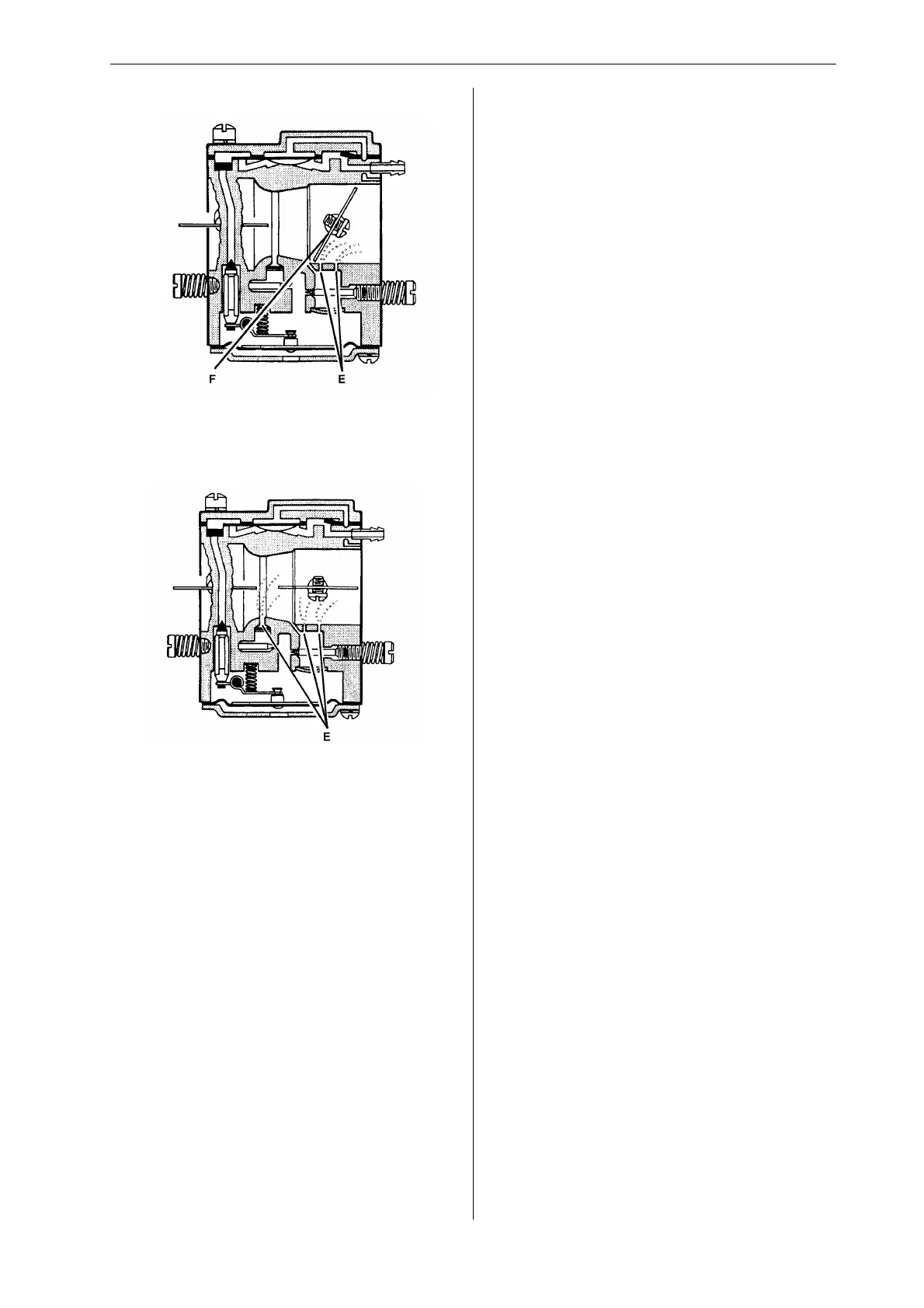

In part throttle mode the throttle valve (F) is par-
tially open. Fuel is supplied through the diffuser
jets (E).
In full throttle mode both valves are open and fuel
is supplied through all the diffuser jets (E).
