Centrifugal clutch – removal
1

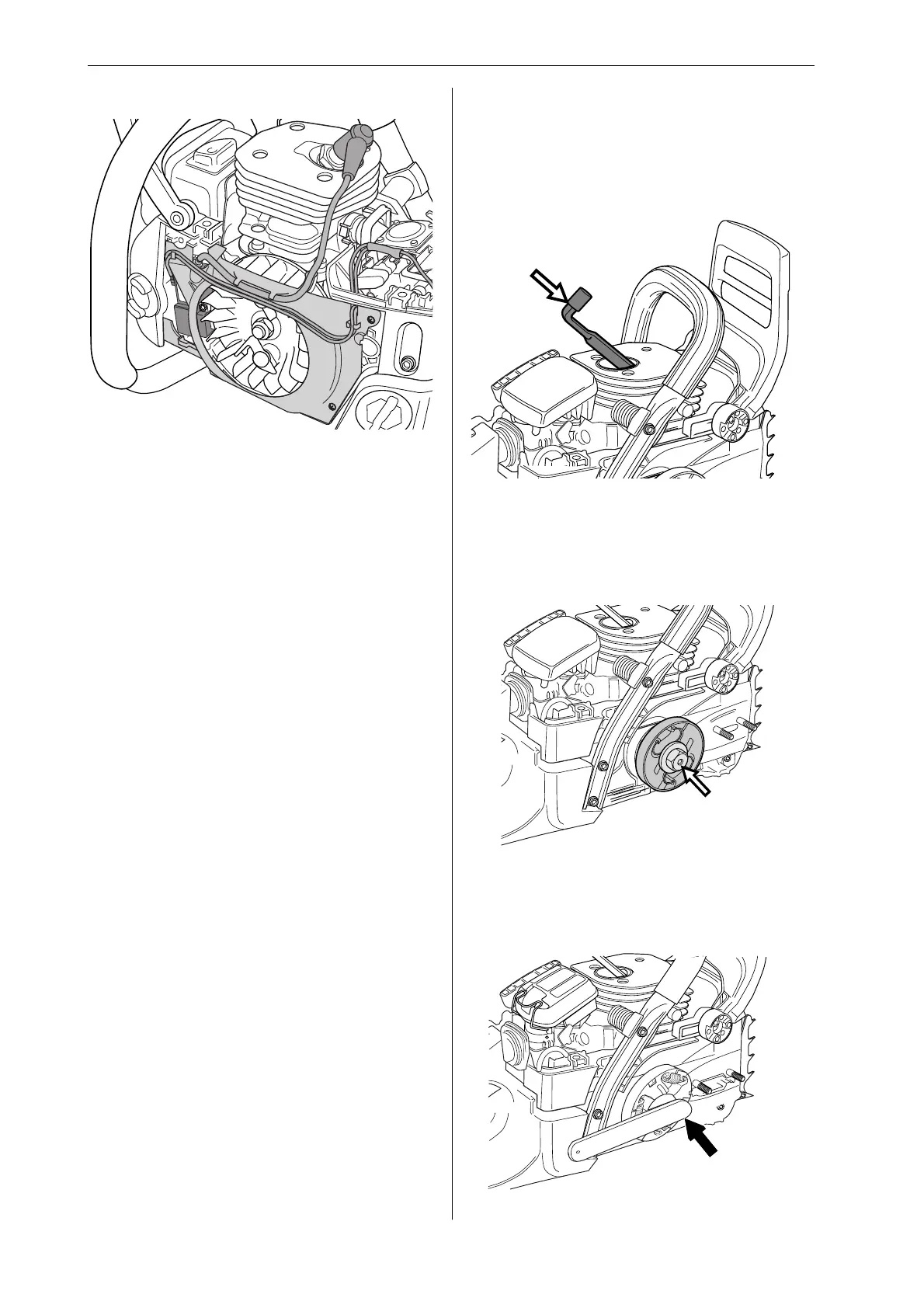

Remove the cylinder cover. Disengage the chain
brake by pushing the kickback guard backwards.
Undo the guide bar bolts and remove the clutch
cover, chain and guide bar.
2
Unbolt the clutch using tool 502 54 16-02 and a
suitable socket or combination spanner. Turn the
nut clockwise to remove it.
Model CS 2156, CS 2159
Use clutch tool 502 52 22-02
Disconnect the HT lead. Remove the spark plug
and fi t piston stop 502 54 15-01 in its place.
3
Models CS 2141, CS 2145, CS 2147, CS 2149,
CS 2150, CS 2152
3
Then refi t:
• cable guide and press the leads into position
• HT lead
• starter assembly, tighten to a torque of 2.5–3.5
Nm
• cylinder cover
