24 – English
Repair instructions
Cleaning and inspection:
• Clean and inspect all parts carefully. If there are
any cracks or other defects replace the dam-
aged parts with new ones. Lubricate the return
spring with light oil.

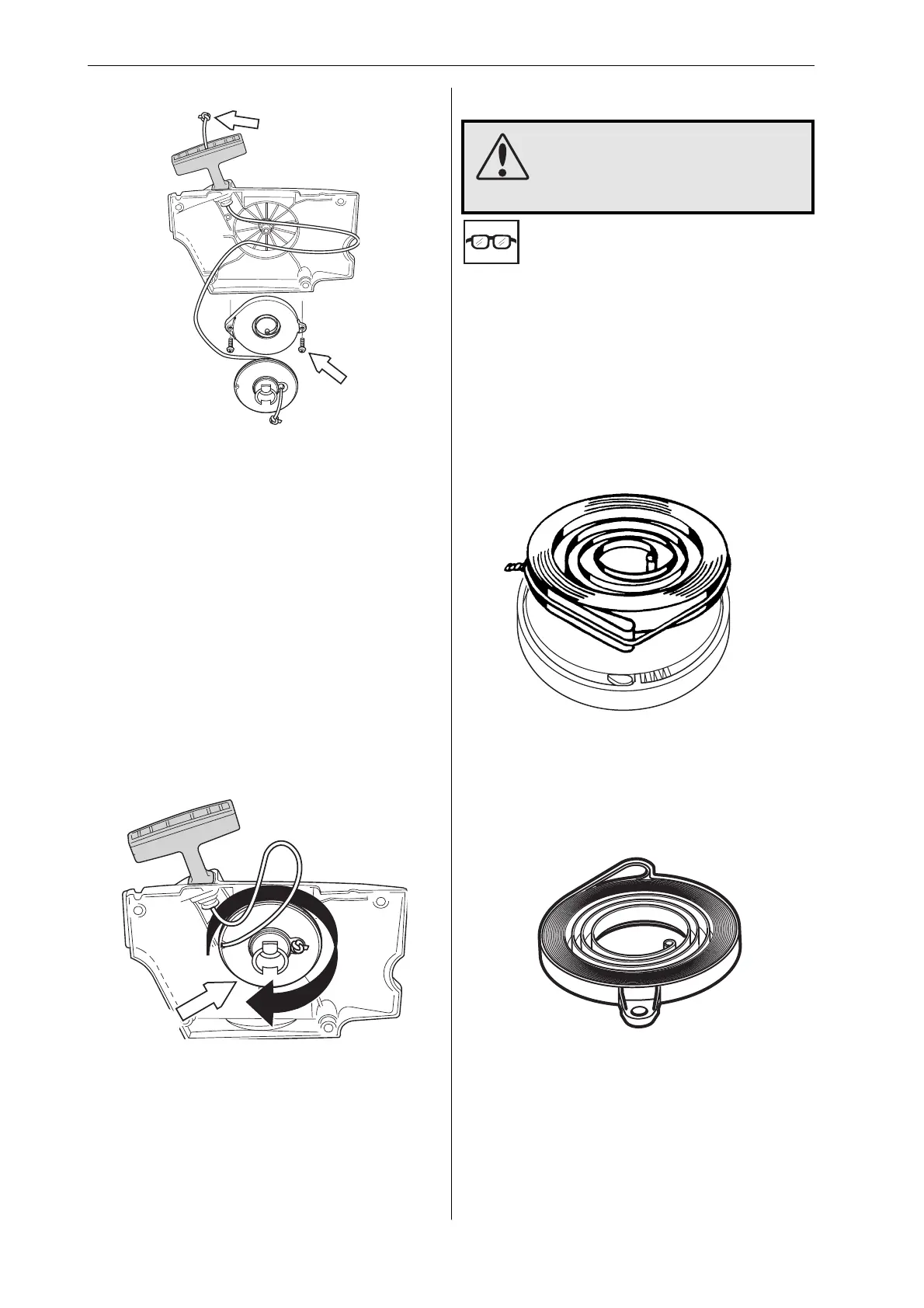

Tensioning the recoil spring
1
Models CS 2141, CS 2145, CS 2147, CS 2149,
CS 2150, CS 2152
Fasten the starter cord in the notch in the pulley
rim and wind the pulley about 2 turns clockwise.
Check that the pulley is free to rotate at least
another half turn when the starter cord is fully
extended.
Model CS 2156, CS 2159
Model CS 2156, CS 2159
WARNING!
Make sure the recoil spring does
not fl y out and cause injury. Wear
eye protection.
Replacing a worn recoil spring
1
Remove the bolt from the centre of the pulley and
lift off the pulley and spring.
2
Remove the broken recoil spring. For model 2159:
remove the recoil spring cassette.
3
Models CS 2141, CS 2145, CS 2147, CS 2149,
CS 2150, CS 2152
Lubricate the recoil spring with light oil. Fit the new
recoil spring and cassette. Screw the cassette onto
the cover using the two screws.
4
Fit the bolt through the centre of the pulley and
tighten to a torque of 2–3 Nm.
Tension the recoil spring, see “Tensioning the recoil
spring”.
Fit a new recoil spring, with the retaining wire still in
place. Do not remove the wire until the spring is in
position. If the spring comes loose when you put it in
place wind it up from the outside working inwards.
Lubricate the recoil spring with light oil.
Model CS 2156, CS 2159
