26 – English

Repair instructions

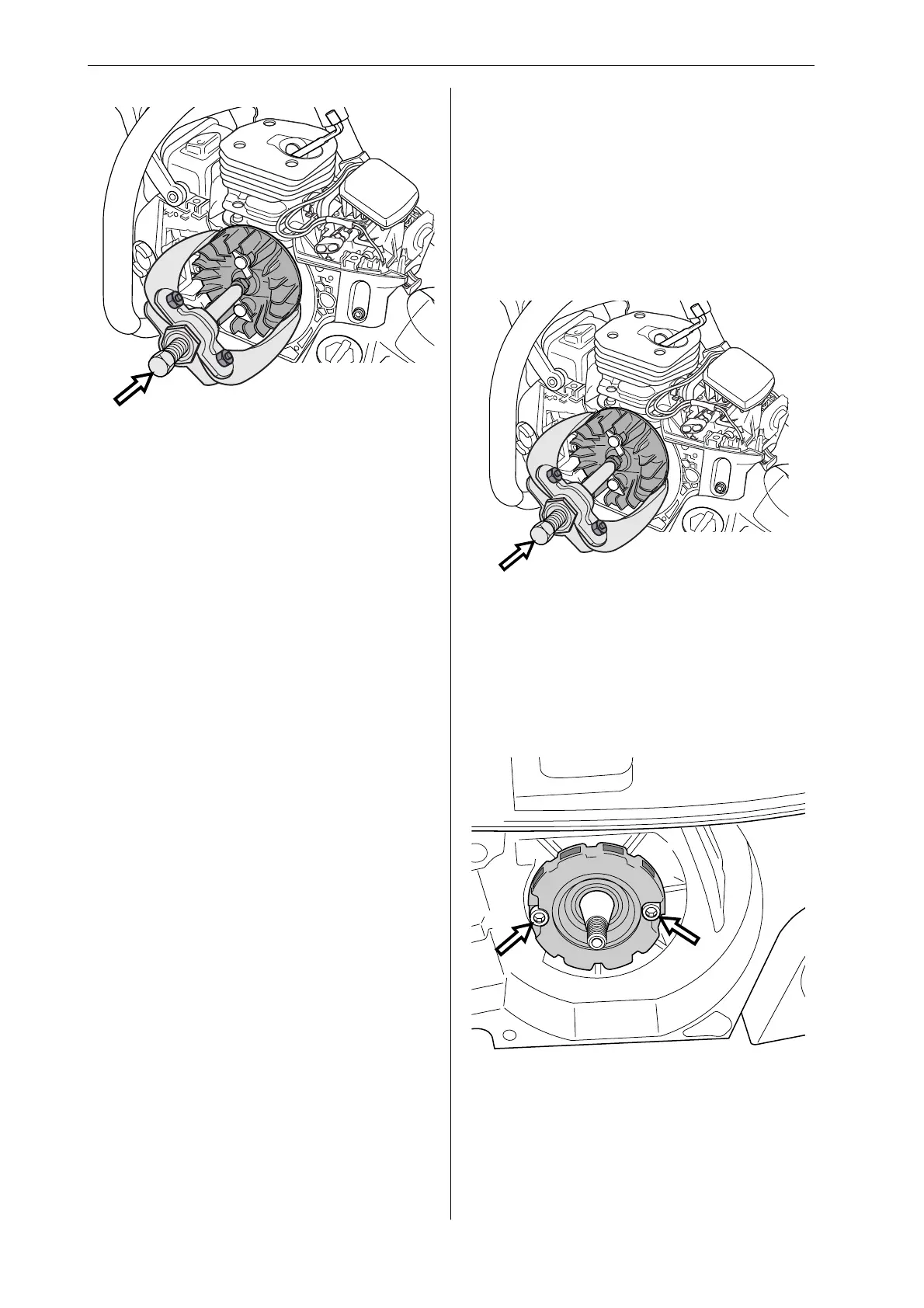

Position puller 504 90 90-02 over the magnets and

counterweight on the ﬂ ywheel. Tighten 2–3 turns

and tap the head of the puller with a metal mallet

to release the ﬂ ywheel. Remove the puller, nut and

washer. Lift off the ﬂ ywheel.

Cleaning and inspection

• Clean all parts, especially the tapers on the

ﬂ ywheel and shaft.

• Check that the ﬂ ywheel is not cracked or dam-

aged in any other way.

Replacing the generator, model

CS 2147 W, CS 2149 W, CS 2152 W,

CS 2156 W, CS 2159 W

Remove the cylinder cover. Disconnect the HT lead,

remove the spark plug and ﬁ t piston stop 502 54

15-01 in its place. Take off the starter assembly,

release the leads from the cable guide and remove

it. Remove the cover from the hand grip.

Loosen the ﬂ ywheel nut using a suitable socket

and unscrew it until it is ﬂ ush with the end of the

shaft. Position puller 504 90 90-02 over the mag-

nets and counterweight on the ﬂ ywheel. Tighten

2–3 turns and tap the head of the puller with a

metal mallet to release the ﬂ ywheel. Remove the

puller, nut and washer. Lift off the ﬂ ywheel.

Unscrew the two bolts from the generator but leave

the generator in place.
