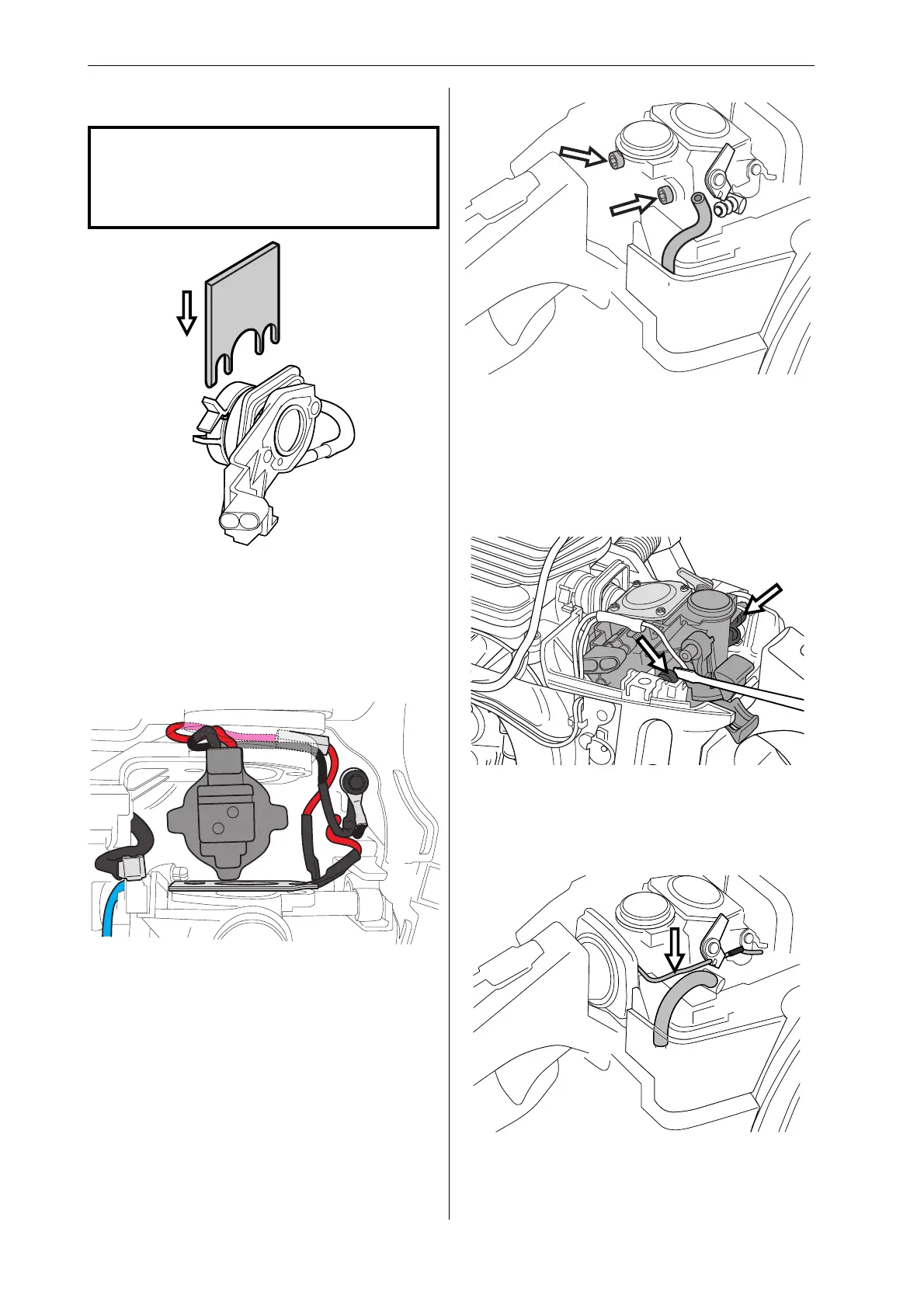

Push the rear carburettor mounting into its rubber
bushing using a small screwdriver. Remove stop
plate 502 54 17-01.
4
Fit stop plate 502 54 17-01 between the carburet-
tor fl ange and the insulating plate.
On saws with a carburettor heater
CS 2147 H, CS 2149 H, CS 2152 H,
CS 2156 H, CS 2159 H
Carburettor – refi tting
NOTE!
Cleanliness is very important when reas-
sembling the carburettor. Tiny particles of
dirt can cause operating problems.
1
Insert the heating element between the air fi lter
connection and carburettor as well as above the
carburettor. Route the cable as illustrated above.
Tighten the bracket above the carburettor with the
two bolts.
Connect the cables to the carburettor heater.
Fit the carburettor. Screw in the carburettor bolts
directly from behind, without lifting the carburet-
tor assembly. Tighten to a torque of 1–1.5 Nm. It
is important to hold the carburettor fl ange while
tightening the bolts to prevent the inlet manifold
from moving.
3
2
Connect the fuel hose to the carburettor. Refi t the
throttle pushrod at the same time as the rubber
inlet manifold, press in the throttle pushrod so that
it engages in the carburettor and fi t the spring.
