Jonsered CS 2141 Workshop Manual

54 – English
Repair instructions
• fuel tank*
• piston and cylinder*
• generator*
• carburettor base
• carburettor*
• throttle pushrod
• silencer*
• ignition system*
• starter assembly*
• cylinder cover
• clutch cover
• guide bar and chain
* See special instructions.

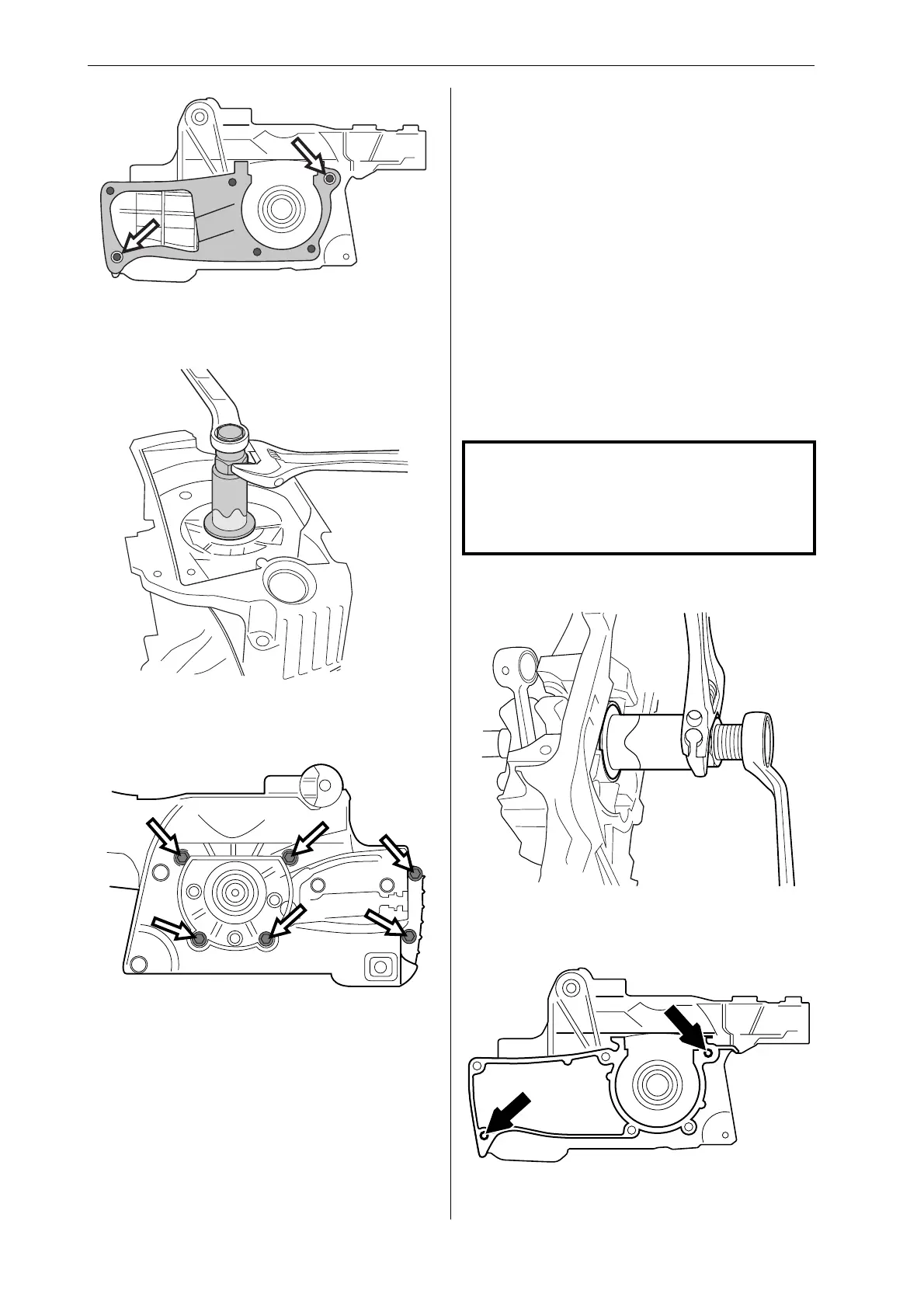

Check that the guide pins are in place. Fit a new
gasket to the mating surface of the clutch side of
the crankcase.
3
Place the fl ywheel side of the crankcase over the
crankshaft and pull the two crankcase halves to-
gether using assembly tools 502 50 30-18.
4
NOTE!
If a new crankshaft has been fi tted the
saw must be run in for 3-4 hours with the
carburettor adjusted to the factory set-
tings.
Fit and tighten the six crankcase bolts to a torque
of 8–10 Nm. Check that the crankshaft rotates
freely.
5
Refi t the following parts:
• bark rest
• oil pump*
• chain tensioner
• centrifugal clutch*
Crankcase and crankshaft –
reassembly CS 2156, CS 2159
1
Hold the clutch side of the crankcase in a vice. Pull
the crankshaft into its bearing using assembly tools
502 50 30-16.
2
Check that the guide pins are in place. Fit a new
gasket to the mating surface of the clutch side of
the crankcase.
2
