24 – English
WHAT IS WHAT?

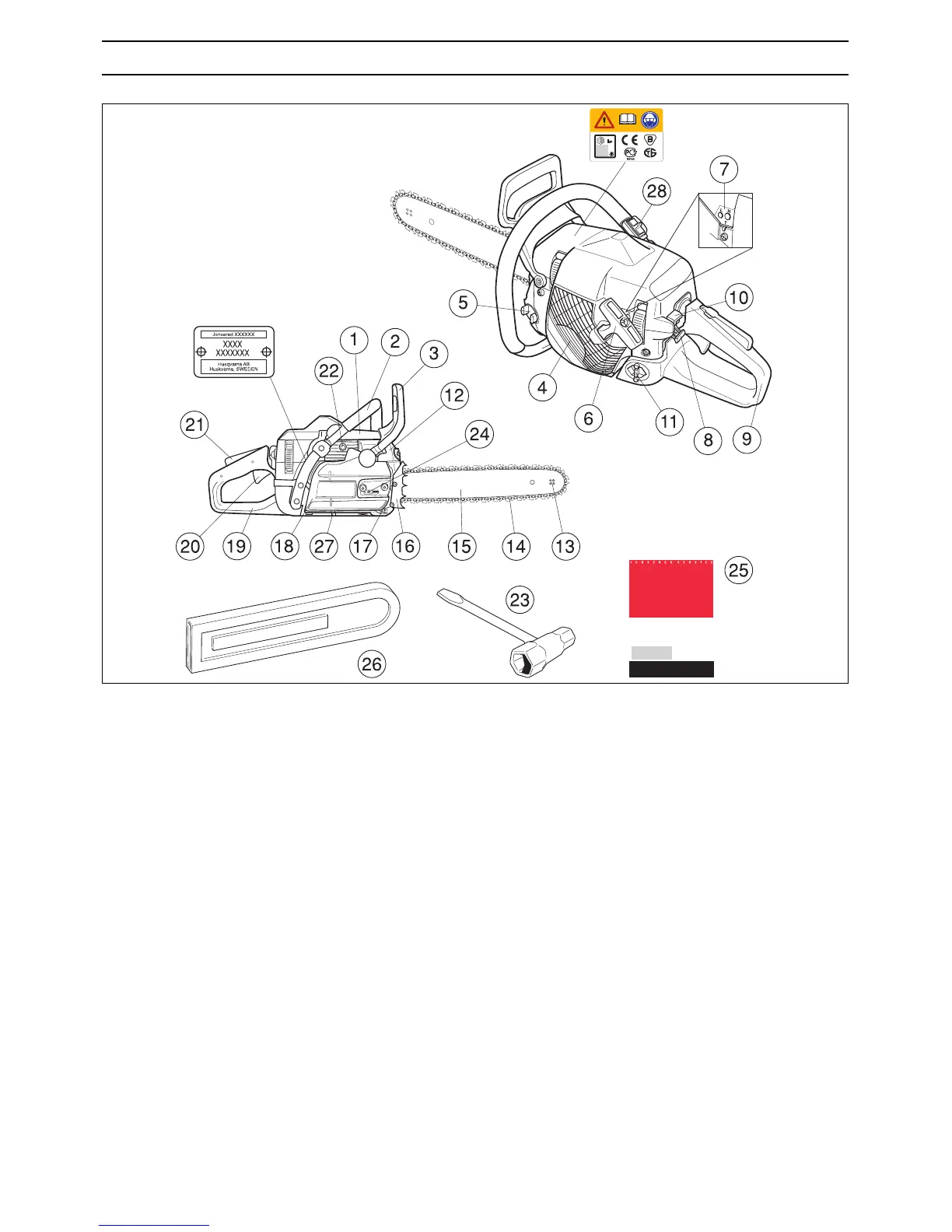

What is what on the chain saw?
1 Cylinder cover
2 Front handle
3 Hand guard
4 Starter
5 Chain oil tank
6 Starter handle
7 Adjuster screws, carburettor
8 Choke control/Start throttle lock
9 Rear handle
10 Stop switch (Ignition on/off switch.)
11 Fuel tank
12 Muffler
13 Bar tip sprocket
14 Chain
15 Bar
16 Spike bumper
17 Chain catcher (Catches chain if it jumps or breaks.)
18 Clutch cover
19 Right hand guard (Protects right hand if chain breaks or
jumps.)
20 Throttle control
21 Throttle lock (Prevents accidental operation of throttle
control.)
22 Decompression valve (CS 2152)
23 Combination spanner
24 Chain tensioning screw
25 Operator′s manual
26 Bar guard
27 Oil pump adjustment screw
28 Switch for heated handle (W)
