English – 33

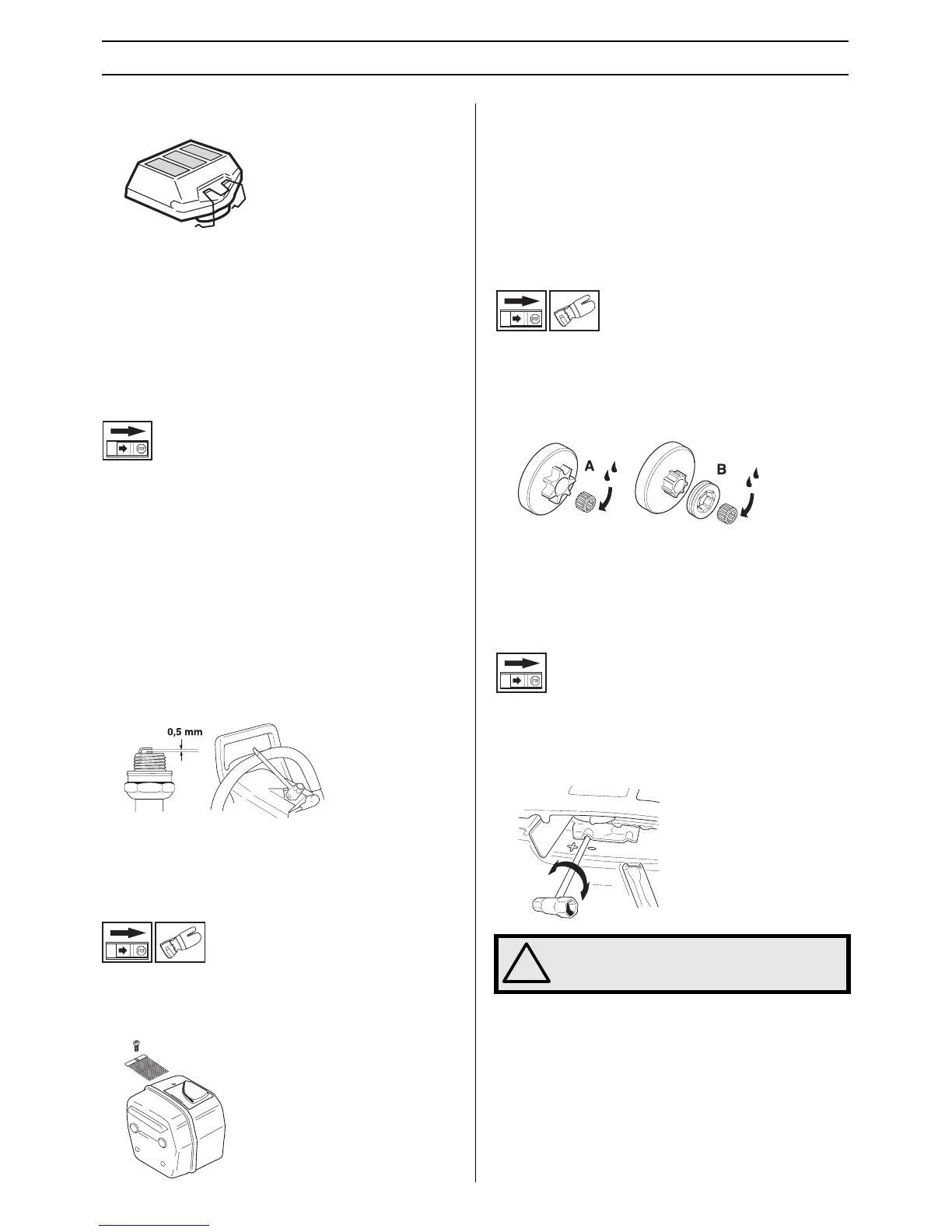

MAINTENANCE
• The filter can be cleaned more thoroughly by washing it in
water and detergent.
An air filter that has been in use for a long time cannot be
cleaned completely. The filter must therefore be replaced with
a new one at regular intervals. A damaged air filter must
always be replaced.
A JONSERED chain saw can be equipped with different types
of air filter according to working conditions, weather, season,
etc. Contact your dealer for advice.
Spark plug
The spark plug condition is influenced by:
• Incorrect carburettor adjustment.
• Wrong fuel mixture (too much oil).
• A dirty air filter.
These factors cause deposits on the spark plug electrodes,
which may result in operating problems and starting
difficulties.
• If the machine is low on power, difficult to start or runs
poorly at idle speed: always check the spark plug first
before taking any further action. If the spark plug is dirty,
clean it and check that the electrode gap is 0.5 mm. The
spark plug should be replaced after about a month in
operation or earlier if necessary.
CAUTION! Always use the recommended spark plug type!
Use of the wrong spark plug can damage the piston/cylinder.
Muffler
The muffler is designed to reduce the noise level and to direct
the exhaust gases away from the operator. The exhaust
gases are hot and can contain sparks, which may cause fire
if directed against dry and combustible material.
Some mufflers are equipped with a special spark arrestor
mesh. If your machine has this type of muffler, you should
clean the mesh at least once a week. This is best done with a
wire brush.
CAUTION! The mesh must be replaced if it is damaged. If the
mesh is blocked the machine will overheat and this will cause
damage to the cylinder and piston. Never use a machine with
a muffler that is in poor condition.
Needle bearing lubrication
The clutch drum is fitted with one of the following drive
sprockets:
• A Spur sprocket (the chain sprocket is welded on the
drum)
• B Rim sprocket (replaceable)
Both versions have a needle bearing on the drive shaft, which
has to be greased regularly (once a week).
CAUTION! Use a high-quality bearing grease or engine oil.
Adjustment of the oil pump
The oil pump is adjustable. Adjustments are made by turning
the screw using a screwdriver or combination spanner. The
machine is supplied from the factory set to 1 turn open.
Turning the screw clockwise will reduce the oil flow and
turning the screw anti-clockwise will increase the oil flow.
Recommended settings:
These recommendations apply to JONSERED chain oil, for
other chain oils increase the oil flow by one step.
!
WARNING! The engine must not be running
when making adjustments.
Bar -15": 1 turn from the closed position.
Bar 15" -18": 2 turns from the closed position.
Bar 18" -24": 3 turns from the closed position.
Bar 24" -: 4 turns from the closed position.
