Jonsered CS 2245 User Manual

ASSEMBLY
English – 17

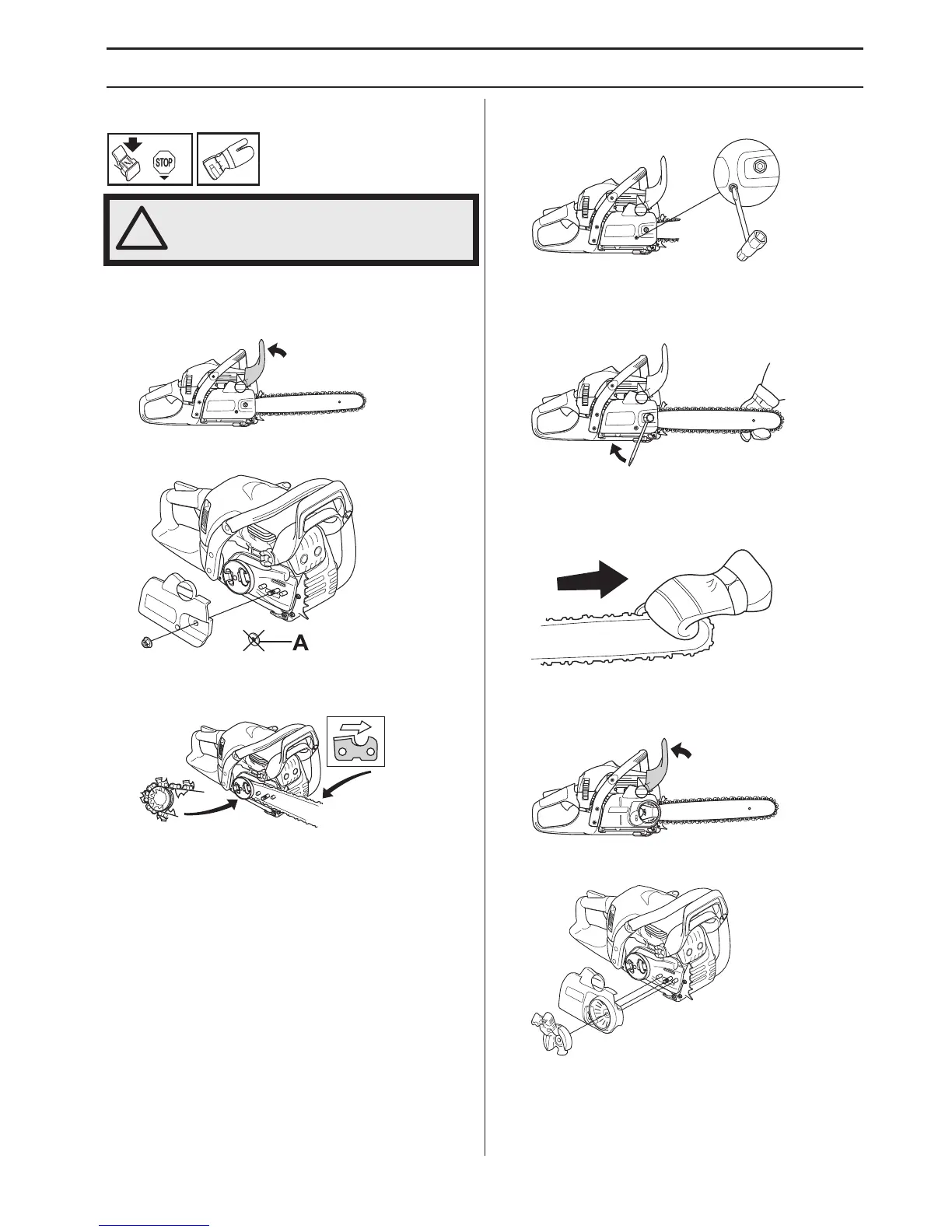

Fitting the bar and chain
CS 2245
Check that the chain brake is in disengaged position by
moving the front hand guard towards the front handle.
Unscrew the bar nut and remove the clutch cover (chain
brake). Take off the transportation ring (A).
Fit the bar over the bar bolts. Place the bar in its rearmost
position. Place the chain over the drive sprocket locate it
in the groove on the bar. Begin on the top edge of the bar.
Make sure that the edges of the cutting links are facing
forward on the top edge of the bar.
Fit the clutch cover and locate the chain adjuster pin in the
hole in the bar. Check that the drive links of the chain fit
correctly over the drive sprocket and that the chain is
correctly located in the groove in the bar. Tighten the bar
nut finger-tight.
Tension the chain by turning the chain tensioning screw
clockwise using the combination spanner. The chain
should be tensioned until it does not sag from the
underside of the bar.
The chain is correctly tensioned when it does not sag from
the underside of the bar, but can still be turned easily by
hand. Hold up the bar tip and tighten the bar nuts with the
combination spanner.
When fitting a new chain, the chain tension has to be
checked frequently until the chain is run-in. Check the
chain tension regularly. A correctly tensioned chain
ensures good cutting performance and long life.
CS 2245S, CS 2250S
Check that the chain brake is in disengaged position by
moving the front hand guard towards the front handle.
Loosen the chain tensioner wheel and remove the clutch
cover (chain brake). Remove the transport guard.
!
WARNING! Always wear gloves, when
working with the chain.

Jonsered CS 2245 Specifications

General

Engine Power	2.1 kW
Cylinder Displacement	45.7 cm³
Weight (excl. cutting equipment)	4.9 kg
Sound Pressure Level	103 dB(A)
Fuel Tank Volume	0.45 l
Chain Pitch	0.325"
Oil Tank Volume	0.26 liters
