Jonsered CS 2245 User Manual

English – 5
WHA T IS WHA T?

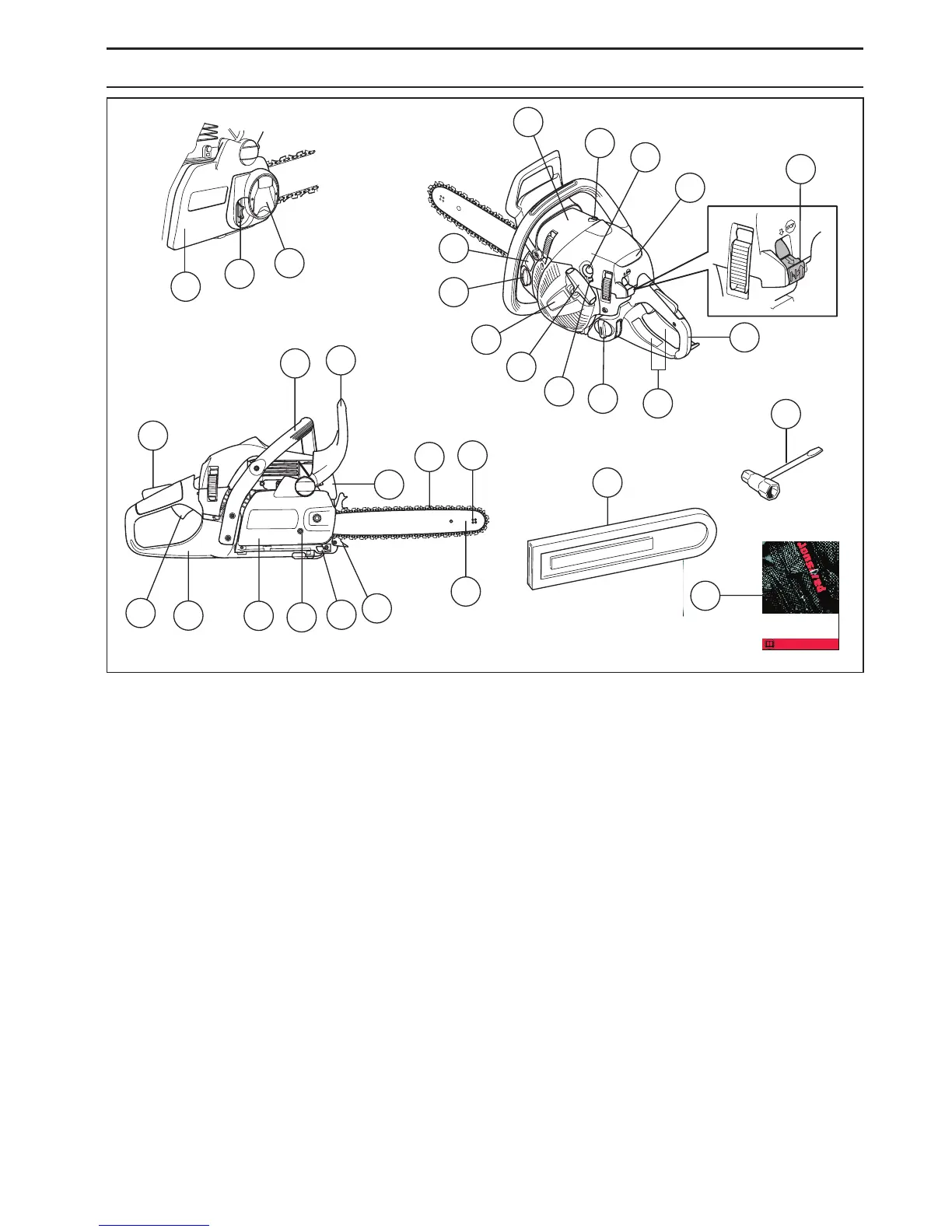

What is what on the c hain saw?
1
2
3
4
5
6
7
8
9
10
11
12
31
30
18
17
19
20
21
14
15
23
13
16
22
23
24
25
26
27
28
29
1 Cylinder cover
2 Decompression valve
3 Air purge
4 Start reminder
5 Combined start and stop switch
6 Rear handle
7 Information and warning decal
8 Fuel tank
9 Adjuster screws carburettor
10 Starter handle
11 Starter
12 Chain oil tank
13 Product and serial number plate
14 Front handle
15 Front hand guard
16 Muffler
17 Chain
18 Bar tip sprocket
19 Bar
20 Spike bumper
21 Chain catcher
22 Chain tensioning screw
23 Clutch cover
24 Right hand guard
25 Throttle control
26 Throttle lockout
27 Chain tensioner wheel (CS 2245S, CS 2250S)
28 Knob (CS 2245S, CS 2250S)
29 Operator ′ s manual
30 Bar guard
31 Combination spanner

Jonsered CS 2245 Specifications

General

Engine Power	2.1 kW
Cylinder Displacement	45.7 cm³
Weight (excl. cutting equipment)	4.9 kg
Sound Pressure Level	103 dB(A)
Fuel Tank Volume	0.45 l
Chain Pitch	0.325"
Oil Tank Volume	0.26 liters
