MAINTENANCE
English – 35

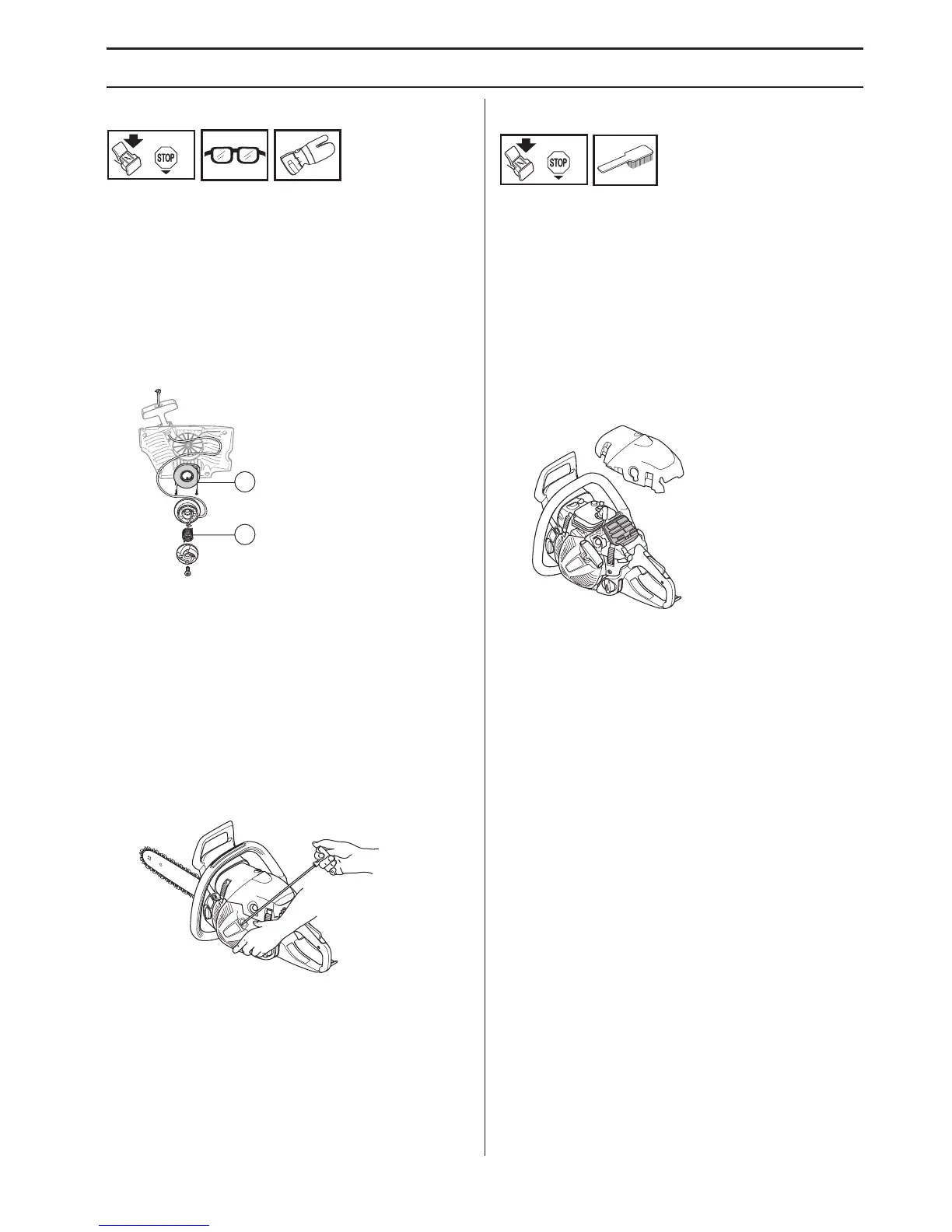

Replacing the return and drive springs
Recoil spring (A)
• Lift up the starter pulley. See instructions under the
heading Changing a starter cord. Remember that the
recoil spring is coiled under tension in the starter
housing.
• Remove the cassette with the recoil spring from the
starter.
• Lubricate the recoil spring with light oil. Fit the
cassette with recoil spring in the starter. Fit the starter
pulley and tension the recoil spring.
Drive disc spring (B)
• Undo the bolt in the centre of the pulley and remove
the drive disc and the drive disc spring.
• Replace the drive disc spring and fit the drive disc
above the spring.
Fitting the starter
• To fit the starter, first pull out the starter cord and place
the starter in position against the crankcase. Then
slowly release the starter cord so that the pulley
engages with the pawls.
• Fit and tighten the screws that hold the starter.
Air filter
The air filter must be regularly cleaned to remove dust and
dirt in order to avoid:
• Carburettor malfunctions
• Starting problems
• Loss of engine power
• Unnecessary wear to engine parts.
• Excessive fuel consumption.
• Remove the air filter after taking off the air filter cover.
When refitting make sure that the air filter seals tightly
against the filter holder. Clean the filter by brushing or
shaking it.
The filter can be cleaned more thoroughly by washing it in
water and detergent.
An air filter that has been in use for a long time cannot be
cleaned completely. The filter must therefore be replaced
with a new one at regular intervals.
A damaged air filter
must always be replaced.
A JONSERED chain saw can be equipped with different
types of air filter according to working conditions, weather,
season, etc. Contact your dealer for advice.
A
B
