PARTS LIST
REPLACES
2
Note:

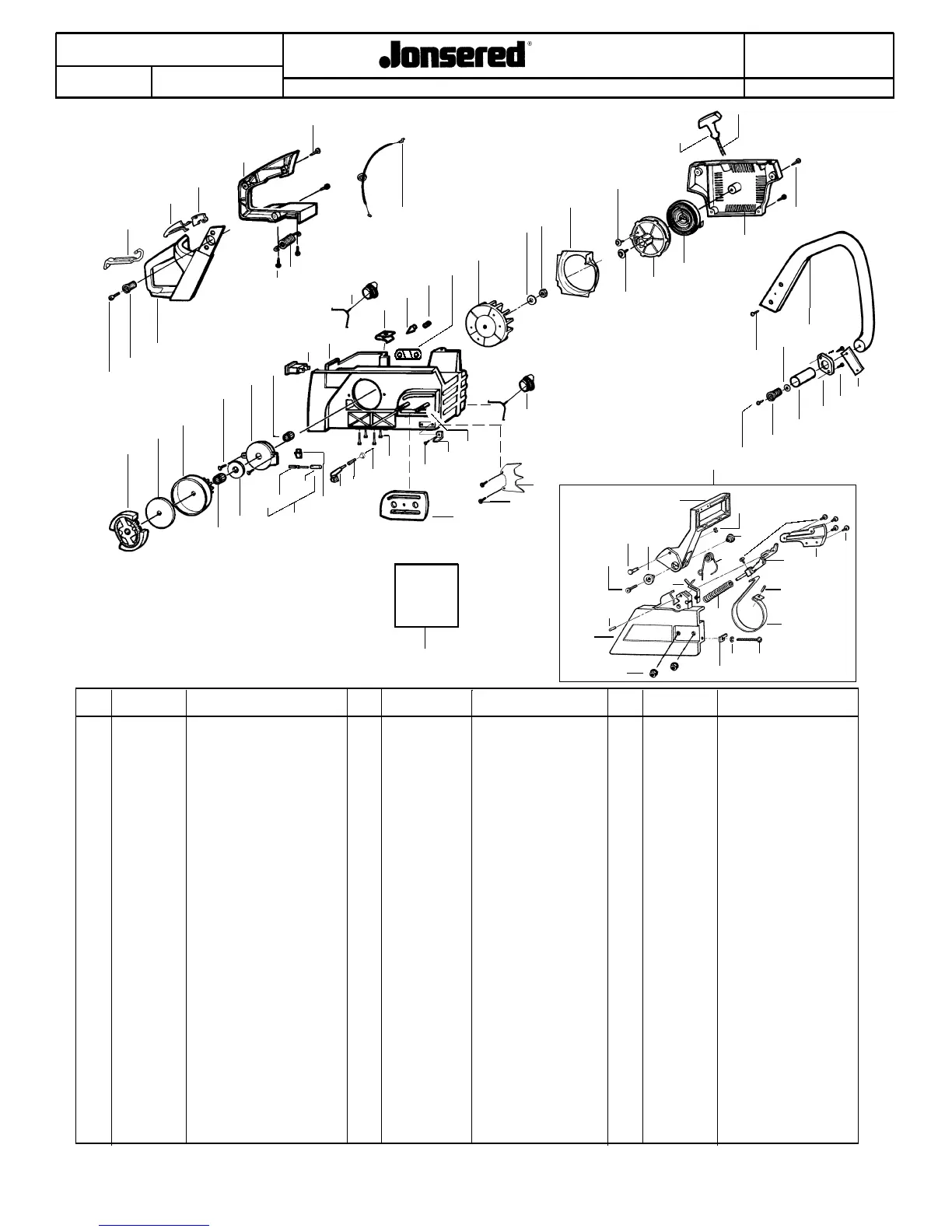

Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
MODEL(s)
530068462
2036 & CS2040
DATE
12/12/02
530068462--8/28/02
3
4
8
1
10
9
11
2
25
22
24
36
26
35
27
28
33
32
29
30
31
37
19
21
45
44
38
39
20
41
48
23
6
54
7
34
5
12
53
56
58
55
61
60
59
57
16
17
15
14
49
50
51
52
13
18
43
42
Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description
1. 530015957 Screw
2. 530036491 Cover--Handle
3. 530036097 Trigger--Throttle
4. 530036098 Lockout--Throttle
5. 530053443 Lever--Choke
6. 530015937 Screw
7. 530038985 Spring--Isolator
8. 530036130 Handle--Rear
9. 530015906 Screw
10. 530038986 Spring--Isolator
11. 530038471 Assy--Throttle Cable
(Incl. Grommet)
12. 530069232 Kit--Rope
13. 530037357 Handle--Starter
14. 530016080 Screw
15. 530037457 Plate--Baffle Fan
16. 530016134 Nut--Flywheel
17. 530015127 Washer--Flywheel
18. 530039147 Assy--Flywheel
19. 530036043 Plate--Support
(Bar Stud)
20. 530029868 Plug--Vent
21. 530026119 Valve--Check
22. 530015922 Nut--Speed
23. 530010845 Assy--Fuel Cap
24. 530054578 Assy--Chassis
25. 530069572 Kit--Switch
26. 530029833 Worm--Oil Pump
27. 530029835 Hsg.--Oil Pump
28. 530015896 Screw
29. ------ Clutch Drum (Incl. #32)
530047061 3/8--Sprocket
530069342 .325--Sprocket
30. 530015611 Washer--Clutch
31. 530014949 Assy--Clutch
32. 530032119 Bearing--Clutch
33. 530015907 Washer--Thrust
34. 530029838 Assy--Plunger/Gear
35. 530029834 Barrel--Oil Pump
36. 530014410 Assy--Oil Pump
(Incl. 27, 34, & 35)
37. 530019174 Seal--Oil
38. 530037057 Pickup--Oil
39. 530037821 Filter--Oil
40. 530030189 Plug--Oil Filter
41. 530016037 Screw
42. 530015814 Screw
43. 530029850 Chain Catcher
44. 530015877 Bar Bolt
45. 530047855 Bar Plate
46. 530015805 Screw
47. 530014381 Kit--Spike Assy(incl#46)
48. 530010846 Assy--Oil Cap
49. 530015920 Screw
50. 530069313 Kit--Starter Pulley
51. 530015891 Spring--Recoil
52. 530054547 Housing--Fan
53. 530015892 Screw
54. 530015814 Screw
55. 530015123 Washer
56. 530038327 Handle--Front
57. 530036113 Front Strap--AV
58. 530015775 Screw--Plate
59. 530036101 Plate--Isolator
60. 530036142 Spring Sleeve--AV
61. 530038985 Spring--Isolator
62. 530015984 Screw
63. 530054871 Assy--ChainBrake
64. 506158601 Handguard
65. 530056531 Journal--Right
66. 530029879 Pin--Pivot
67. 530016384 Screw
68. 530029878 Spring--Position
69. 530015915 Link Pin--Front
70. 530053666 Cover--Clutch
71. 530015917 Nut--Bar Mounting
72. 530015826 Pin--Bar Adjust
73. 530038593 Retainer--E--clip
74. 530069611 Kit--Bar Adjust
(incl.72,73)
75. 530016237 Spring--Compression
76. 530052232 Band--Brake
77. 530015913 Pin--Spring Band
78. 530054741 Assy--Front/Rear Link
79. 530053129 Cover--Spring
80. 530015911 Screw--Brake Band
81. 506164801 Spring--Handguard
82. 530029881 Journal--Left
83. 530069583 Kit--Oil Vent Pin
40
46
47
62
= NEW PART NUMBER FOR THIS IPL
n
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
K
71
70
72
7473
77
76
69
67
68
66
65
75
82
81
79
78
63
80
73
64
n
n
n
KIT
Oil V ent
Pin
83
n
To Next Page
