Jonsered GC2126C Spare Parts Manual

Replaced
545014396 - 9/28/07
NOTE : Illustration may differ from actual model due to design changes.
545014396
2/08/08
Page:

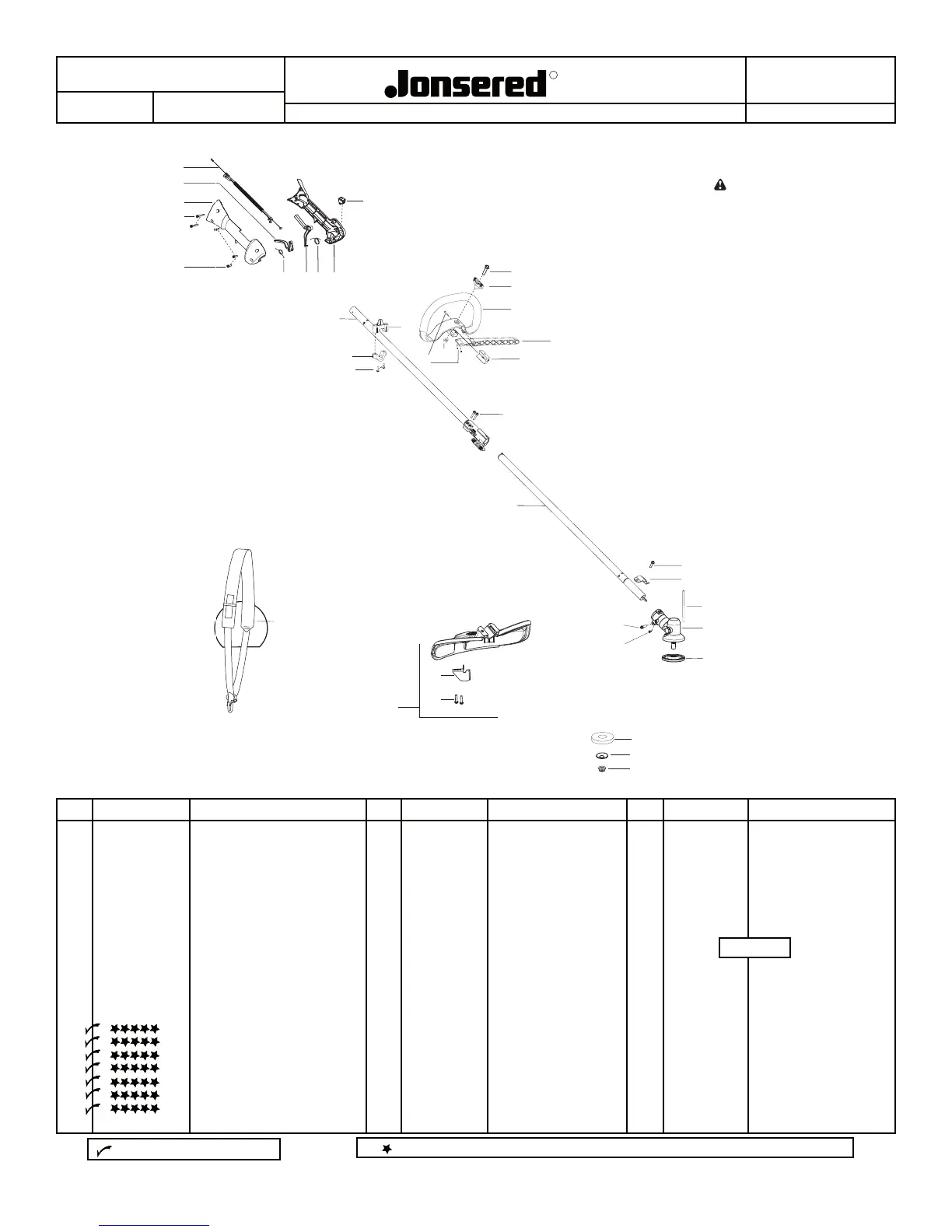

PARTS LIST
R
GC2126C
1
Parts List No.
Date
MODEL
WARNING
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by Qualified Service
Personnel.
4
1
10
3
2
5
6
16
12
20
21
13
19
17
14
15
18
22
11
30
31
33
32
34
24
23
7
8 9
25
27
26
28
29
36
37
38
545096801 Decal-Warning (upper)
545143401 Decal-Warning (lower)
1. 545125301 Assy-Cable/Wire Harness
2. 545072001 Trigger
3. 545024202 Housing-Throttle (RH)
4. 530016448 Screw
5. 530016449 Screw
6. 530016454 Spring-Trigger
7. 545072102 Throttle-Lockout
8. 545045601 Spring-Lockout
9. 545071801 Housing-Throttle (LH)
10. 545030601 Kit-Switch
11. 545006070 Kit-Upper Driveshaft
(Incl. flex & 22)
12. 545056601 Clamp-Harness (lower)
13. 530015940 Screw
14. 545113301 Clamp-Harness (upper)
15. Screw
16. Nut - Square M6
17. Screw
18. Knob
19. Assy - Loop Handle w/J handle
20. Handle - J - Plastic
21. Spacer
22. 503200725 Screw-Clamp
23. 545006071 Kit-Lower Driveshaft
(Incl. flex, 28,29,31,33)
24. 537216201 Harness-Shoulder
25. 545081703 Kit-Shield
(Incl. 26,27,30)
26. 530052286 Limiter-Line
27. 530015814 Screw
28. 530016014 Screw
29. 545003902 Screw
30. 530015771 Screw
31. 530057554 Bracket-Shield
32. 502285901 Pin-Locking
33. 530096295 Assy-Gearbox
34. 537234901 Driver Disc
36. 503890101 Cup-Support
37. 537285601 Support - Flange
38. 503856301 Locknut - Blade
Ref. Part No. Description
Ref. Part No. Description
= New Part Number For This IPL
= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)
Ref. Part No. Description
Not Shown
