Jonsered GC2126C Spare Parts Manual

545014396
2/08/08
Replaced
545014396 - 9/28/07
Page:
PARTS LIST
R
GC2126C
2
Parts List No.
Date
MODEL

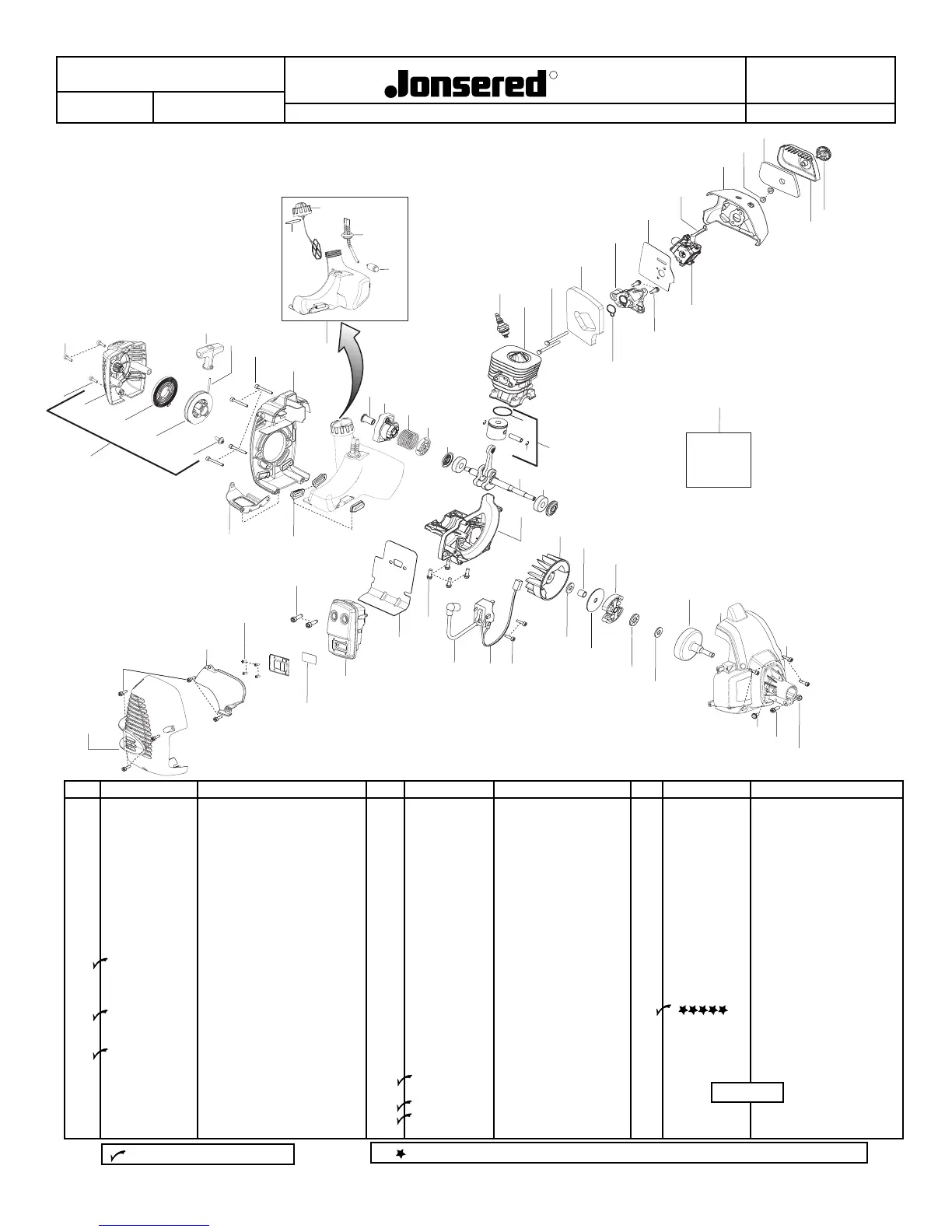

NOTE : Illustration may differ from actual model due to design changes.
1
2
3
18
17
16
15
14
13
11
61
60
64
65
66
67
68
69
62
63
10
9
8
7
6
5
4
20
19
21
22
24
23
25
27
26
32
28
29
30
33
34
35
39
40
41
43
46
47
50
51
53
55
70
Gasket
Kit
56
57
58
59
52
54
44
45
42
36
37
38
12
31
48
49
Ref. Part No. Description
Ref. Part No. Description
Ref. Part No. Description
1. 530150253 Filter
2. 530016101 Nut-Carb. Screw
3. 545071701 Air Box
4. 530057844 Lever - Choke
5. 545050402 Kit-Carb. Gasket (Incl 7,65)
6. 530035596 Adaptor-Carb.
7. 545030101 Kit-Gasket (foam)
8. 530016400 Bolt
9. 545001001 Cylinder
10. 952030201 Plug-Spark (RCJ-8Y)
11. 545050403 Kit-Crankshaft seal
12. 530016475 Washer-Starter
13. 545160301 Spring-Starter Cup
14. 545102302 Assy-Starter Cup
15. 530059800 Coupling-Starter
16. 530095646 Assy-Fuel Filter
17. 545081897 Kit-Fuel Line
18. 545073101 Assy-Cap w/ret.(Incl. 19)
19. 530019293 O-ring - Fuel Cap
20. 545105107 Assy-Fuel Tank
(Incl. 16,17,18,19)
21. 545065201 Shroud-Rear
22. 530016448 Screw
23. 545029901 Kit-Rope
24. 545043201 Handle-Starter
25. 530016426 Screw
51. 530016470 Screw
52. 530015768 Nut
53. 530016456 Screw
54. 545072901 Assy-Fan Housing
55. 530150039 Assy-Clutch Drum
56. 545050405 Kit-Clutch Assy.
57. 530057852 Spacer
58. 530039242 Flywheel
59. 545054601 Crankcase
60. 545013401 Bearing
61. 545030001 Kit-Crankshaft
62. 530015162 Retainer-Piston Pin
63. 530019283 Ring-Piston
64. 545030301 Kit-Piston (Incl. 62,63)
65. 545030101 Kit-Gasket (adaptor seal)
66. 530015897 Screw
67. Kit-Carb. (Incl. 4,5)
68. 545071901 Cover-Air Box
69.
545072201 Assy-Knob
70. 545030101 Kit-Gasket
(Incl. 5,7,11,19,41,65)
530058709 Bulb-Purge
= New Part Number For This IPL
= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)
26. 530016449 Screw
27. 545104401 Starter Hsg. w/eyelet
28. 545029801 Kit-Starter Spring
29. 545029701 Kit-Starter Pulley
30. 530016468 Screw
31. 545102701 Assy-Starter Hsg.(Incl.
23,24,27,28,29,30)
32. 545071601 Plate-Wear
33. 530059780 Isolator-Tank
34. 530058982 Bolt-Muffler
35. 530015496 Screw
36. 530150440 Shield-Heat
37. 530016449 Screw
38. 545065401 Guard-Muffler
39. 545030501 Kit-Spark (Incl. 35)
40. 545057501 Assy-Muffler
41. 530057848 Gasket-Paper Metal
42. 530015897 Screw
43. 545046701 Module
44. 530039227 Assy-Leadwire
45. 530016456 Screw
46. 530016463 Washer
47. 530094189 Washer-Clutch
48. 545173401 Bearing - Thrust
49. 530016420 Washer - Thrust
50. 530016469 Screw
Not Shown

Jonsered GC2126C Specifications

General

Brand	Jonsered
Model	GC2126C
Category	Trimmer
Language	English
