Replaced
545014396 - 9/28/07
NOTE : Illustration may differ from actual model due to design changes.
545014396
2/08/08
Page:
PARTS LIST
R
GC2126C
3
Parts List No.
Date
MODEL
Service Reference

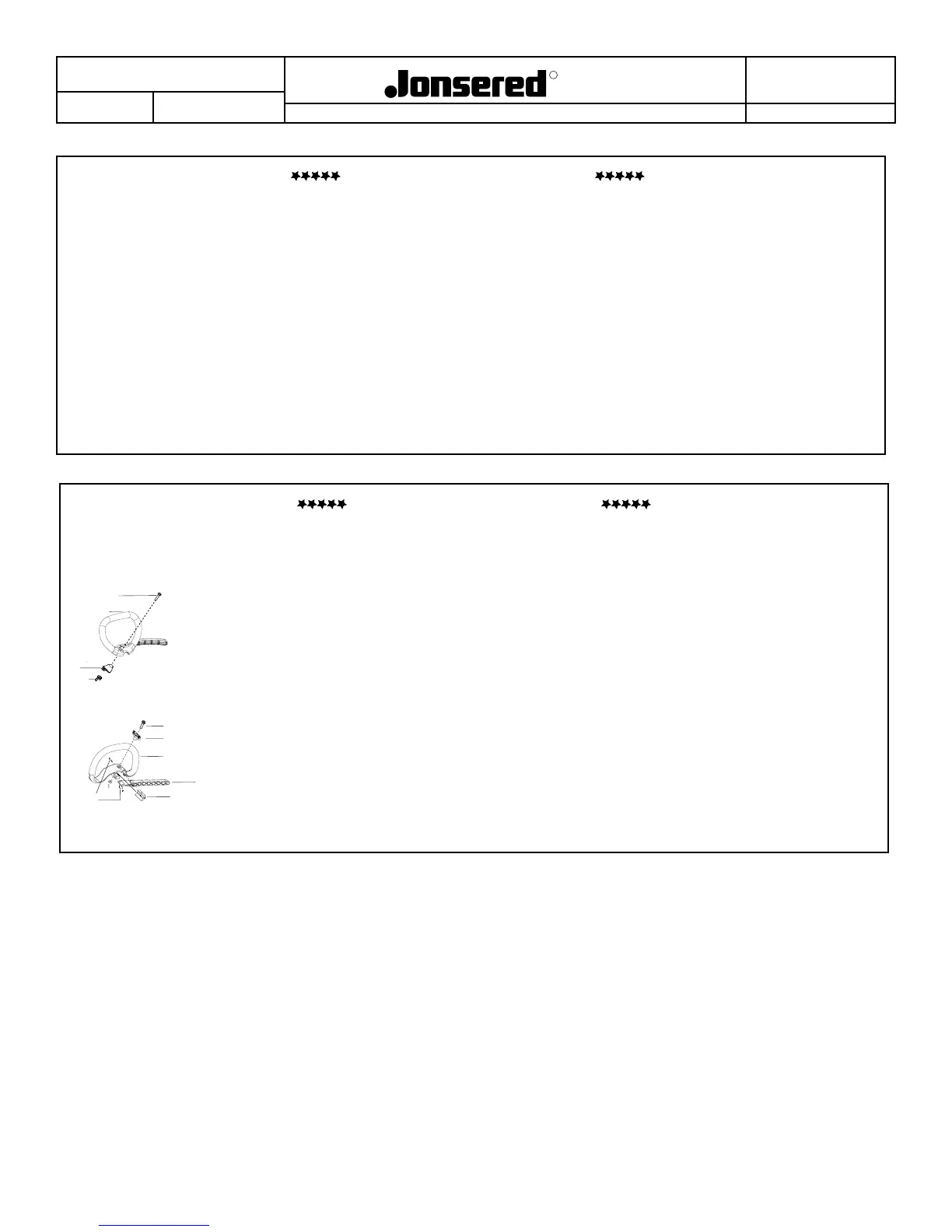

Note : Due to product improvements, your unit may have a different assist handle.
Please refer to the serial number on your unit and order the parts below.
Serial Number - 07202N and lower, please use the following parts:
Ref.# 1 - 530015820 - Bolt
Ref.# 2 - 545180810 Kit - Loop Handle w/”J” Handle (Includes hardware)
Ref.# 3 - 530059185 Handle Clamp
Ref.# 4 - 530016152 Wingnut
Serial Number - 07203N and higher, please use the following parts:
Page 1, Ref.# 15 - 503217516 Screw
Page 1, Ref.# 16 - 502197101 Nut - Square M6
Page 1, Ref.# 17 - 725238051 Screw
Page 1, Ref.# 18 - 503879001 Knob
Page 1, Ref.# 19 - 545144302 Assy - Loop Handle w/”J” Handle
Page 1, Ref.# 20 - 503997802 Handle “J” Plastic
Page 1, Ref.# 21 - 503940302 Spacer
1
2
15
16
17
18
19
20
21
Service Reference
Note : Due to product improvements, your unit may have a different carburetor.
Please refer to the serial number on your unit and order the parts below.
Serial Number - 07202N and lower, please use the following parts:
Page 2, Ref.# 67 - 545006060 Kit - Carburetor
Serial Number - 07203N and higher, please use the following parts:
Page 2, Ref.# 67 - 545081850 Kit - Carburetor
3
4
