Jonsered GR 2032D User Manual

English – 15

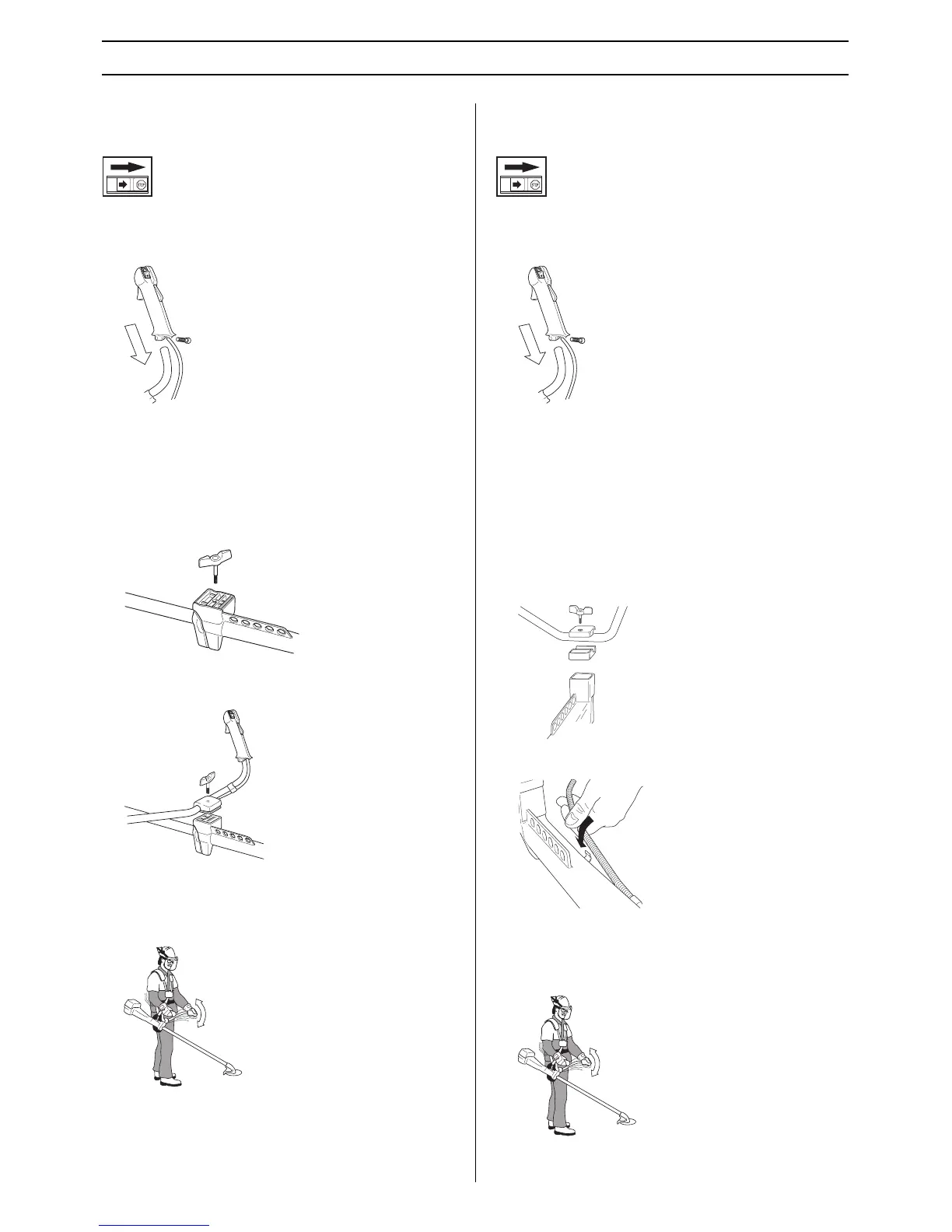

ASSEMBLY
Fitting the handlebar
(GR2032D)
• Remove the screw at the rear of the throttle handle.
• Slide the throttle handle onto the right side of the
handlebar, (see diagram).
• Align the screw hole in the throttle handle with the hole in
the handlebar.
• Refit the screw in the hole in the rear of the throttle handle.
• Screw the screw through the handle and handlebar.
Tighten it.
• Unscrew the knob from the handlebar mounting.
• Position the handlebar as shown. Fit the mounting
components and tighten the knob lightly.
• Put on the harness and hang the machine from the
support hook. Now make a final adjustment so that the
machine is in a comfortable working position when it
hangs from the harness. Tighten the knob.
Fitting the handlebar
(GR2036)
• Remove the screw at the rear of the throttle handle.
• Slide the throttle handle onto the right side of the
handlebar, (see diagram).
• Align the screw hole in the throttle handle with the hole in
the handlebar.
• Refit the screw in the hole in the rear of the throttle handle.
• Screw the screw through the handle and handlebar.
Tighten it.
• Remove the mounting components from the handlebar
mounting.
• Position the handlebar as shown. Fit the mounting
components and tighten the knob lightly.
• Fit the wiring as shown.
• Put on the harness and hang the machine from the
support hook. Now make a final adjustment so that the
machine is in a comfortable working position when it
hangs from the harness. Tighten the knob.
