Jonsered LT2115CM Spare Parts

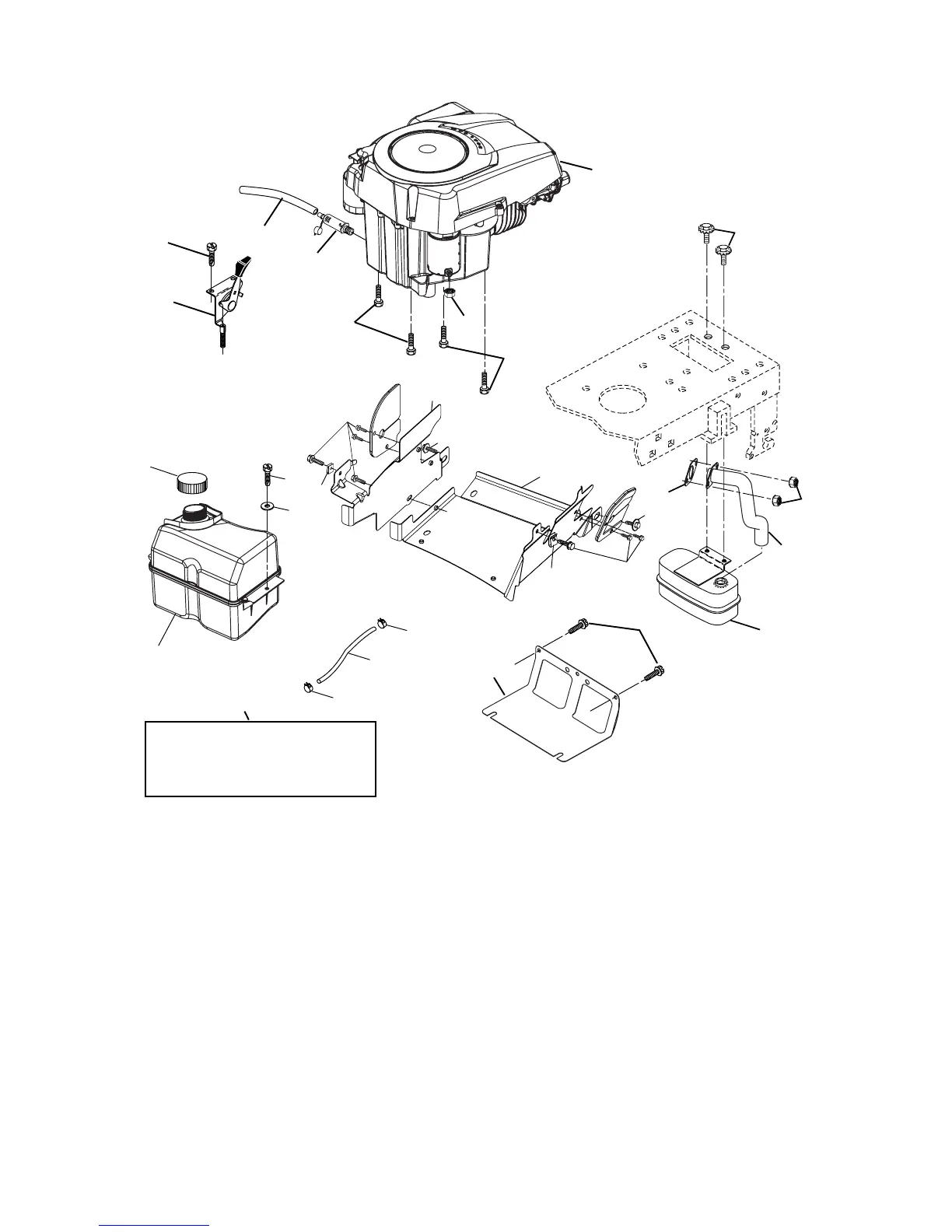

TRACTOR- -MODEL NO. LT2115CM (96061008101), PRODUCT NO. 960 61 00-81
ENGINE
2
1
OPTIONAL EQUIPMENT
Spark Arrester
29
23
45
44
46
32
31
33
37
33
engine-kohler_42
116
117
4
8
13
105
105
3
81
14
38
1 532 17 08-05 Control Throt/Ck
2 817 72 04-08 Screw Hex Thd Cut 1/4-20 x 1/2
3 - - - - - - - - Engine Kohler Model SV470
(Order parts from engine manu-
facturer)
4 532 18 86-55 Muffl er
8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems
13 532 18 59-09 Gasket Muffl er
14 532 14 84-56 Tube Drain Oil Easy
23 532 16 98-37 Shield Brn/Dbr Guard
29 532 13 71-80 Kit Spark Arrestor (Flat Scrn)
31 532 18 55-34 Tank Fuel 2.00
32 532 19 77-25 Cap Asm Fuel
33 532 12 34-87 Clamp Hose Blk
37 532 13 70-40 Line Fuel
38 532 18 16-54 Plug Drain Oil Easy
KEY PART
NO. NO. DESCRIPTION
44 817 67 04-12 Screw Hexwsh thdrol 1/4-20 x 3/4
45 817 00 06-12 Screw Hexwsh Thdr 3/8-16 x 3/4
46 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
81 873 51-04-00 Nut Keps Hex 1/4-20 unc
105 817 12 06-16 Screw 3/8-16 x 1
116 532 18 43-62 Nut Hex Flange Toplock M8-1.25
117 532 18 86-54 Tube Exhaust
119 532 40 06-01 Guard Asm. Engine LH
120 532 40 06-00 Guard Asm. Engine rH
121 532 19 66-88 Clip Threaded
122 532 13 77-29 Screw 1/4-20 x 5/8
123 817 67 05-08 Screw 5/16-18 x 1/2
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
8
8
120
119
121
121
122
122

Jonsered LT2115CM Specifications

General

Brand	Jonsered
Model	LT2115CM
Category	Lawn Mower
Language	English
