Jonsered LT2115CM Spare Parts

REPAIR PARTS
TRACTOR- -MODEL NO. LT2115CM (96061008101), PRODUCT NO. 960 61 00-81

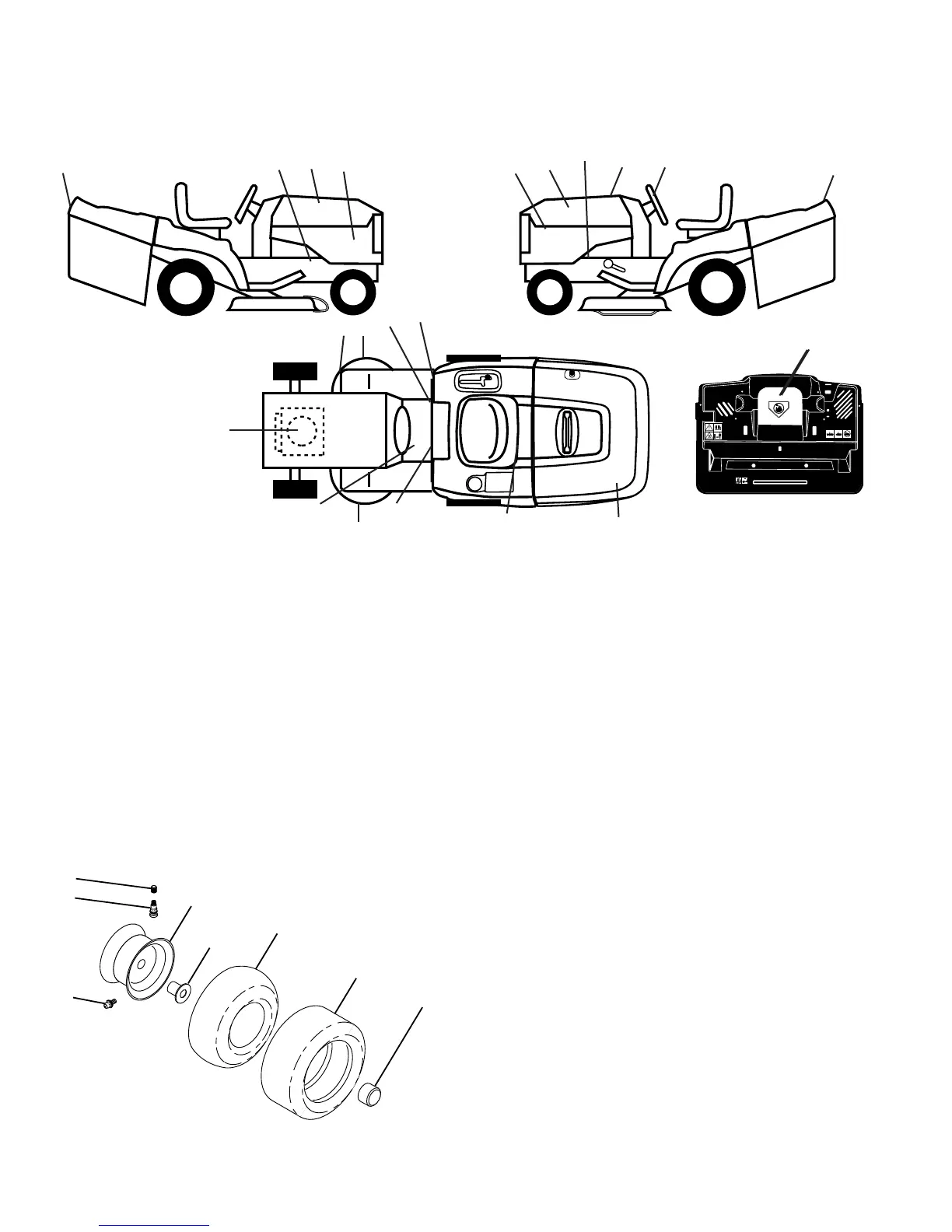

DECALS
WHEELS & TIRES
KEY PART
NO. NO. DESCRIPTION
1 532 40 03-89 Decal, Warning Sym. CE
2 532 19 68-41 Decal, Warning Eng. Sym.
3 532 18 95-53 Decal, Hood
4 532 40 10-23 Decal, Replacement
5 532 18 57-73 Decal, Wheel Steering
6 532 18 04-32 Decal, 100 DBA
7 532 18 88-76 Decal, Hood
8 532 18 88-26 Decal, Cover Fender
9 532 18 39-30 Decal, Fender Logo
10 532 14 50-05 Decal, Bat Dan/Poi P/L Sym Wpn
11 532 18 21-66 Decal, Mower Cut Finger Symbol
12 532 15 97-37 Decal, Brake/Clutch Symbol Lt
13 532 18 39-31 Decal, Bagger
14 532 15 97-36 Decal, Chassis Hot Muffl er
15 532 40 11-46 Decal, Warning Service/Fire
16 532 19 68-42 Decal, Warning Cutfi nger
17 532 14 08-37 Decal, Saddle Brake Parking
21 532 16 62-86 Decal, Hex Belt Sch 92 CRD
- - 532 13 83-11 Decal, Lift Handle
- - 532 18 04-35 Decal, Rear Plate CRD Symbols
- - 532 18 10-90 Pad, Footrest RH
- - 532 18 10-91 Pad, Footrest LH
- - 532 40 10-38 Manual, Operator's (Euro)
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Value Tire
2 532 06 51-39 Stem Value
3 532 10 62-22 Tire F Ts 15 x 6 0 - 6 Service
4 532 05 99-04 Tube Inner Front #35060
5 532 13 83-36 Rim Asm 6" front Silver Service
6 532 12 49-57 Fitting Grease
7 532 12 49-59 Bearing Flange
8 532 13 83-37 Rim Asm 8"rear Silver Service
9 532 10 62-68 Tire R Ts 18 x 9-8 Service
10 532 12 49-26 Tube Rear 9 5 x 8 Service
11 532 17 50-39 Cap Axle Blk 1 50 x 1 00
- - 532 14 43-34 Sealant, Tire (10 oz. tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
6
2
1
5,8
4,10
3,9
11
7
wheel_1
MAX
+
_
90N
MAX
+
_
150N
11
7
3
14
5
9
21
6
17
1
12
10
3
14
7
4
8
13
16
2
16
