Jonsered LT2115CM Spare Parts

TRACTOR- -MODEL NO. LT2115CM (96061008101), PRODUCT NO. 960 61 00-81

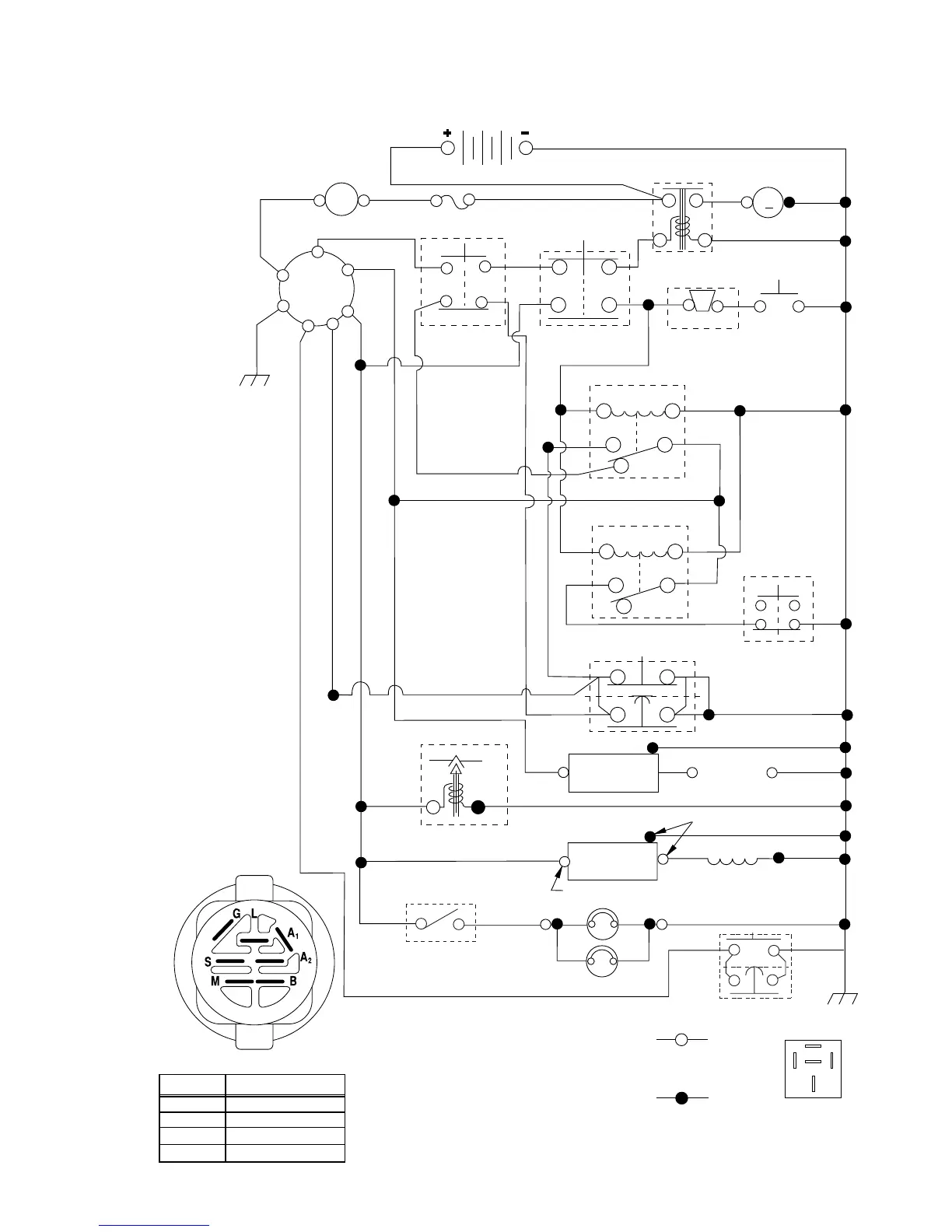

SCHEMATIC
BATTERY
STARTER
12VDC
STARTER
M
A
AMMETER
(OPTIONAL)
FUSE
REGULATOR
HEADLIGHTS
CARBURETOR SOLENOID
(iF SO EQUIPPED)
FUEL
LINE
ALTERNATOR
IGNITION
UNIT
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
CLUTCH / BRAKE
(PEDAL UP)
SOLENOID
G
B
S
M
A1
A2
L
RED
RED
RED
RED
RED
BLUE RED
GREEN
BROWN
WHITE
ORANGE
15 AMP
BLACK
BLACK
BLACK
BLACK
GRAY
BLACK
BLACK
BAGGER
INTERLOCK
(NO BAG,
CHUTE OR
PLUG)
FBI
SWITCH
FBI BUZZER
BLACK
BLACK
28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)
CHARGING SYSTEM OUTPUT
15 AMP DC @ 3600 RPM
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
87
87A
8586
30
RELAY
03050_197436 (WITH LIGHTS)
ATT'MENT CLUTCH
(CLUTCH OFF)
OPERATOR PRESENCE
RELAY
1
85 86
30
87
87A
SEAT SWITCH
(NOT OCCUPIED)
GROUNDING
CONNECTOR
OPERATOR PRESENCE
RELAY
2
85 86
30
87
87A
03050
LIGHT SWITCH
REVERSE SWITCH
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED CLIPS
WERE REMOVED FOR SERVICING OF
UNIT, THEY SHOULD BE REPLACED
TO PROPERLY SECURE YOUR WIRING.
IGNITION SWITCH
CIRCUITPOSITION
OFF
B+A1
RUN/OVERRIDE
B+S+A1START
M+G+A1
B+A1RUN
“MAKE”
L+A2
