24
To Assemble Bagger
Unfold bag by pivoting front bagger tube all the way
forward and pressing the bottom vinyl binding onto the
tube.
Inside the bag, install spreader bars and retainer springs
onto pins on both sides of bag as shown.
Press the vinyl bindings onto the sides of front bagger
tube.
NOTE: For tractors with an electric dump system, refer to the
kit instructions for more assembly procedures.
Manual bagger dumping only:
Slide the bagger dump handle through the hole in the
bagger top, install the clevis pin 10 x 44mm and secure
with retainer spring.
Push cap over end of bagger dump handle.
NOTE: For future use, the clevis pin may be removed in order
to use the handle to clear the chute in the event it has become
clogged.

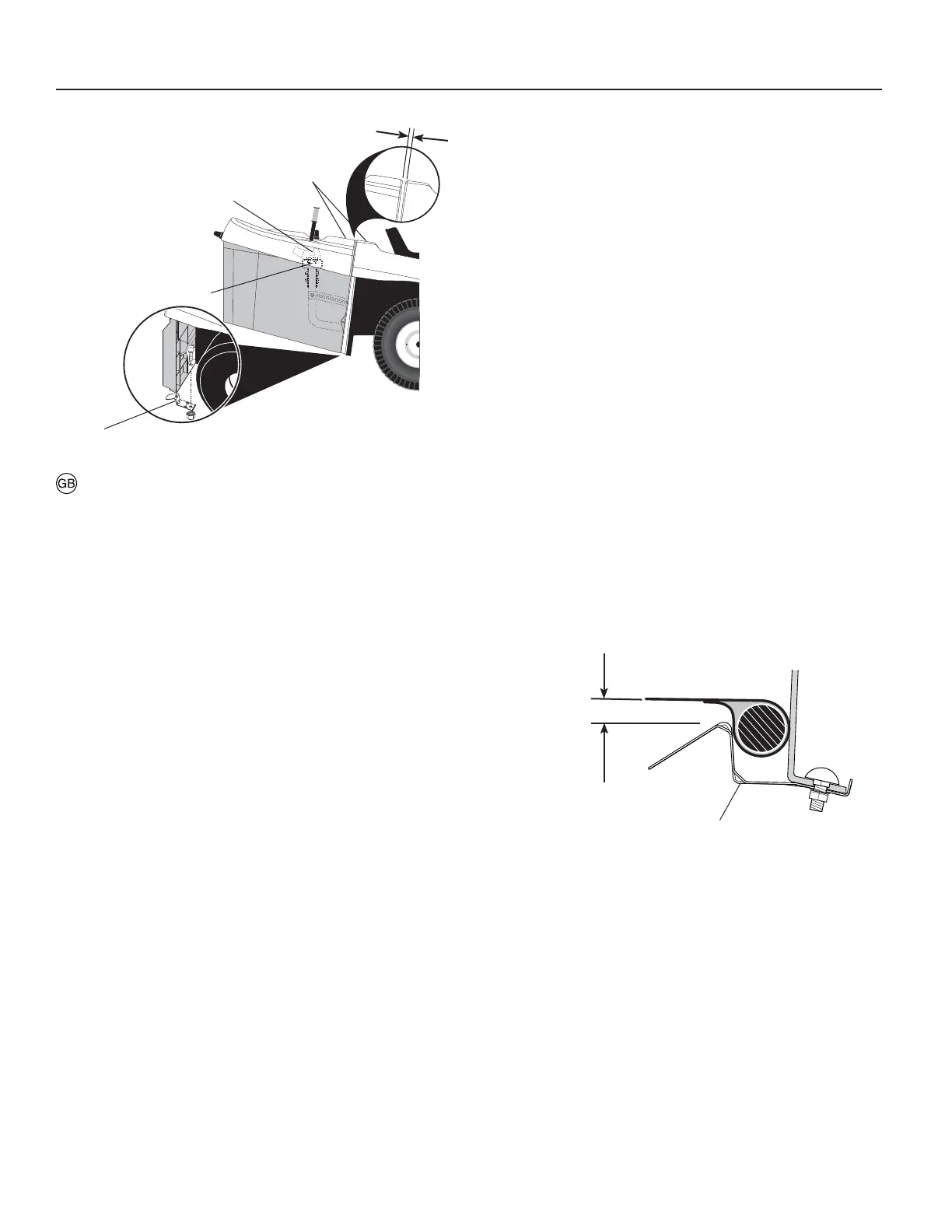

1. Top Surfaces Even
2. Horizontal Adjustment Brack et
3. Vertical Adjustment Brack et
4. Bagger Latch
02967
1
6MM (1/4") - 9MM (3/8")
2
3
4
To convert to bagging, mulching or discharge
See "Sec tion 5" of this manual.
02983
10MM (7/16") - 16MM (5/8")
4
Bagger adjustment
For proper bag function and appearance, it may be nec es-
sary to adjust the bagger assembly. There should be 6mm
(1/4")-9mm (3/8") gap between the bagger top and fender and
the bagger top surface should be even with the top surface
of the fender. To adjust bagger position:
Horizontal adjustment
Slightly loosen the nuts securing the bagger RH and LH
hor i zon tal adjustment brackets. Loosen only enough so
the brackets keep their position, but allow them to be
moved.
Move the brackets the amount forward or back ward you
wish the bag assembly to move. Retighten the nuts
securely.
Vertical adjustment
Slightly loosen the nuts securing the vertical adjustment
brackets. Loosen only enough so the brackets keep their
position, but allow them to be moved.
Move the brackets the amount up or down you wish the
bag assembly to move. Retighten the nuts securely.
Reinstall the bagger as sem bly and check the bagger to
fender fit. If necessary, repeat the procedure until proper
fit is attained.
After proper fit is attained, remove bagger from tractor
and install bagger latch (4) to tractor back plate as shown.
Tighten securely.
Install and carefully lower bagger to actuate latch.
Measure distance between bagger and latch as shown.
If distance is not 10mm - 16mm carefully remove bagger
and repeat vertical adjustment as needed.
2
