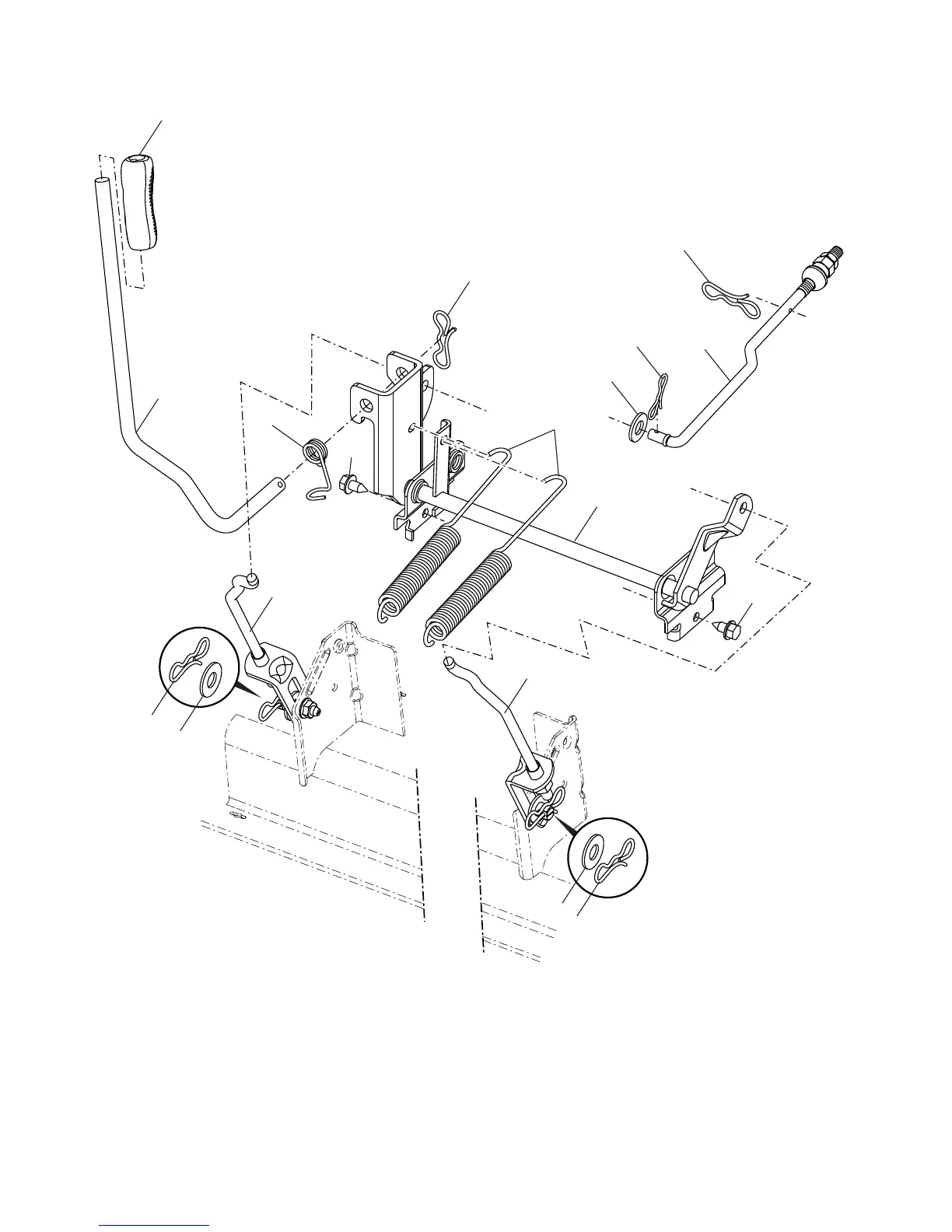

TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40
MOWER LIFT
7
3
87
10
88
2
89
90
87
98
97
97
91
lift-tex_3
91
89
87
89
87
2 532 19 52-23 Shaft Asm., Lift
3 532 19 52-30 Lever Asm., Lift
7 532 41 15-55 Grip, Lever
10 532 19 63-14 Spring Torsion
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 19 53-04 Spring Lift Assist
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
89 819 19 19-12 Washer Clear Zinc
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
91 532 19 79-84 Link Lift Susp Mower Rear
97 817 06 06-12 Screw 3/8-16 x .75 Smgml Tap/R.Z
98 532 19 52-64 Link Lift Susp. Front Mower
