Jonsered LT2223A2 Spare Parts

2
TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40

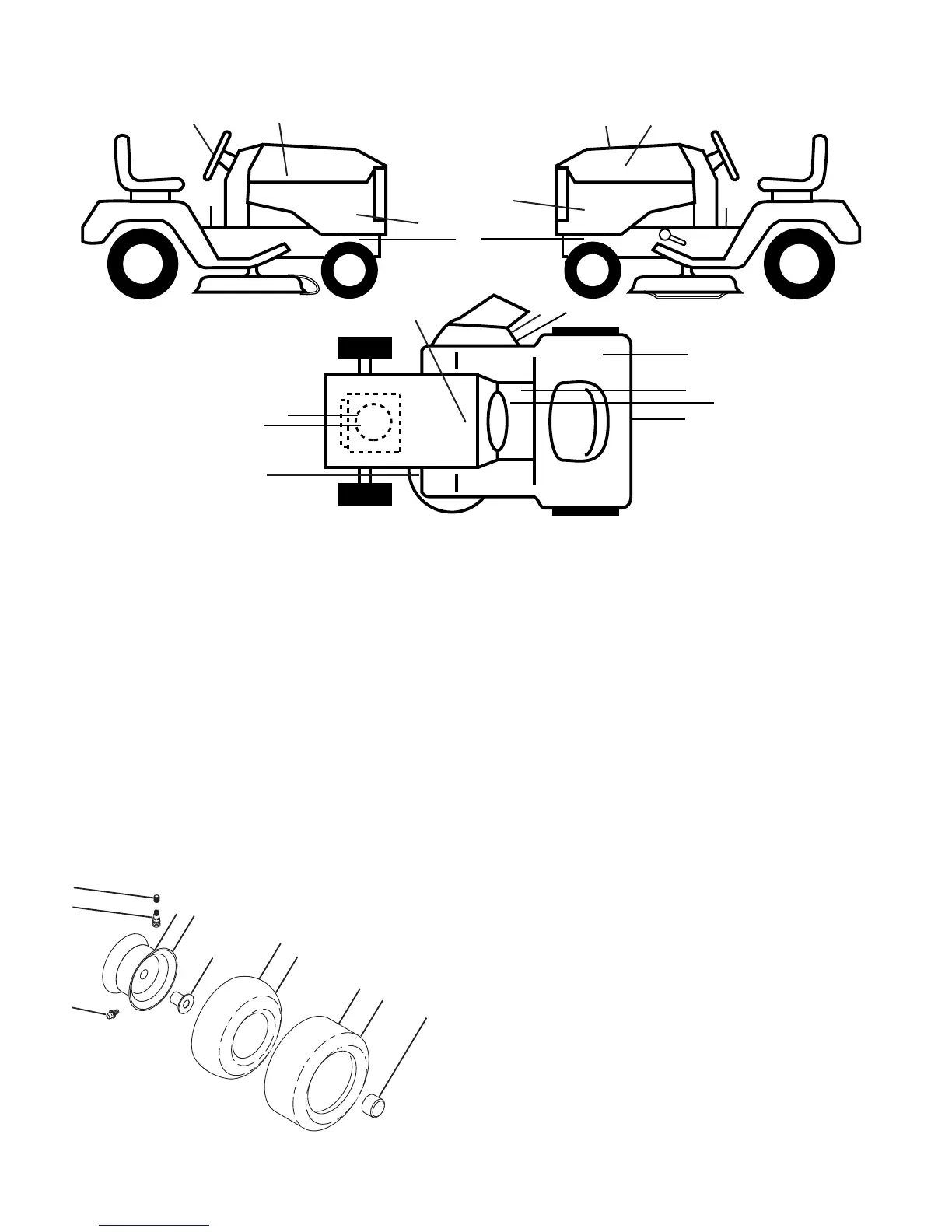

DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-vgt
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
17
16
16
1 532 05 91-92 Cap, Valve, Tire
2 532 06 51-39 Stem, Valve
3 532 14 45-09 Rim Assembly, Front
4 532 05 99-04 Tube, Front (Ser vice Item Only)
5 532 10 62-30 Tire, Front
6 532 12 49-57 Fitting, Grease (Front Wheel Only)
7 532 12 49-59 Bearing, Flange (Front Wheel Only)
8 532 17 50-39 Cap, Axle (Front Wheel Only)
9 532 18 47-08 Tire, Rear
10 532 12 49-26 Tube, Rear (Service Item Only)
11 532 40 17-82 Rim Assembly, Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
14
5
1 532 40 03-89 Decal, Warning Sym.
3 532 19 68-41 Decal, Warning Engine
5 532 19 87-85 Decal, Schematic
6 532 40 91-43 Decal, Engine
7 532 18 39-30 Decal, Cover/Belt Guard
8 532 18 21-66 Decal, Cutfinger
9 532 14 50-05 Decal, Battery, Dan/Poi
10 532 18 04-33 Decal, Fender DB/CE
11 532 15 97-36 Decal, Hot Muffler
12 532 15 97-37 Decal, Brake/Clutch Sym.
13 532 18 57-73 Decal, Steering Whl
14 532 40 93-74 Decal, Panel Side
15 532 19 63-57 Decal, Deflector
1
16 532 18 95-53 Decal, Hood Logo
17 532 41 17-83 Decal, Replacement
18 532 17 83-02 Decal, Cruise Control
19 532 14 08-37 Decal, Parking Brake
- - 532 16 69-60 Decal, Bypass
- - 532 16 25-98 Decal, Load Limit
- - 532 41 19-03 Pad, Footrest, LH
- - 532 41 22-79 Pad, Footrest, RH
- - 532 40 86-37 Manual, Oper (Euro)
- - 532 40 86-38 Manual, Oper (Scan)
- - 532 40 86-40 Manual, Oper (E-Bloc)
- - 532 40 86-41 Manual, Oper (Baltic)
14
13
9
8
12
11
3
18
7
6
15
19
10

Jonsered LT2223A2 Specifications

General

Brand	Jonsered
Model	LT2223A2
Category	Lawn Mower
Language	English
