Jonsered Z46R - Controls; Control Panel Layout; Motion Control Levers; Park Brake

5
9
8
7
6
10
11
12
13
14
1
3
2
4
This operator manual describes the Jonsered
Zero Turn Rider. The rider is tted with a four-
stroke overhead valve engine.
Transmission from the engine is made via
belt-driven hydraulic pumps. Using the left and
right steering controls, the ow is regulated and
thereby the direction and speed.

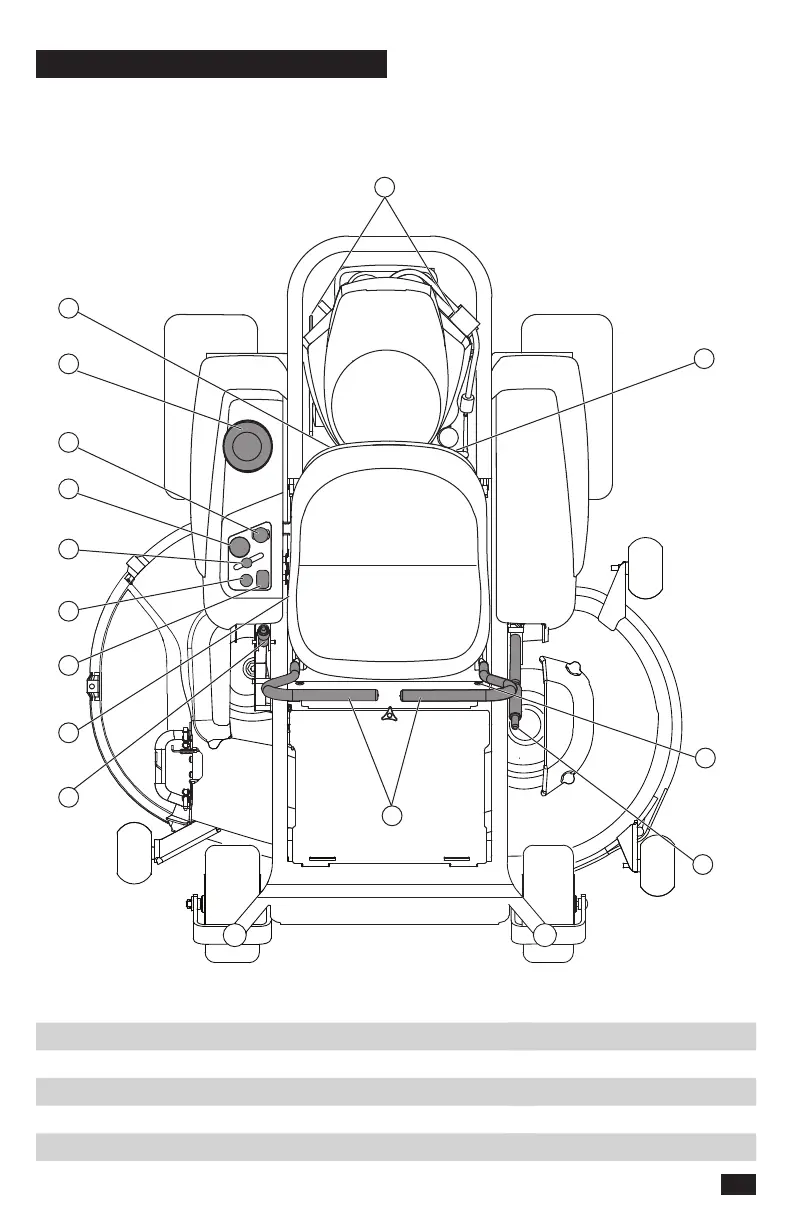

1. Motion control levers
2. Park brake
3. Tracking bolt, left
4. Fuses
5. Bypass Linkages
6. Fuel shut off
7. Fuel tank
8. Blade switch
9. Ignition switch
10. Throttle control
11. Choke control
12. Service meter
13. Seat lever
14. Deck lift
11
CONTROLS
