JOSAM AM20-D1 User Manual

JOSAM laser AM
Measuring system
10
Frame gauge

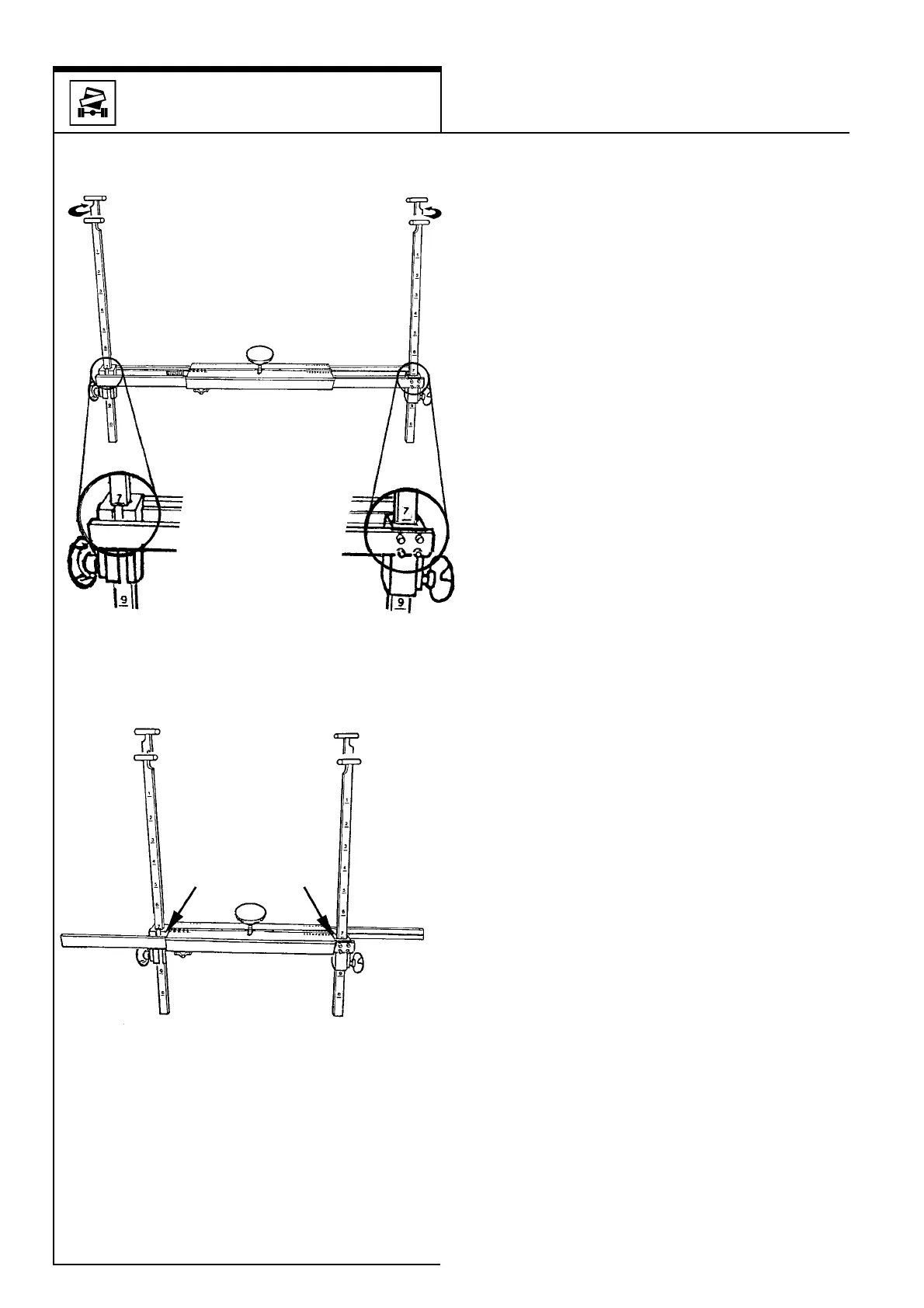

Checking the frame gauge
Mount hangers at both ends.
Both hangers should be placed with the straight
side or the cut side facing out.
They should hang at the same height.
Check that the numerical marks are aligned with
the upper edge of the end piece.
Lock with the knob.
Move together the guide rails on the frame gauge.
Both ends should face toward the housing.
Check that the guide rails are easy to move back
and forth on the housing.
