JOSAM laser AM
Measuring system
12

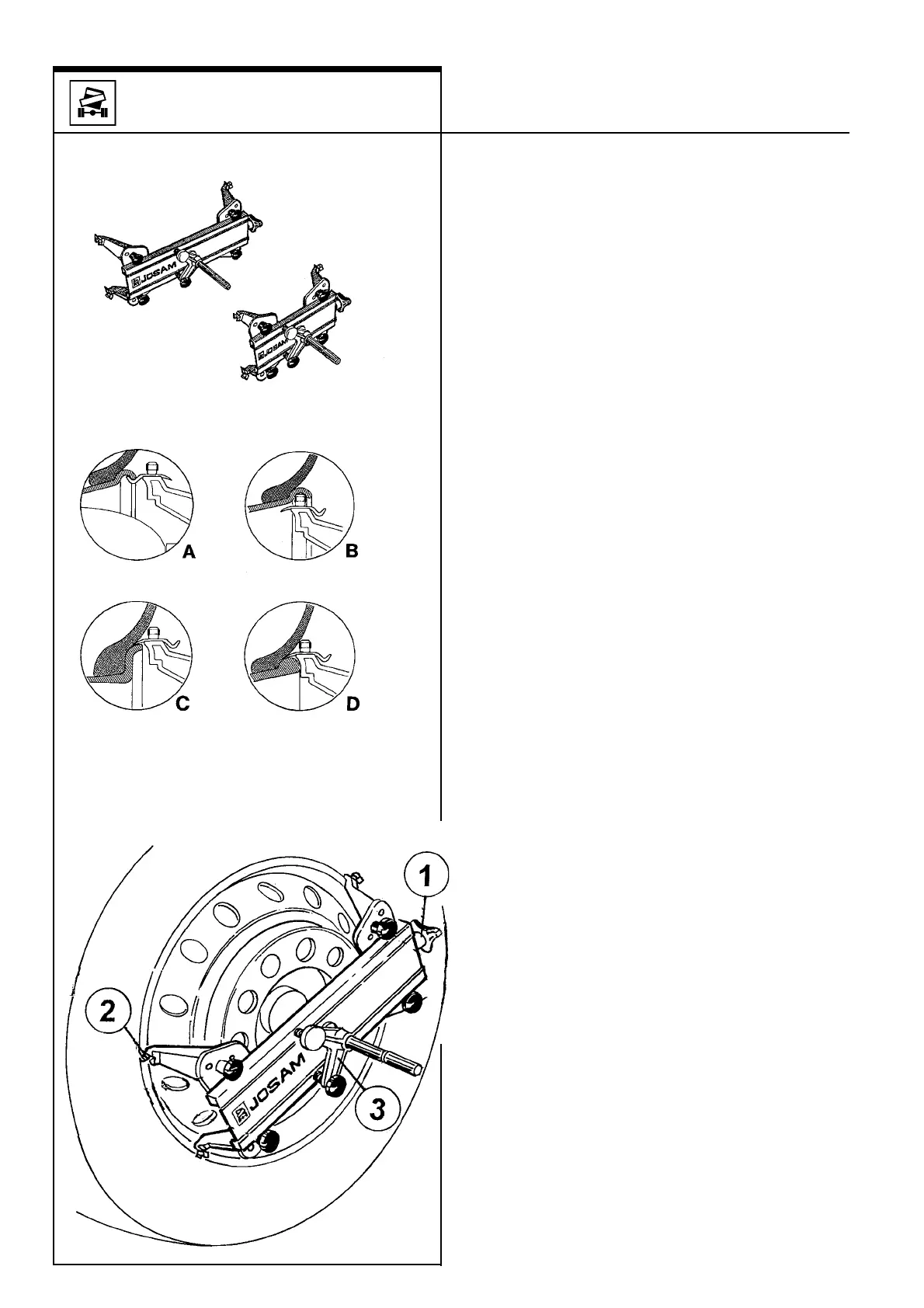

Wheel adapter AM10 - AM8
AM8
AM10
Wheel adapter AM10
Intended for rims between 16” – 24”.
The adapter is equipped with reversible grip hooks.
Wheel adapter AM8
Intended for rims between 13” – 19”.
The adapter is equipped with reversible grip hooks.
Attachment of the wheel adapter
Attachment is done with the knob (1) on the short
side of the adapter.
On rims with corners, the wheel adapter is
attached according to figures A and B and
tightened outwards.
On the rims shown in figure C or on aluminium
rims like figure D, the grip hooks are
reversed and attached between the tire and the rim
and tightened inwards.
During the clamping process, check that the grip
hooks are gripping properly on the rim edges
(figures A and B) or gripping in between the tire
and the rim (figures C and D).
Press the adapter against the rim during the
clamping with the knob (1).
(1) Knob for clamping
(2) Grip hooks
(3) Adjustment arm
