JOSAM laser AM
Measuring system
50
Measurement of front axles
V=Vertical line
A=Kingpin inclination
V
A

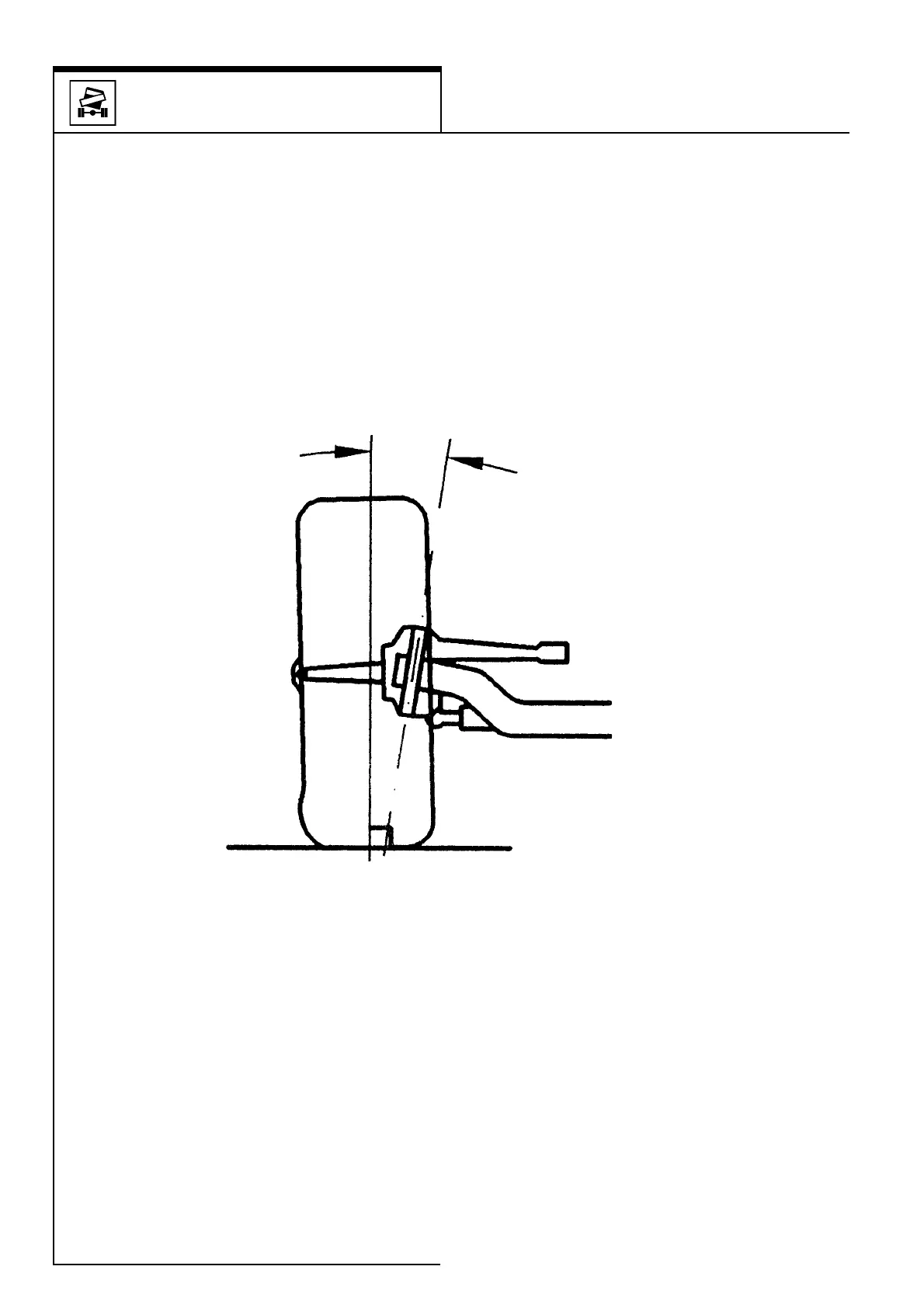

Measurement of KPI (kingpin inclination)
Kingpin inclination
The upper part of the kingpin inclines inward when seen from behind.
Measurement in degrees (
°
) and minutes ( ´ ) from the vertical line.
49
51
Table of Contents
Introduction
2
Table of Contents
3
Measuring Equipment
4
Preparations before Measuring
10
Checking of Frame Gauge
10
Hanging the Frame Gauges
18
The Test Report Sheet
23
Measurement of Rigid Axles
26
Toe-In/Toe-Out
27
Measurement of Camber
36
Measurement of Front Axles
40
Measurement of out of Square Front Axle
44
Measurement of Camber
45
Measurement of Caster
47
Measurement of KPI
51
Measurement of Toe-Out on Turn (TOOT)
54
Measurement of Maximum Turn
55
