JOTRON electronics a.s.
December, 99
Page 15
⑨
HEADPHONE CONNECTOR
The headphone connector outputs the audio to a headphone instead of the internal
loudspeaker.
The loudspeaker is automatically switched off when a jack is connected in the socket.
Volume control will work adjust the level in the headphone instead of the
loudspeaker.
⑩

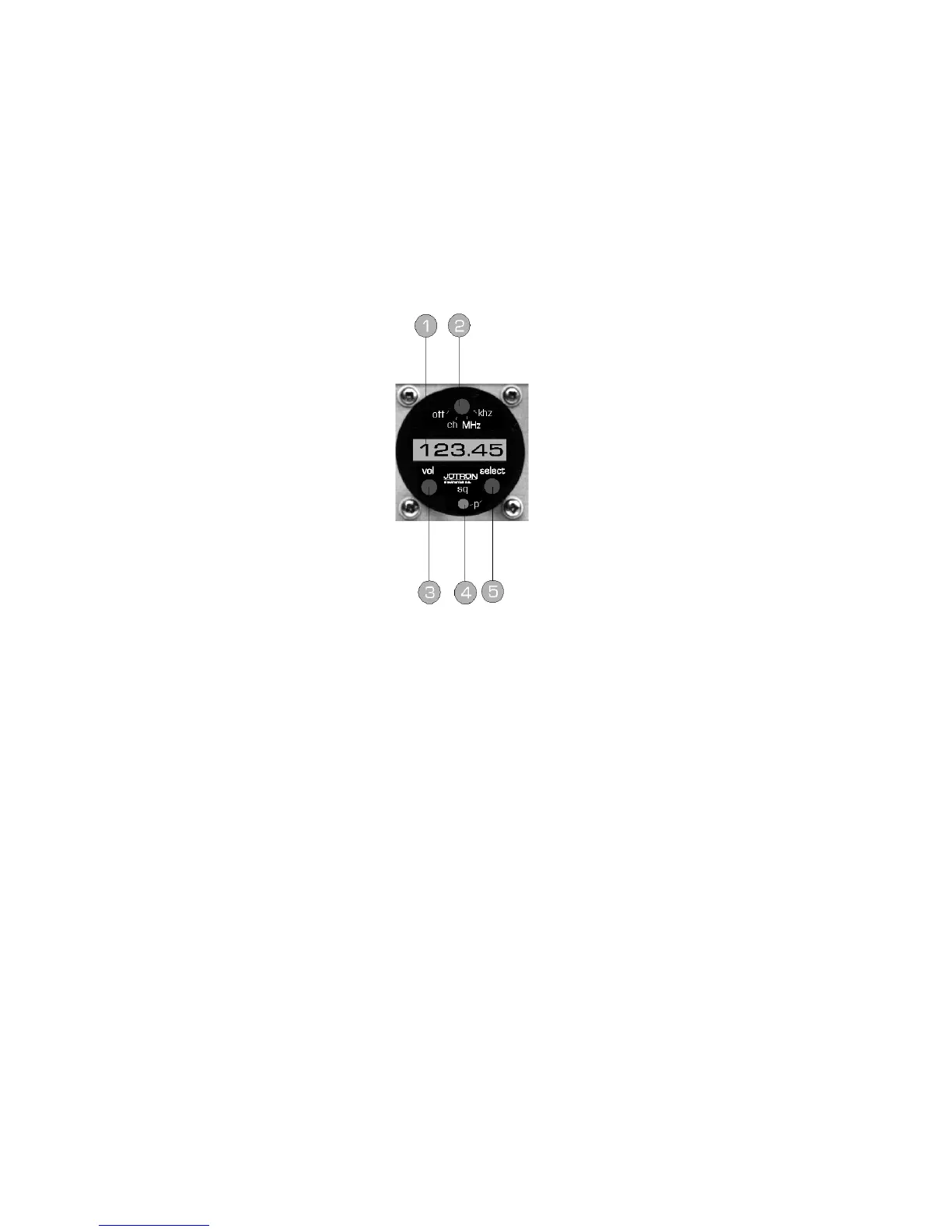

TR-6201, Driver unit.
❶
Display.
Displays the operating frequency or information when storing or recalling memory
channels.
❷
Function switch.
The switch has 4 positions.
In OFF position the transceiver is switched off.
In CH position 8 different channels can be selected with the SELECT switch.
In kHz position the frequency is changed in 25 kHz steps by the SELECT switch.
In MHz position the frequency is changed in 1 MHz steps by the SELECT switch.
❸
VOLUME pot. meter.
By turning the knob clockwise the volume of the internal loudspeaker is increased.
The knob has no effect on the line output level.
❹
SQUELCH button.
The SQUELCH button toggles the squelch on and off.
Squelch level is preset by an internal pot. meter.
