4.5 Fitting a fl ue pipe with a rear outlet
The product is supplied from the factory with the smoke outlet
fi tted for the top outlet. To use the rear outlet, proceed as
follows

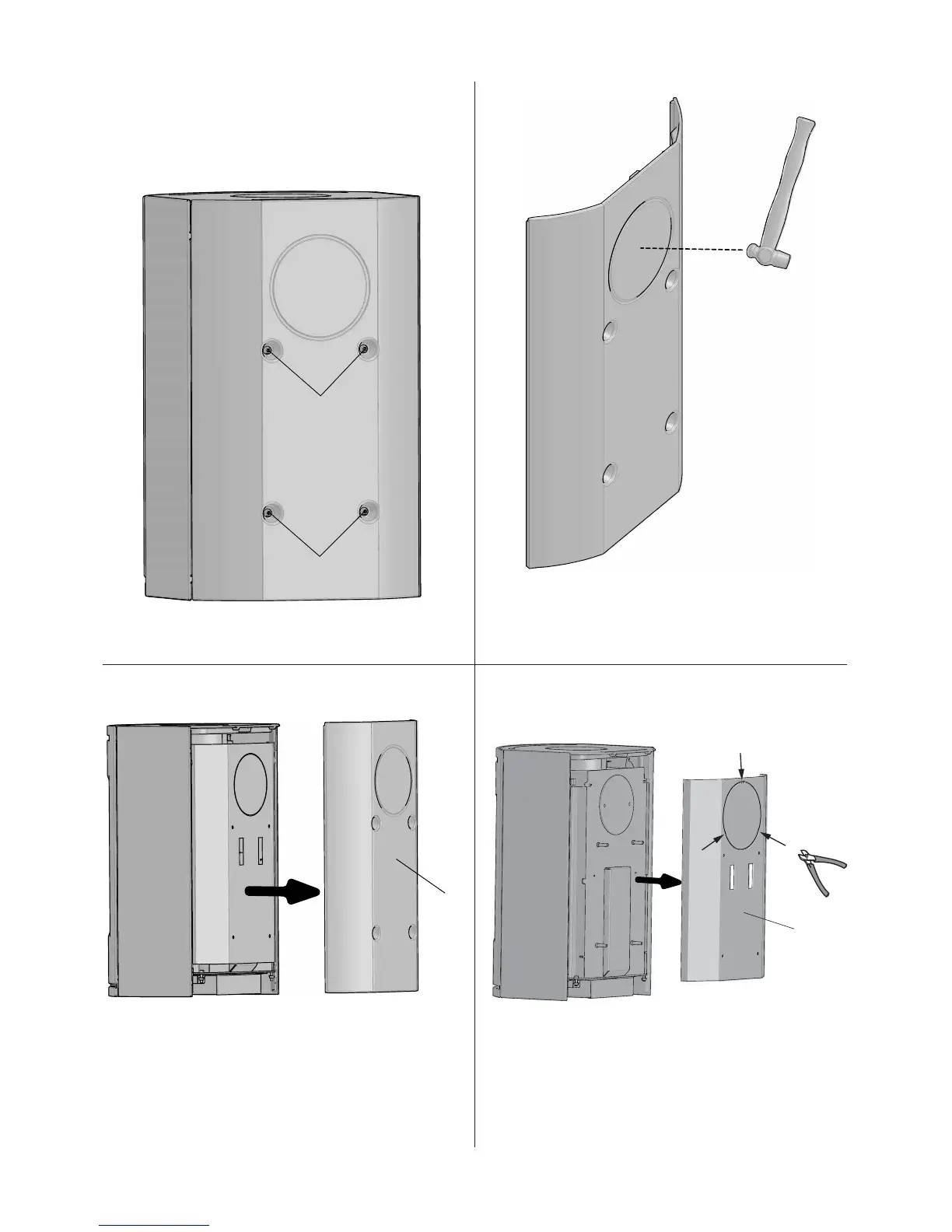

Fig. 19
A
A
1. Remove the four screws (A).
Fig. 20
B
2. Unhook the rear plate (B).
Fig. 21
A
3. Knock out the cover (A) with a hammer.
Fig. 22
A
B
B
B
4. Lift off the inner rear plate (A).
5. Then clip out the cover at the four points shown (B).
