19

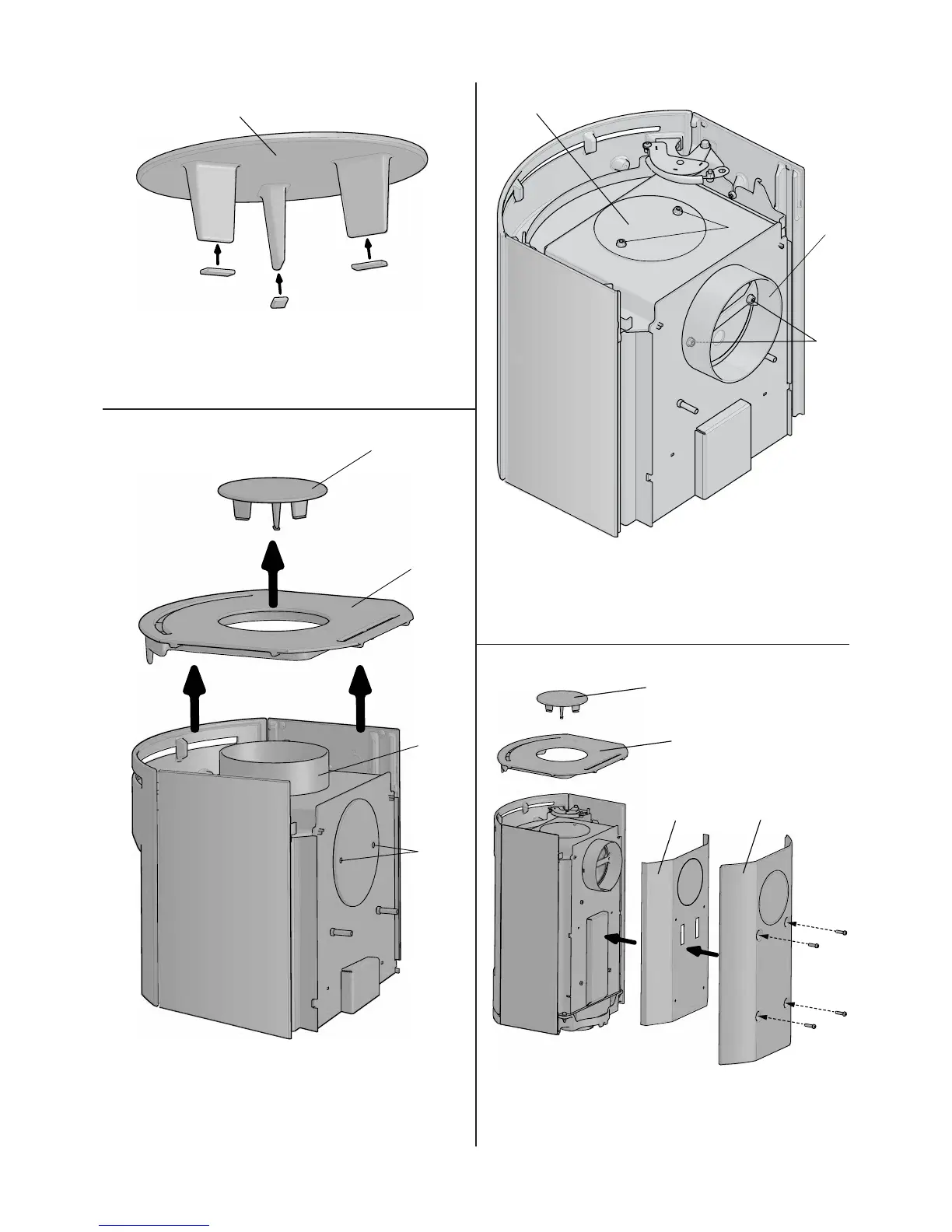

Fig. 23
A
A
A
B
6. Cut the supplied gasket (A) into three lengths to fi t the
tabs. Place the gaskets on the ends on the three
7. tabs on the top cover (B).
Fig. 24
C
D
B
A
8. Lift off the top cover (A) and the top plate (B) and place
them to one side.
9. Unscrew the screws in the rear smoke outlet cover (C) and
remove the cover.
10. Unscrew the smoke outlet (D).
Fig. 25
B
B
A
D
11. Fit the smoke outlet (A) to the rear vent and screw it on
with the same screws (B) that it was attached with.
12. Fit the smoke outlet cover (C) to the top outlet using the
same screws (D) that it was attached with
Fig. 26
A
B
C
D
13. Position the inner (A) and outer (B) rear plates on the burn
chamber and screw them on using the same 4 screws they
were attached with.
14. Fit the top plate (C) and top cover (D).
ENGLISH
