4.5 Selfclosing doormechanism
The product is delivered with a selfclosing doormechanism. If
wanted this can be removed.

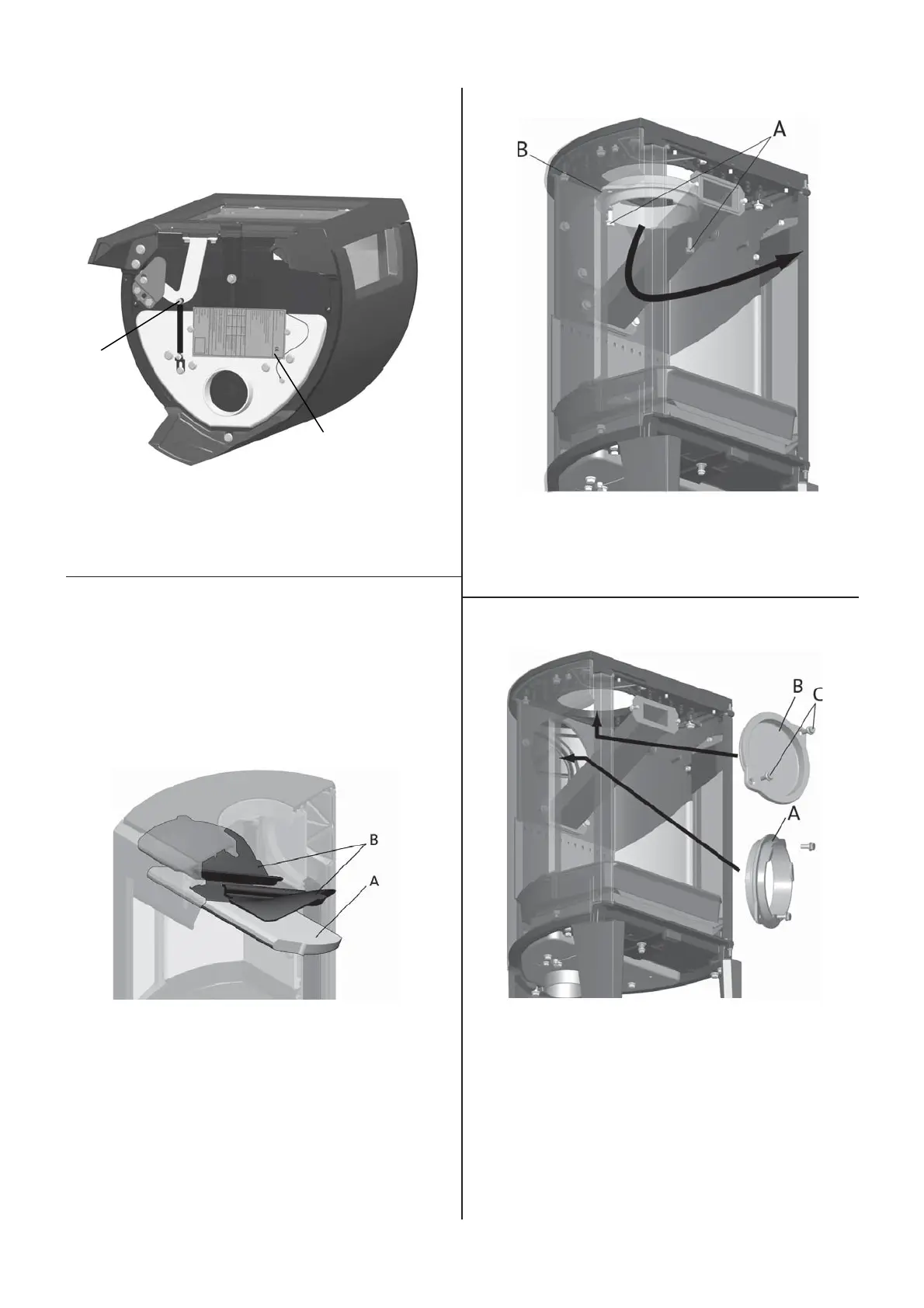

Fig. 3
g
g
A
B
1. Unscrew the screw and nut (fi g. 3 A).
2. Unhook and remove the spring.
4.6 Fitting the fl ue pipe with the rear
outlet
The product is supplied from the factory with the smoke outlet
fi tted for the top outlet.
NB! Proceed as follows for installation with a rear outlet:
Fig. 4
1. Lift the baffl e (Fig. 4 A) up carefully.
2. Remove one of the side burn plates by lifting them up a
little and then out. (Be aware if using tools, that vermiculite
plates may be damaged by rough handling).
3. Remove the baffl e.
4. Remove the other side burn plate.
5. Remove the exhaust defl ectors (Fig. 4 B).
Fig. 5
6. Unscrew the screws (fi g. 5 A) and remove the smoke outlet
(fi g. 5 B) from the top outlet from the inside of the burn
chamber.
Fig. 6a
7. Unscrew the screws (fi g. 6a C) and remove the cover (fi g. 6a
B) from the rear outlet from the inside of the burn chamber.

Jøtul F 163 Specifications

General

Material	Cast iron
Efficiency	78%
Weight	245 lbs
Fuel	Wood
EPA Certified	Yes
Flue Size	6 inches
Flue Outlet	Top or Rear
