Jøtul F 200 - Page 17

89
ENGLISH

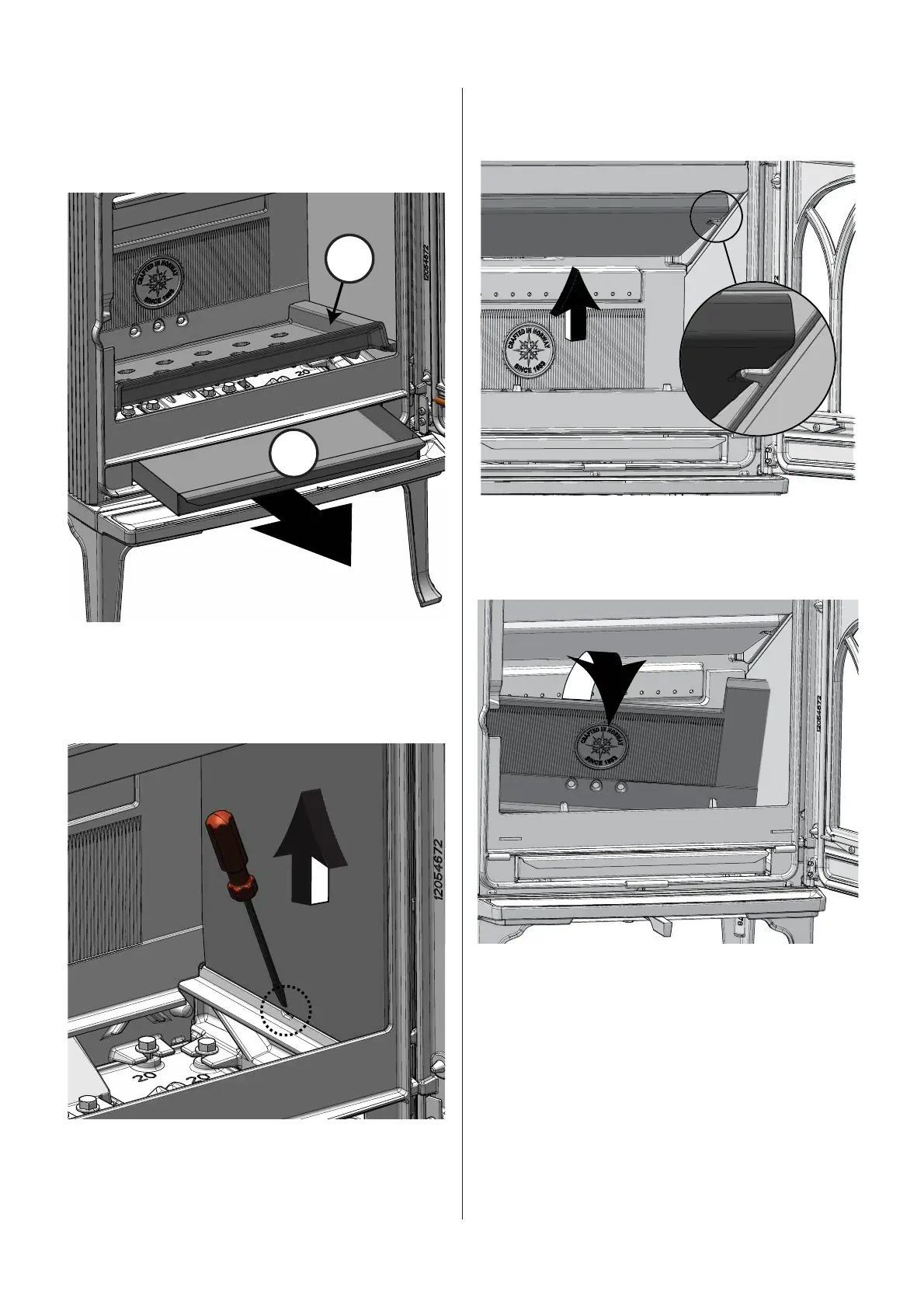

7.2 Replacing the exhaust defl ectors
Fig. 17
1. Lift the upper defl ector up to the rear edge. This is located
on a groove in the lower defl ector, see fi g. 18.
2. When refi tting, follow the same procedure in reverse order.
Fig. 18 Placement of the upper exhaust defelctor
Fig. 19
2
1
3
1. Lift the lower exhaust defelctor up to the rear edge.
2. The exhaust defelctor is released from the lugs in front.
3. The exhaust defl ector can now be lifted out.
4. When refi tting, follow the same procedure in reverse order.
7.3 Replacing the burn plates and ash
grate
Fig. 20 Replacing the ash grate
1
2
1. Remove the ashtray.
2. Tilt the ash grate in front and edge it out.
Fig. 21 Replacing the side burn plates
OBS! The ash grate has to be removed fi rst
1. Use a screwdriver in the groove and tilt up the burner plate.
2. The burner plate is released at the bottom and can be edged
out.
3. This is done in the same way on the left side.
4. When refi tting, follow the same procedure in reverse order.
