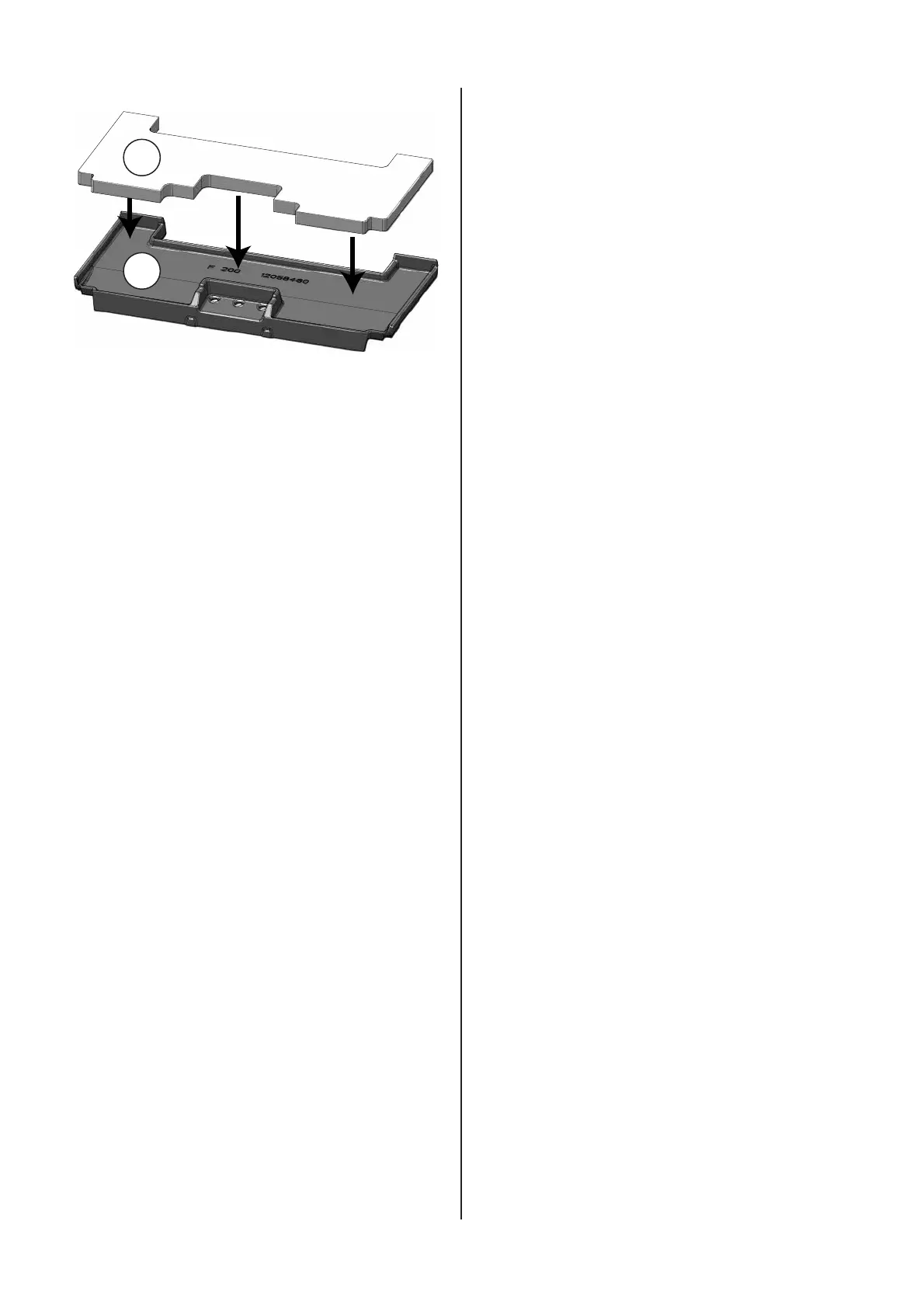

Fig. 22 Insulation mat on rear burner plate
A
B
1. the insulation mat (A) is inserted into the groove on the
back of the burner plate (B), before carefully refi tting the
burner plate as shown in fi gure 21.
8.0 Operational problems -
troubleshooting
Poor draught
Check the length of the chimney and that it complies with
national laws and regulations. (See also «2.0 Technical
data» and «4.0 Installation» (Chimney and fl ue pipe) in the
installation manual for information.)
Make sure that the minimum cross section on the chimney is
according to «2.0 Technical data» in the installation manual.
Make sure that there is not anything preventing the smoke
gasses from escaping: branches, trees, etc.
Upon suspicion of excessive/poor draught in the chimney,
seek professional help for measurement and adjustment.
The fi re extinguishes after a while
• Make sure that the fi rewood is suffi ciently dry.
• Find out whether there is negative pressure in the house,
close mechanical fans and open a window close to the
fi replace.
• Check that the air vent is open.
• Check that the fl ue outlet is not clogged by soot.
Unusual amount of soot accumulates on
the glass
Some soot will always stick to the glass, but the quantity
depends on:
• Moisture in the fuel.
• The local draught conditions.
• Air vent opening.
Most of the soot will normally burn off when the air vent is
opened all the way and a fi re is burning briskly in the fi replace.
9.0 Optional equipment
9.1 External air supply cover
Cat. no. 50061978
9.2 External air kit Ø80
Cat. no. 51047509
9.3 Short legs F 200 IT/F 205 IT
1 piece F 200:
Cat.no: 12061805 - Black paint (BP)
1 piece F 205:
Cat.no: 12061808 - Black paint (BP)
4 piece F 200:
Cat.no: 51061804 - Black paint (BP)
4 piece F 205:
Cat.no: 51061807 - Black paint (BP)
10.0 Recycling
10.1 Recycling packaging
Your fi replace is delivered with the following packaging:
• A wooden pallet that can be cut up and burned in the
fi replace.
• Cardboard packaging that should be taken to a local
recycling facility.
• Plastic bags that should be taken to a local recycling facility.
10.2 Recycling the fi replace
The fi replace is made of:
• Metal that should be taken to a local recycling facility.
• Glass that should be disposed of as hazardous waste.
The glass in the fi replace must not be placed in a regular
source segregation container.
• Vermiculite burn plates that can be disposed of in regular
waste containers.
11.0 Guarantee terms
1. Our guarantee covers:
Jøtul AS guarantees that the external cast-iron parts are
free from defects in materials or manufacturing at the time of
purchase. You may extend the guarantee on the external cast-
iron parts to 25 years from the date of delivery by registering
the product on jotul.com, and print out the extended guarantee
card within three months of purchase. We recommend that
the guarantee card be kept together with the receipt. Jøtul AS
also guarantees that steel plate parts are free from defects in
materials or manufacturing at the time of purchase for a period
of 5 years from the date of delivery.
