20
7.0 Service
Any unauthorised modifi cations to the product are prohibited!
Only original spare parts may be used!

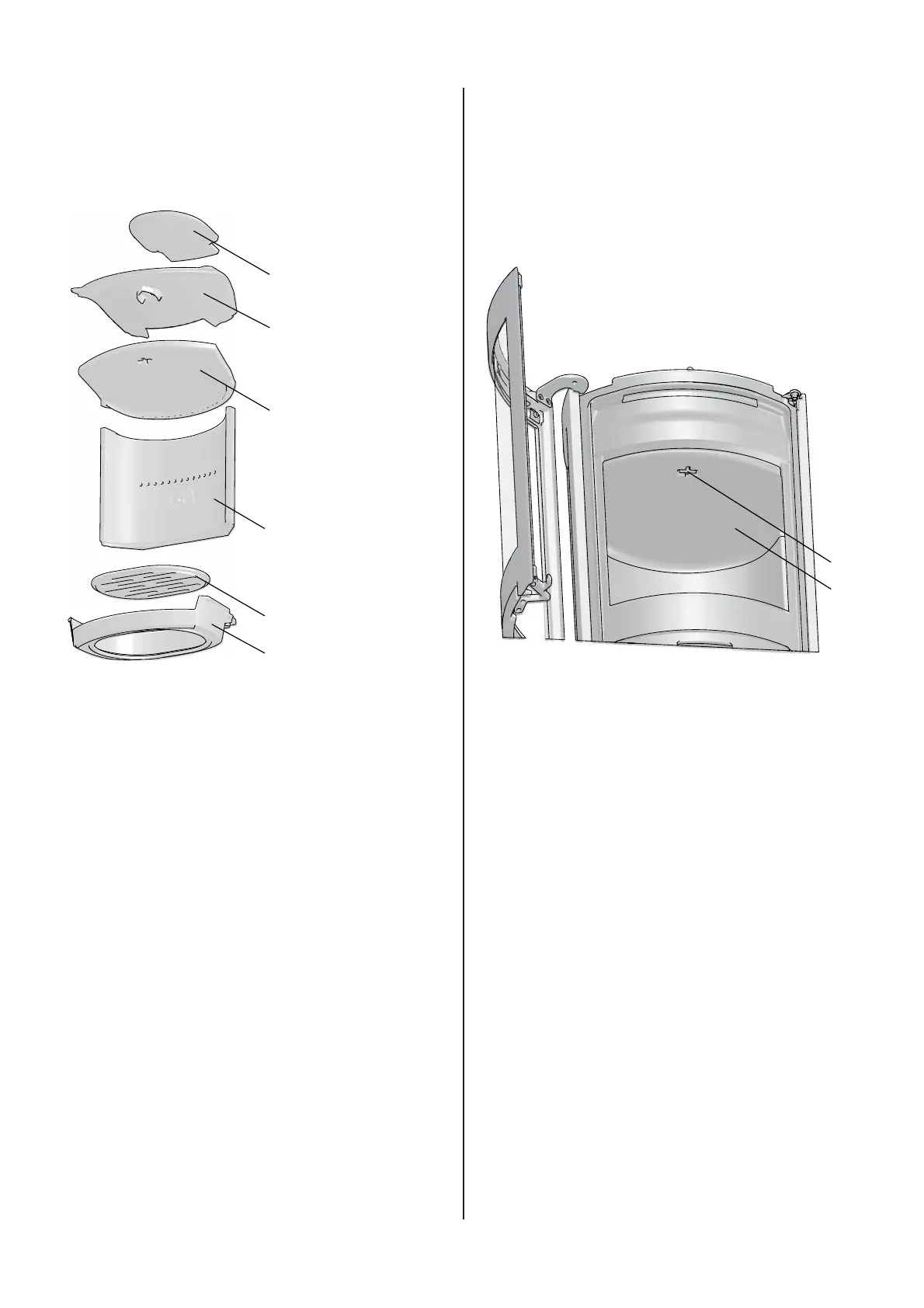

Fig. 32
Inner bottom
Fire grate
Burn plate
Baffle plate
Lower exhaust deflector
Upper exhaust deflector
7.1 Replacing parts in the burn
chamber
Use tools with great care. The Skamol panel (back burn plate)
should be handled with care to avoid damage.
Replacing the baffl e plate
Fig. 33
A
B
1. Lift the baffl e plate (A) and turn the key (B) 90° in the baffl e
plate (A) and then remove the key. Lift the rear edge of the
baffl e plate and tilt it out.
ENGLISH
