8
4.0 Installation
• Before installing the fi replace, check it carefully for any
signs of damage.
• The product is heavy! Ask someone to help you when
positioning and installing it.
• Make sure that furniture and other household items
are at a safe distance from the fi replace to protect
them from drying out.
• Do not place anything on the top plate of the stove as this
could cause permanent damage to the paint/enamel.
4.1 Prior to installation
• The standard product comes in two packages. One
contains the fi replace itself, the other contains the base or
pedestal in cast iron.
• When the product is unpacked, take out the ash pan and
its contents, the fi re grate, burn plates, baffl e and exhaust
defl ector. See fi g. 20, 21, 33 and 34.

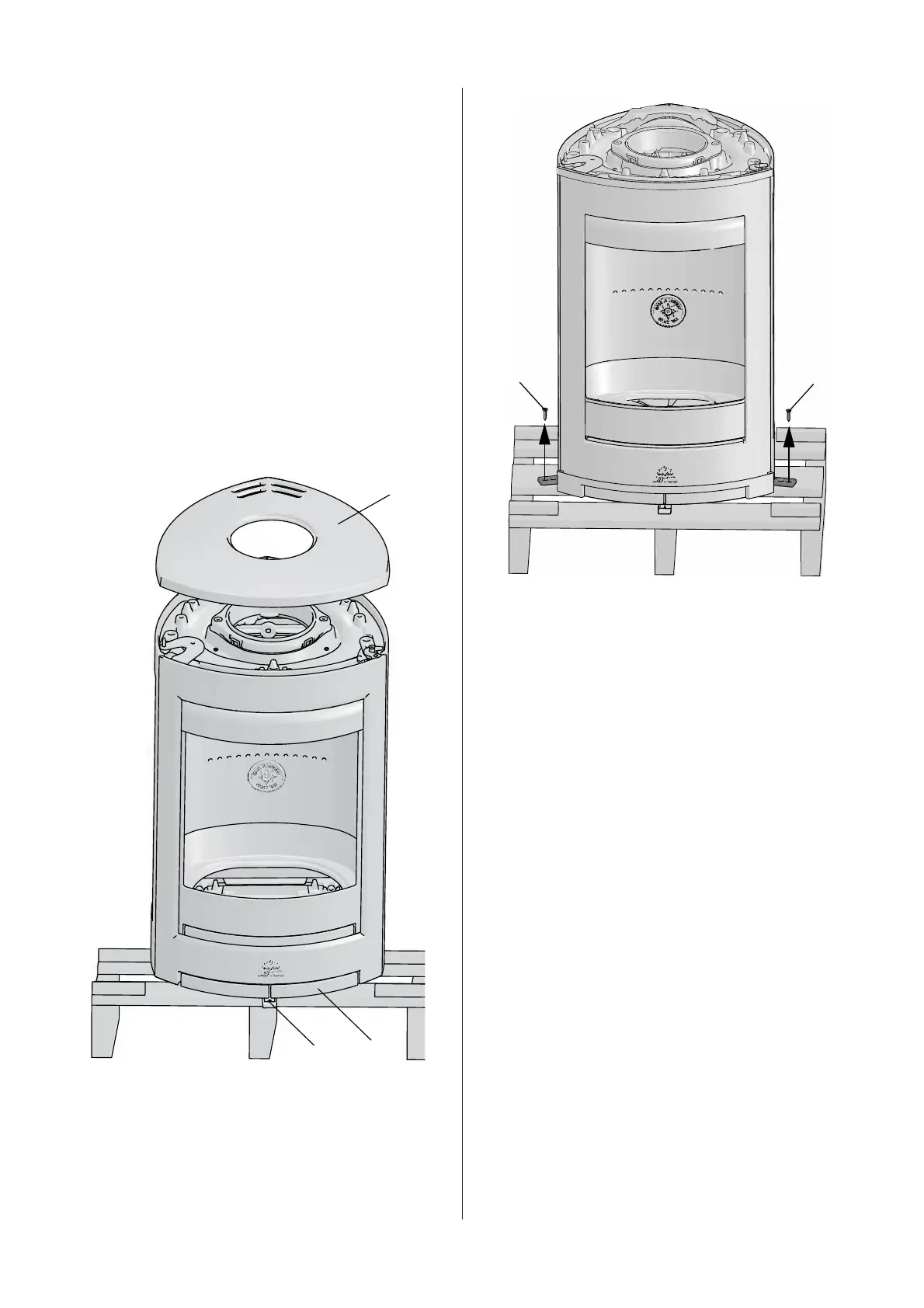

Fig. 3
A
B
B
1. Remove the top plate (A).
2. Check that the control handles (B) move freely.
Fig. 4
A
A
3. Remove the 4 transport screws (A) from the sides and rear.
ENGLISH
