10
ENGLISH

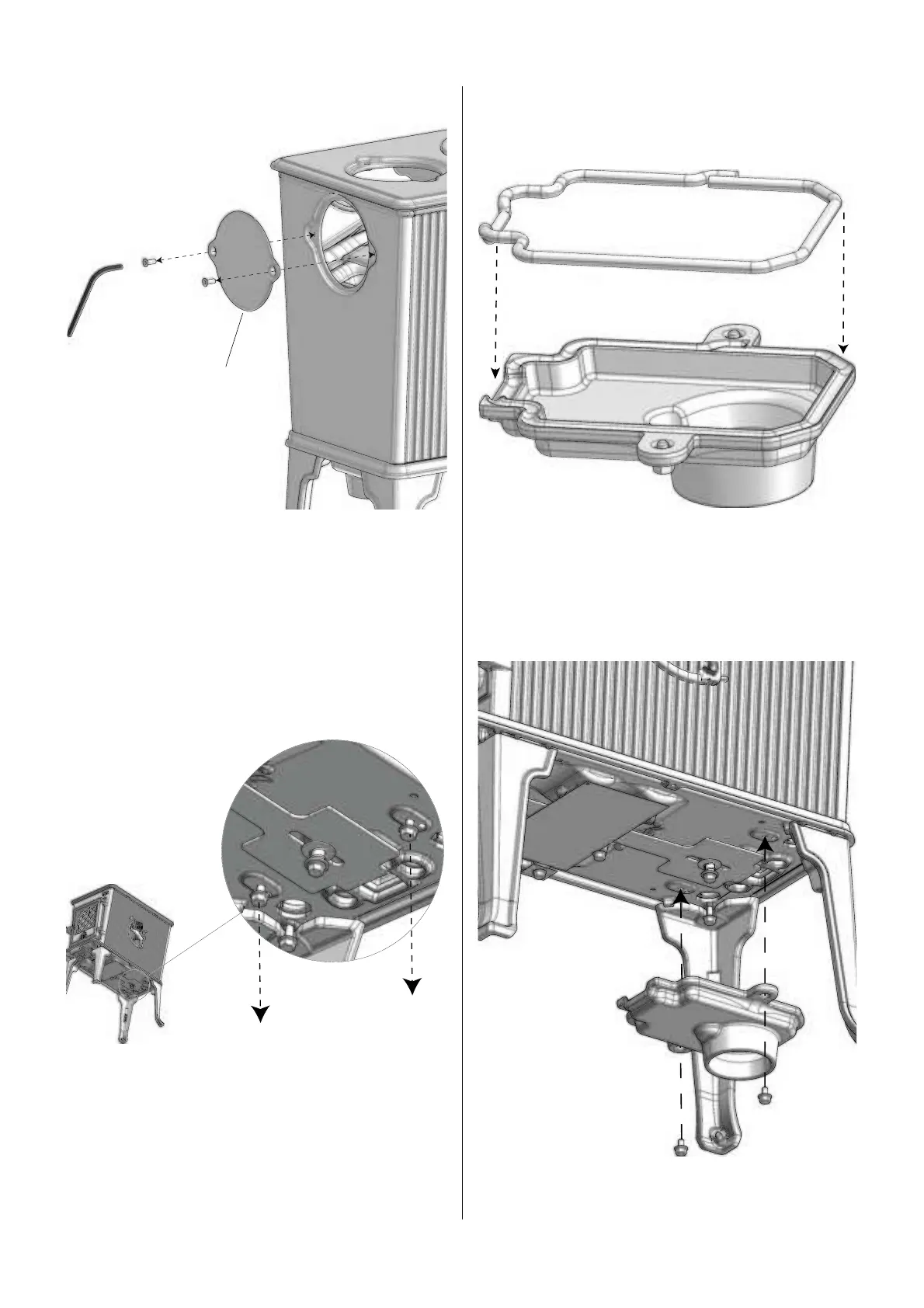

Fig. 7b
B
1. Switch places between smoke outlet (A) and smoke outlet
cover (B). Unscrew the two screws with an Allen key.
4.3 Assembly with an external air
supply (optional extra)
Fig. 8 Loosen the screws for the external air supply
adaptor.
1. The screws to be used for the external air supply adaptor
are mounted in the oven from the factory. These must be
loosened and used as shown in Fig. 10 if fresh air supply
is to be used.
Fig. 9 Installation of gasket on the external air
supply adaptor
1. Remove the protective paper from the supplied gasket
and place the gasket in the slot on the external air supply
adaptor.
Fig. 10 Mounting of the external air supply
1. The screws loosened in Fig. 8 are used to secure the
external air supply adaptor.
