4.6 Performance check
Once the product has been assembled, always check the
control handles. These should move easily and work in a
satisfactory manner.

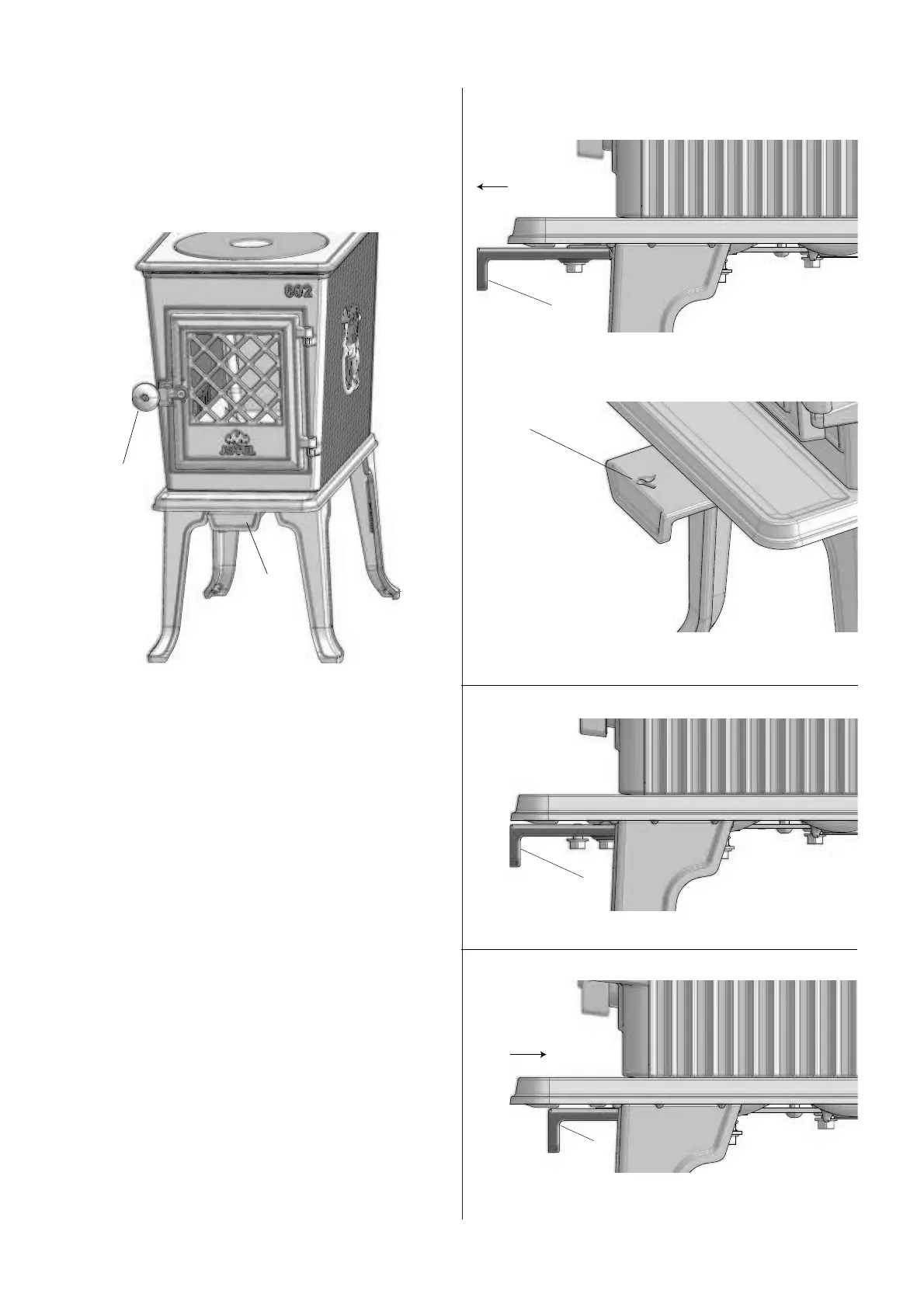

Fig. 14 The Jøtul F 602 ECO is equipped with the
following operating options:
A
B
Air and ignition vent (A). Adjusts in and out in the horizontal
direction (see fi g. 15-17)
Door handle (B). Opens by lifting the handle up and pulling
out.
Valve adjustment
Fig. 15
20mm
1
1. Pulled out completely : Open (used during ignition)
Fig. 15b
A
When the match symbol (A) is displayed, the valve is open for
ignition.
Fig. 16
2
2. Edge-to-edge with ash lip: Max air after ignition
Fig. 17
-25mm
3
3. Pushed in: Closed
