Ausgabe 18.01.2017 Copyright by Joy-IT 36
3
Arcade-GameStaon
6. Assembly instrucons

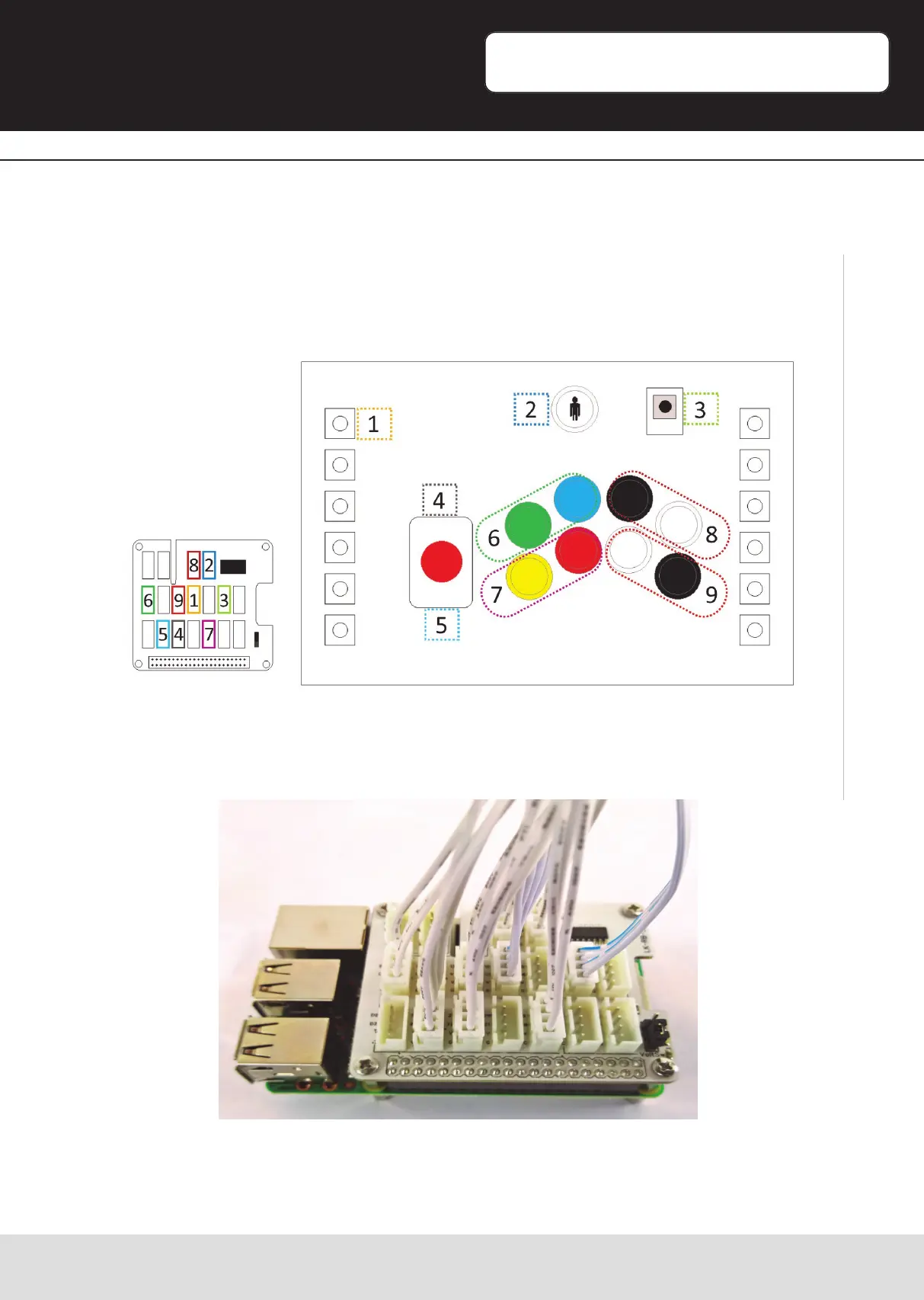

You have to place the cable ends on the baseboard. Which end belongs to which port is
shown below:
