Joy-it Ard-CNC-Kit1 User Manual

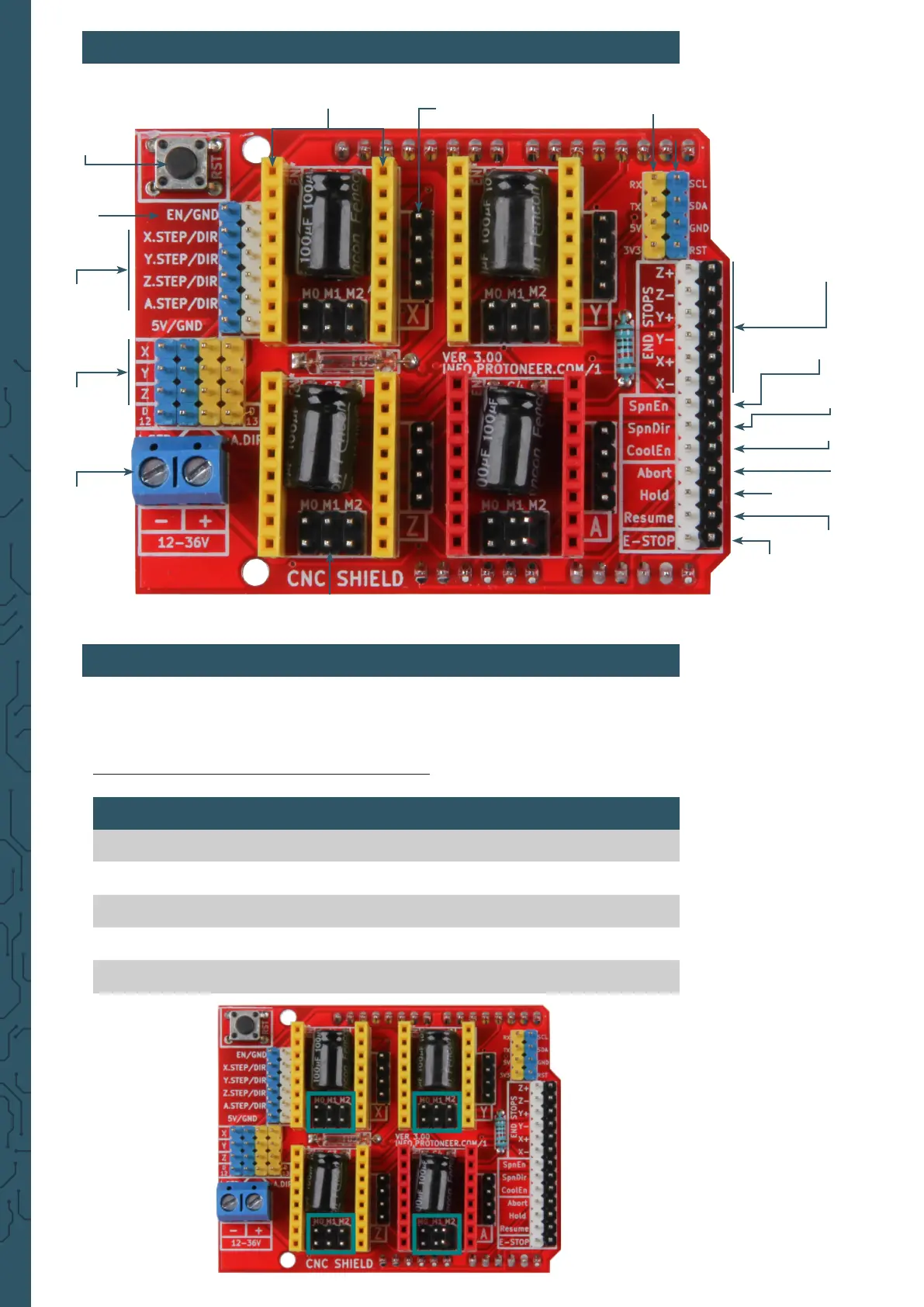

3. PIN ASSIGNMENT
4. MICROSTEPS
To determine the step size for the motors, you can make a setting via jum-
pers on the main board. The corresponding pins are marked in the following
picture.
Jumper positioning for microsteps
M0 M1
M2
MICROSTEPS
Yes No
No
Half step
Yes Yes
No
1/8 step
No Yes
No
1/4 step
No No
No
Whole step
Yes Yes
Yes
1/16 step
Anschluss
Motortreiber
Anschluss
Motor
I
2
C
Endpositionsschalter
Spindel aktivieren
Spindel steuern
Kühlung aktivieren
Abbrechen
Halten
Fortsetzen
Not-Aus
Jumper für
Mikroschritte
Stromver-
sorgung
Achse
klonen
Motor-
steuerung
Enable
Reset Taste
UART
