3. USAGE OF THE DEVICE
When the measuring instrument is switched on, the last active menu is
automatically called up.
A total of eight dierent menus are available, through which you can na-
vigate using the K1 and K2 keys. Press and hold the K2 button to open the
submenu in the respective menu.
The following menus are available:
1. Main menu
2. Record menu
3. QuickCharge recognition
4. QuickCharge protocol detection
5. Protocol trigger
6. System settings
7. System information
8. Simplied measurement overview

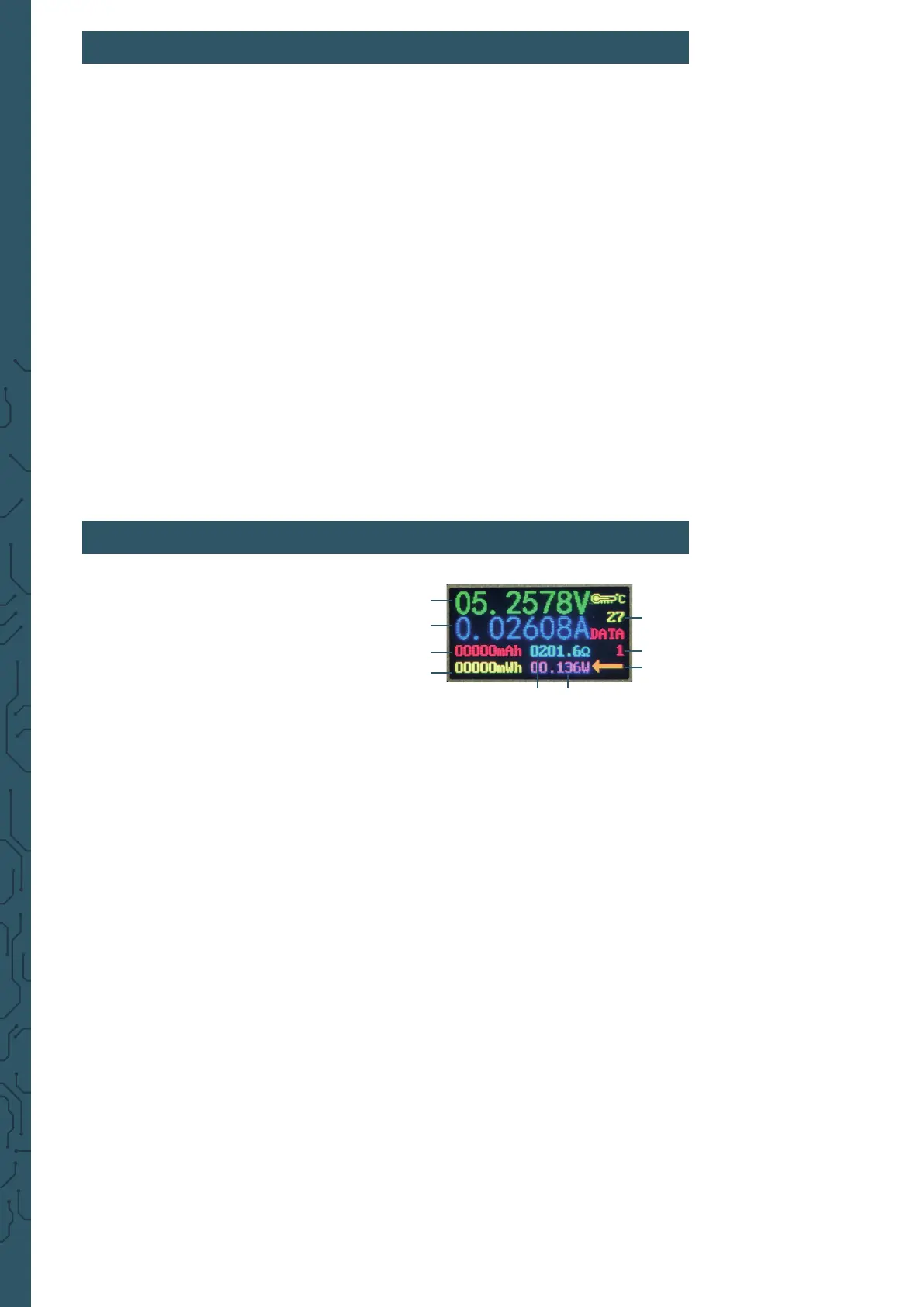

1. Measured voltage
2. Measured current
3. Measured charge
4. Measured energy
5. Measured load impedance
6. Measured power
7. Measured temperature
8. Selected data group
9. Current ow direction
Press and hold the K1 button to delete the current data group value.
Press and hold K2 to change the data group.
With selected data group 1, charge and energy values are stored and will be
continued when the device is restarted.
With selected data group 0, the values are also stored and displayed when
restarting, the values are ashing. However, if a charge of 1mAh is excee-
ded, the data is reset to 1mAh.
1
2
3
4
7
8
9
5 6
3.1 MAIN MENU
