5. MEASURING COMPONENTS
This measuring instrument can detect and measure diodes, Z-diodes,
double diodes, resistors, capacitors, inductors, thyristors, triacs, field
eect transistors, bipolar transistors, and batteries. In the following, you
will find information on how to measure a component and which values
can be measured for the specific components.
To measure a component you can use slots 1-3. Just make sure that you
do not connect two cables to the same channel, i.e. the same digit. So
you have to select any slot at 1, 2, and 3 for three connections.
To measure the breakdown voltage, use channels K and A. Connect the
positive pin to K and the negative pin to A. You will find further
information under Z-Diode.

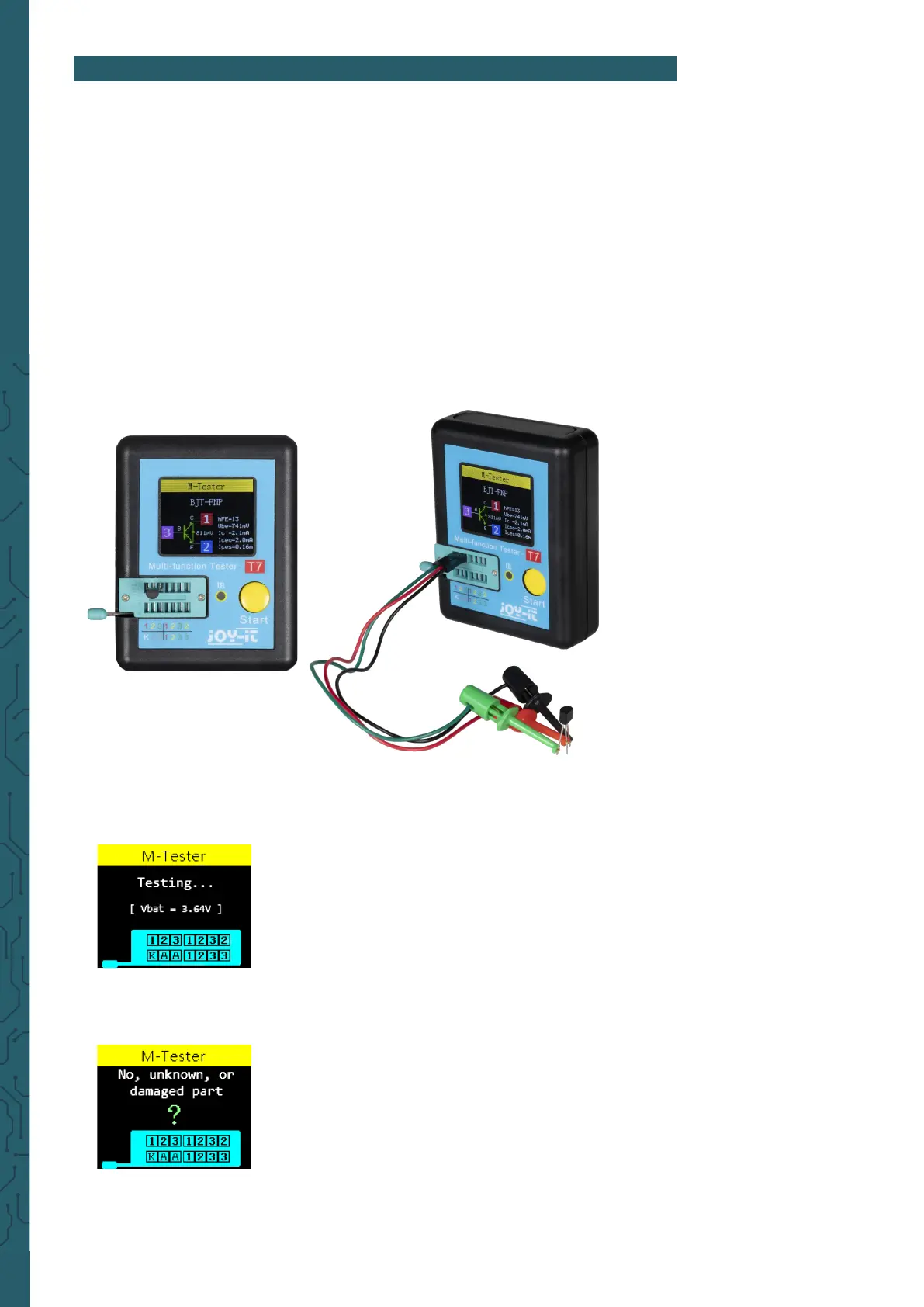

You can either plug the component directly into the terminals of the
device or use the cable clamps provided.
When you have connected your component, press down the lever and
start the measurement with the start button.
If no component or a defective component has been connected, or the
component has been connected incorrectly, the following message is
displayed on the screen.
