4. INITIAL OPERATION

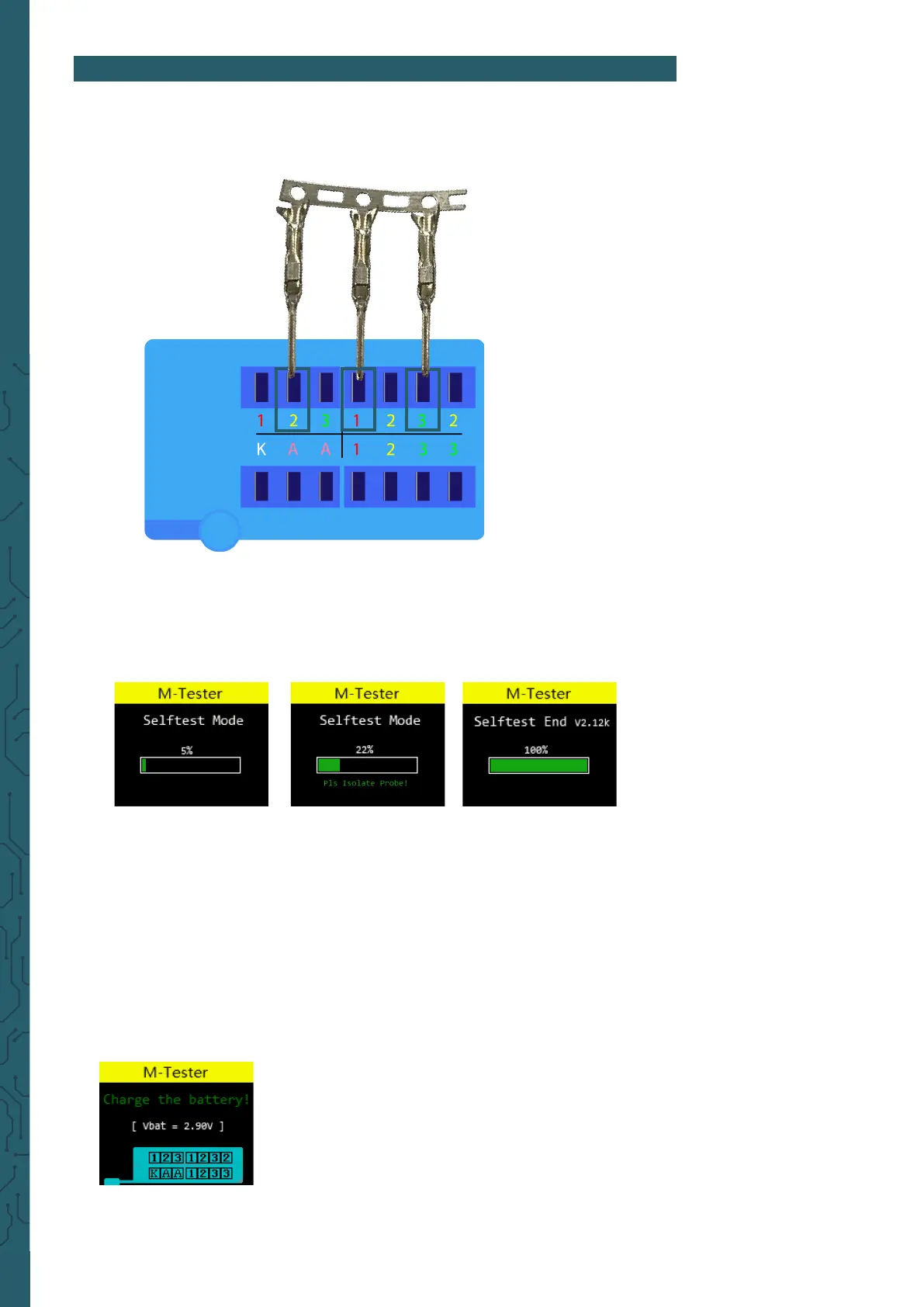

When you start the measuring device for the first time, you should first
perform a self-test of the device. For this purpose, you must short-circuit
the slots 1, 2 and 3. You do this as follows:
Now press Start to perform the self-test. You will be asked by the device
at approx. 22% to remove the component so that the self-test can be
completed successfully. Now you can start measuring your components.
You start the measuring process with the Start button.
A 3.7 V battery with about 300 mAh is built into the multifunction tester.
You can charge it with microUSB and a 5 V power supply. The LED shows
the
status of the battery. That means it shines red when the battery is
charging and green when the battery is fully charged.
The battery of this measuring device is also measured during each com-
ponent measurement. Therefore, the residual voltage of the battery is
also displayed during each measurement.
This residual voltage is displayed with Vbat = …V.
The device will also tell you when the battery needs to be charged again.
This device will automatically turn o aer 20 seconds of inactivity. You
can also turn it o manually, by pressing and holding the Start button.
Pressing and holding the Start button for 3 seconds will put the device
into standby mode. Holding for 5 seconds will turn the device o.
