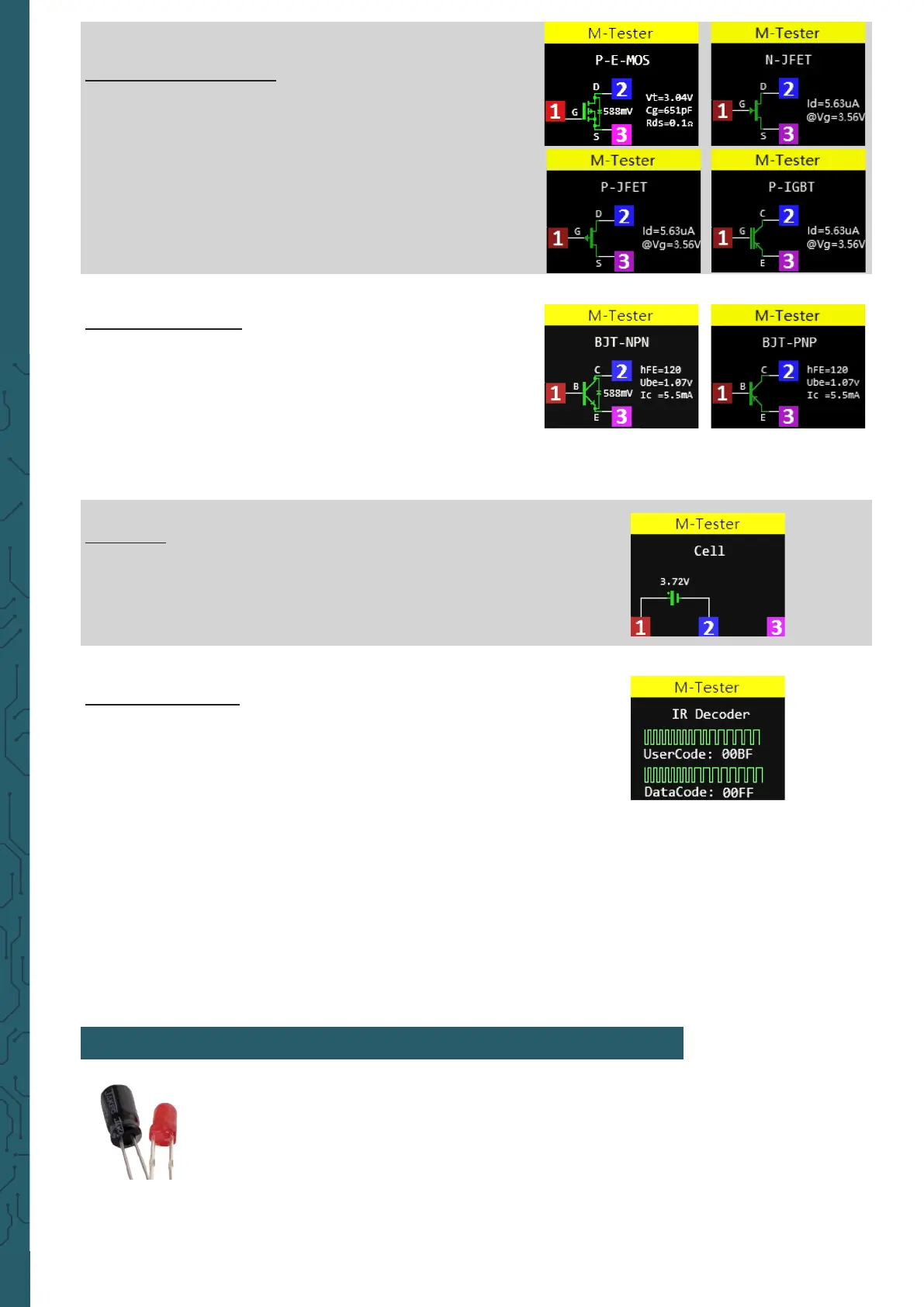

Field eect transistor
Vt - threshold voltage
Cg - gate capacity
Rds - drain source resistance
Uf - forward voltage
@Vg - gate voltage
Here the multifunction tester can distinguish between
N-E-MOS, P-E-MOS, N-MOS, P-MOS, N-JFET, P-JFET,
N-IGBT and P-IGBT.
Bipolar transistor
hFE - current amplification factor
Ube - base voltage
Ic - collector current
Uf - forward voltage
Here the multifunction tester can distinguish between
BJT-NPN, BJT-NPN with diode, BJT-PNP and BJT-PNP
with diode.
Batteries
The battery voltage is displayed here.
Attention! The battery must have less than 4.5 V,
otherwise the multifunction tester may be damaged!
Infrared-Decoder
The infrared decoder is located next to the start button
and does not need to be activated separately. You can
simply e.g. activate your infrared remote control in front
of the device, which decodes it immediately. You can
then see the UserCode and the DataCode in hexadecimal
format on the screen. The UserCode is the specific code
of the remote control you are using and the DataCode is
the code of the button you pressed.
However, only the NEC protocol (which is used by many manufacturers) can be decoded.
A capacitor and an LED are included in the delivery, you can use these for first measu-
rements with your LCR meter to get familiar with the device.
6. EXAMPLE COMPONENTS
